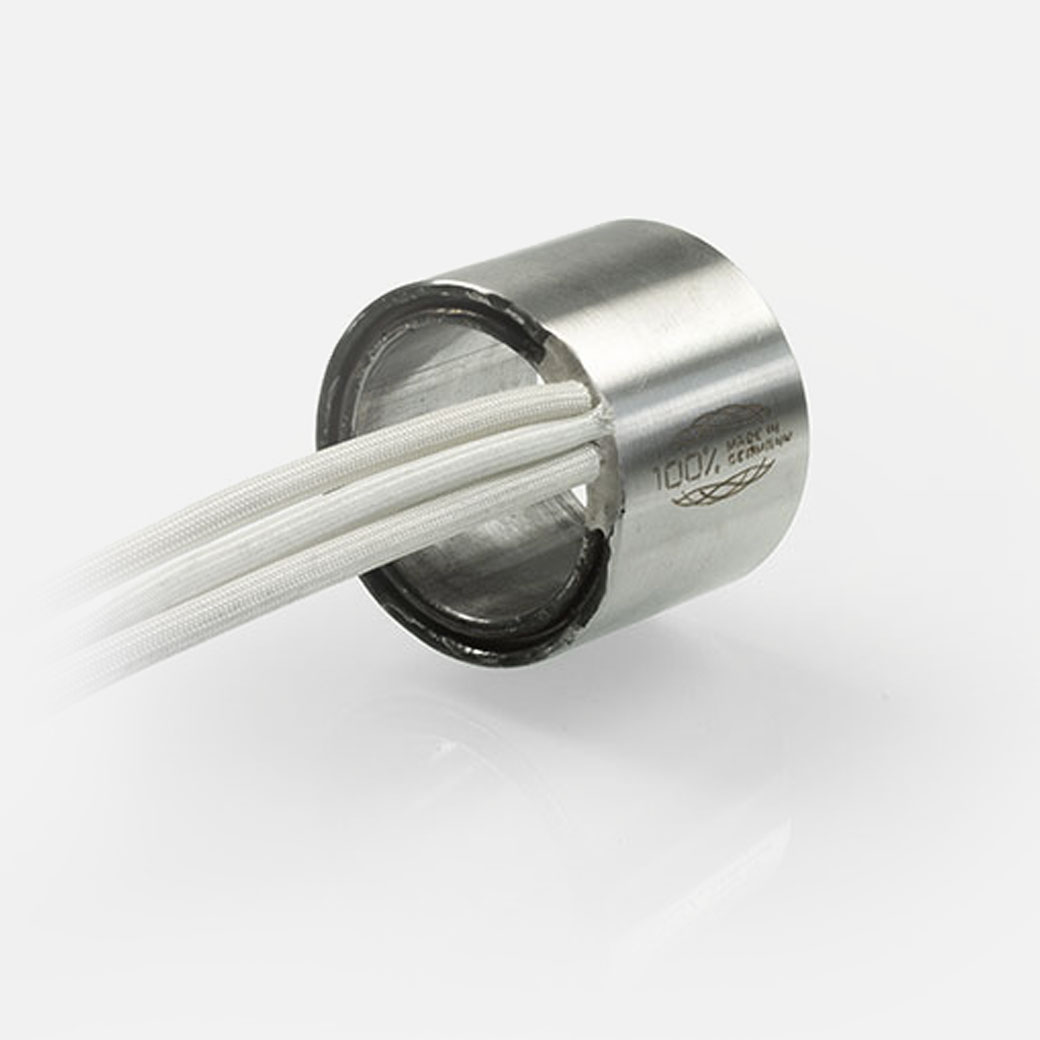

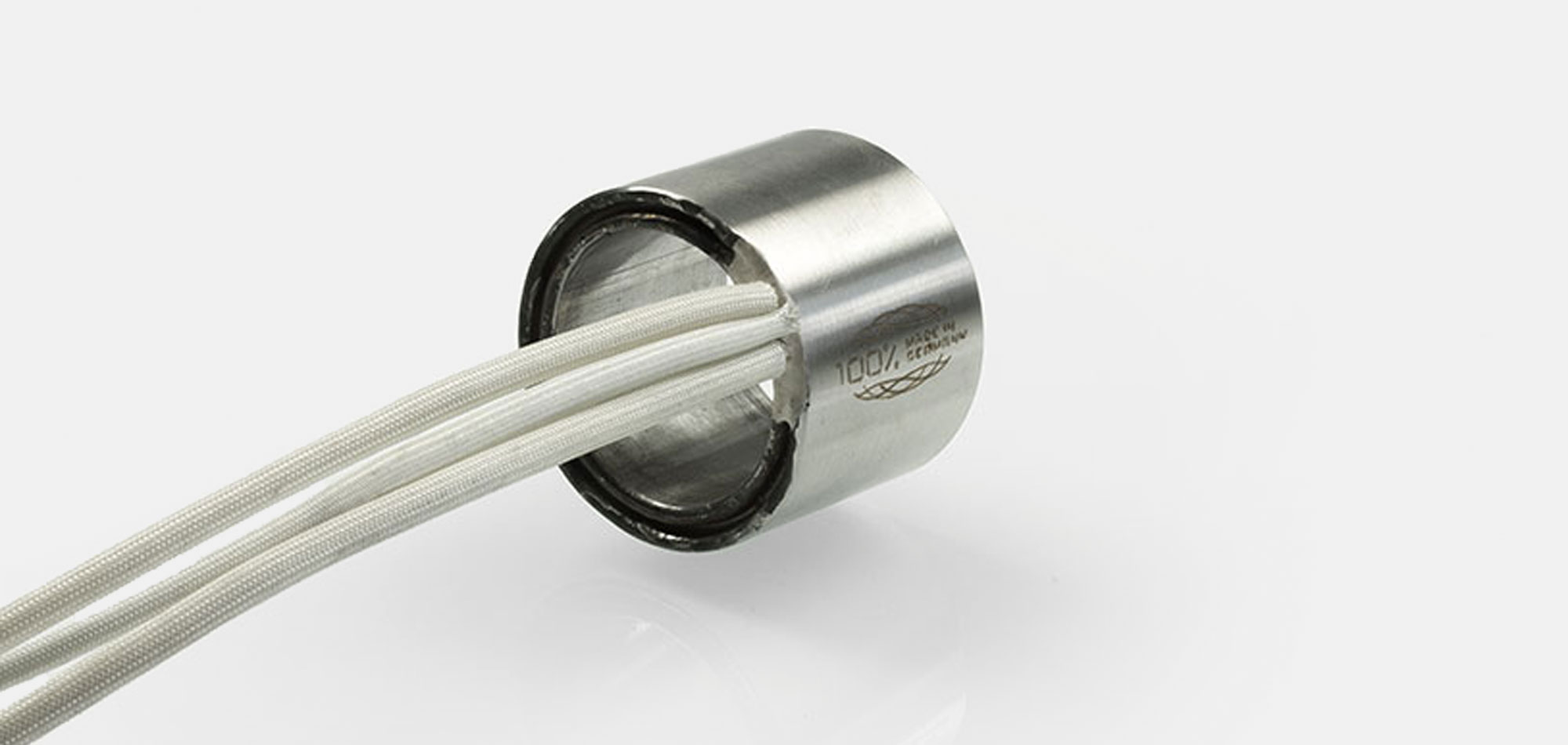

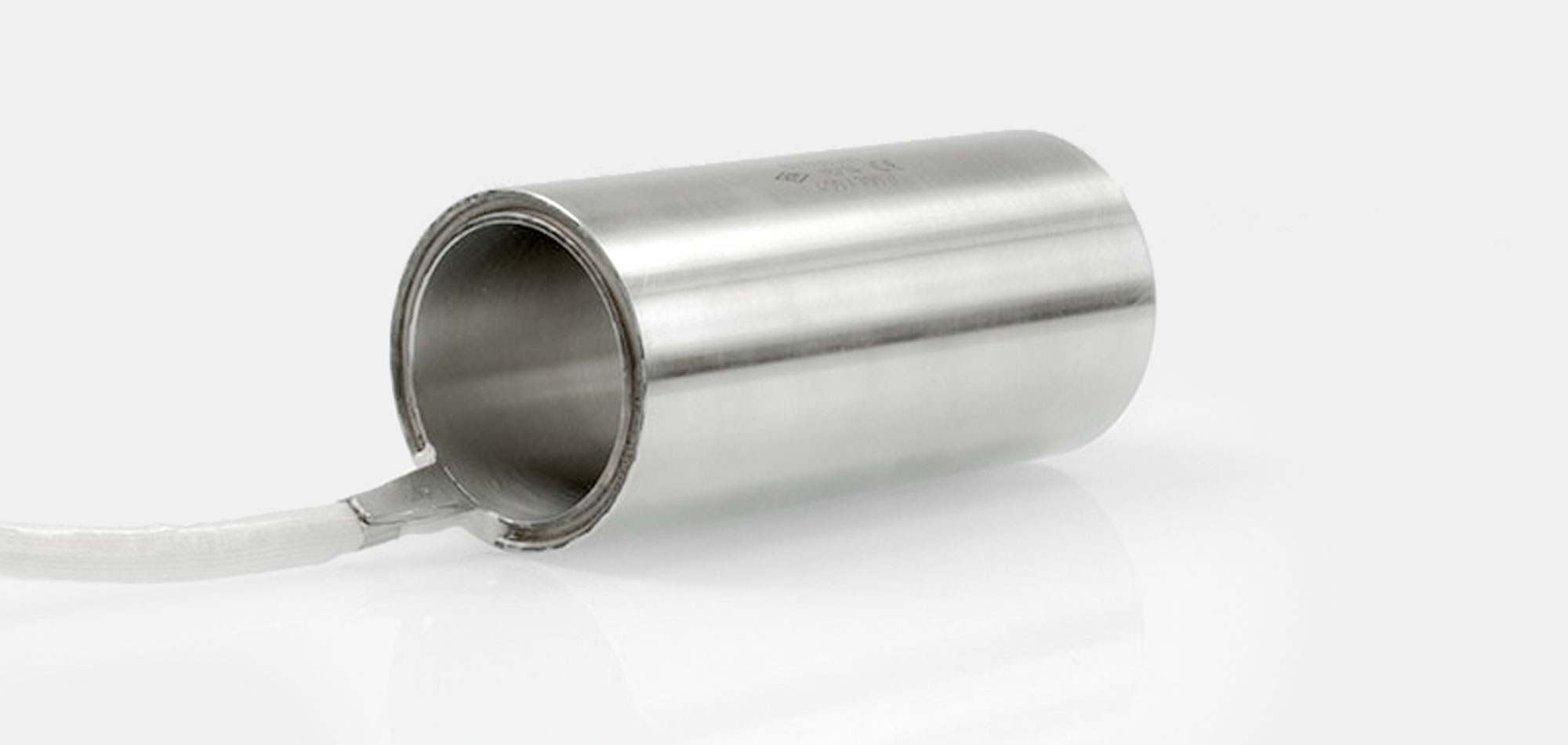

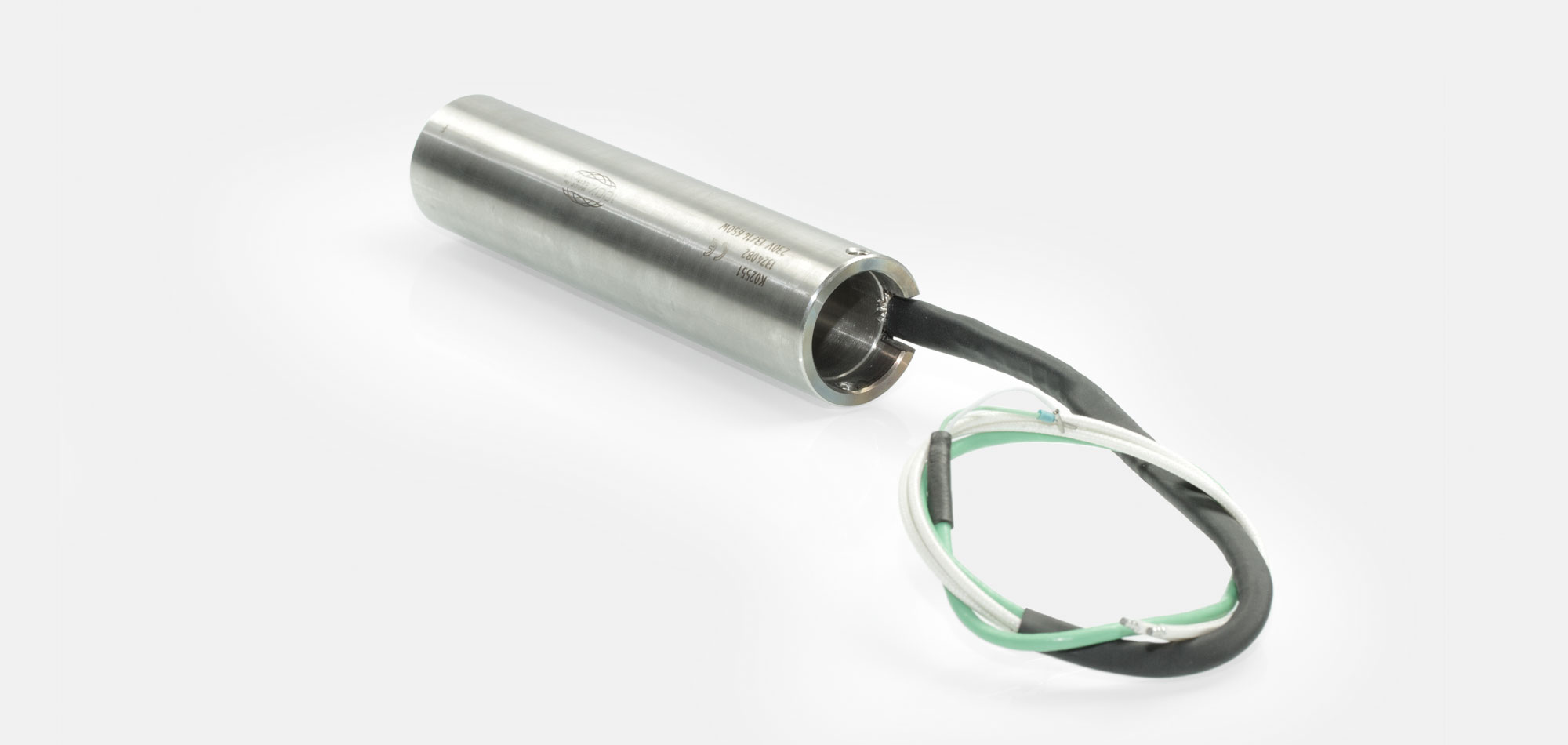

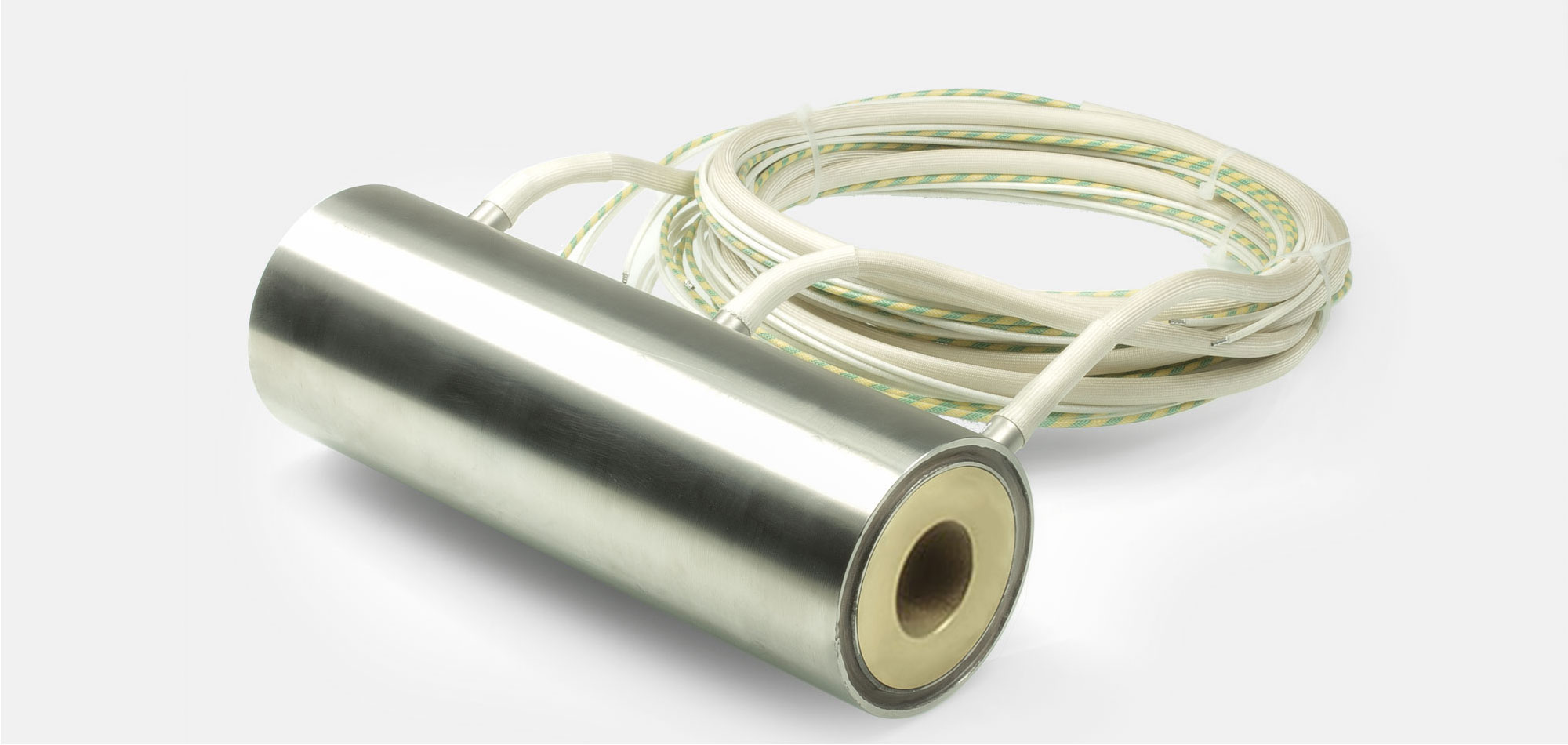

Tubular Cartridge Heaters

RPM/RDO-RP/RPO

APPLICATIONS

Tubular Cartridge Heaters are the ideal heating for injection moulding tools. They are suitable for the heating of spigot automats and for mandrel heaters, e.g. with tube extrusion. Further to this Tubular Cartridge Heaters find their application within hot runner systems, at machinery nozzles and within die-cast production.

Options

  • various dimensions (Ø/length)
  • voltage and wattage variations
  • various lengths and types of leads
  • other capacity tolerances
  • conical surfaces
  • with removal and assembling aid
  • with connection pins and plane front side
  • with capacity distribution
  • up to 600°C
    operating temperature
  • 5-10 mm
    wall thickness per type
  • up to 15 W/cm²
    surface load

RPM/RDO/RP/RPO Tubular Cartridge Heater

Material

  • Stainless steel 1.4541 or 1.4301

Connection options

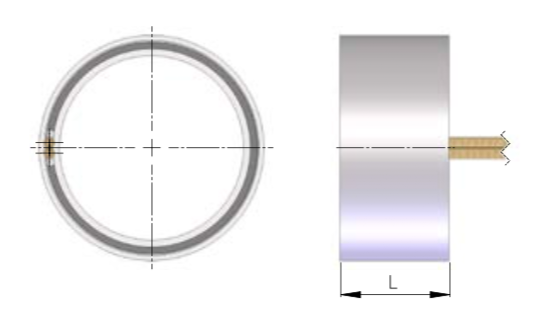

  • fig. 1: frontal
    fig. 1: frontal

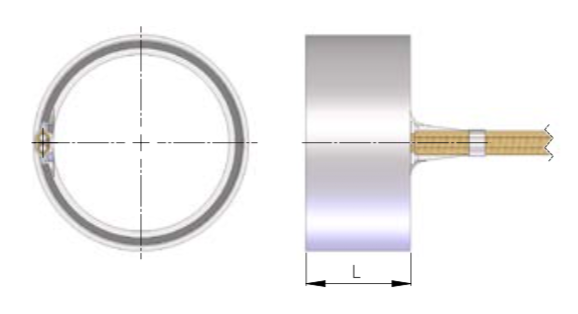

  • fig. 2: frontal + strain relief
    fig. 2: frontal + strain relief
  • fig. 3: axial flat cap option 3
    fig. 3: axial flat cap option 3
  • fig. 4: tangential flat cap option 4
    fig. 4: tangential flat cap option 4
  • fig. 5: 45° tangential RPM cap option 6
    fig. 5: 45° tangential RPM cap option 6
  • fig. 6: radial RPM cap option 7
    fig. 6: radial RPM cap option 7
  • fig. 7: 45° axial RPM cap option 8
    fig. 7: 45° axial RPM cap option 8
  • fig. 8: 45° axial nozzle cap
    fig. 8: 45° axial nozzle cap
  • fig. 9: 5° axial nozzle cap
    fig. 9: 5° axial nozzle cap

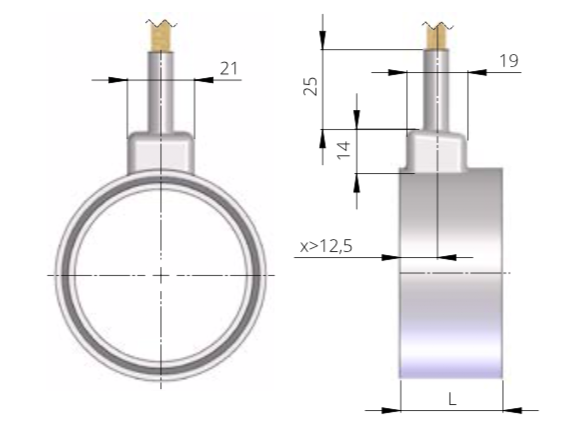

  • fig. 10: radial nozzle cap
    fig. 10: radial nozzle cap

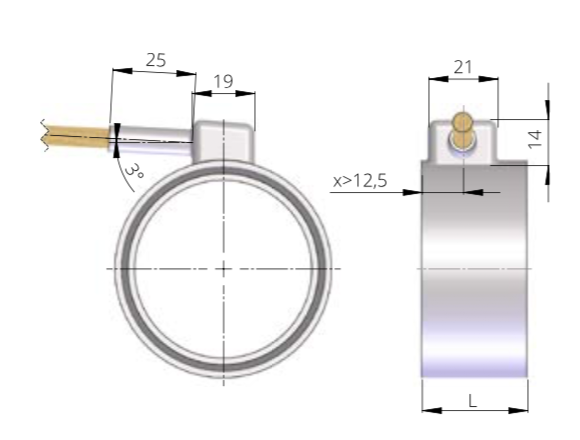

  • fig. 11: tangential nozzle cap
    fig. 11: tangential nozzle cap



  RPM/RDO/RP/RPO
outer diameter ± 0,35 mm
inner diameter H12 (depends on the length)
length tolerance L 30 - 100 mm - ca. ± 3 mm
L 101 - 150 mm - ca. ± 4 mm
L 151 - 300 mm - ca. ± 5 mm
L 301 - 400 mm -       ---

Cable exit options

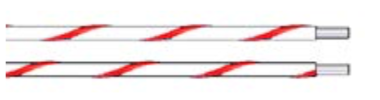

  • fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700)
    fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700)
  • fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700) with earth protection (SL)
    fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700) with earth protection (SL)

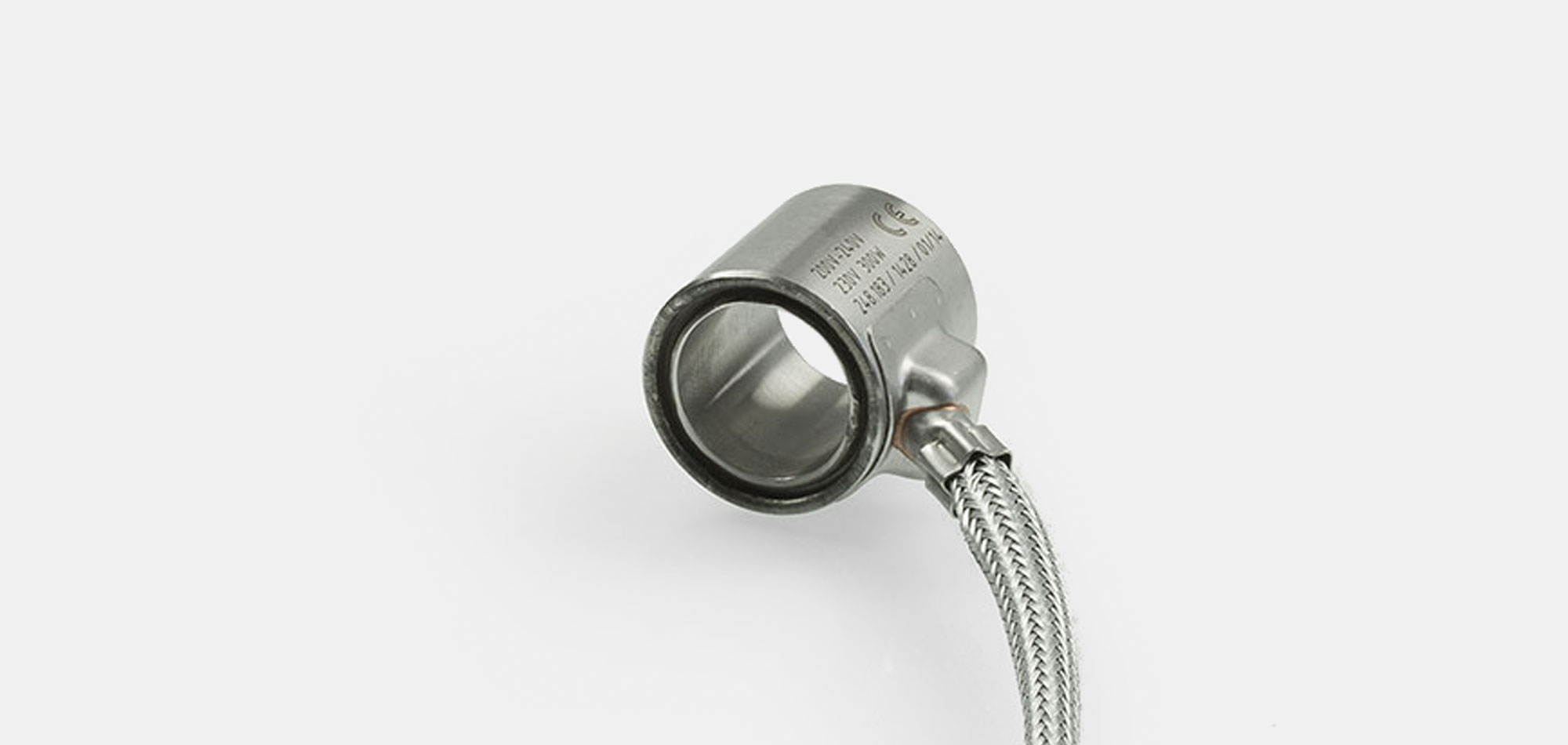

  • 3-core cable and metal braided hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and metal braided hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • 3-core cable and spiral hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and spiral hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • 3-core cable and wave hose steel or stainless steel + earth protection up to 400 °C / 700 °C
    3-core cable and wave hose steel or stainless steel + earth protection up to 400 °C / 700 °C
  • fibreglass insulated nickle leads additional covered with un-coated fibreglas hose (400 °C)
    fibreglass insulated nickle leads additional covered with un-coated fibreglas hose (400 °C)
  • teflon insulated leads (PTFE), 2- or 3-core, temperature-stable up to max. 260 °C
    teflon insulated leads (PTFE), 2- or 3-core, temperature-stable up to max. 260 °C
