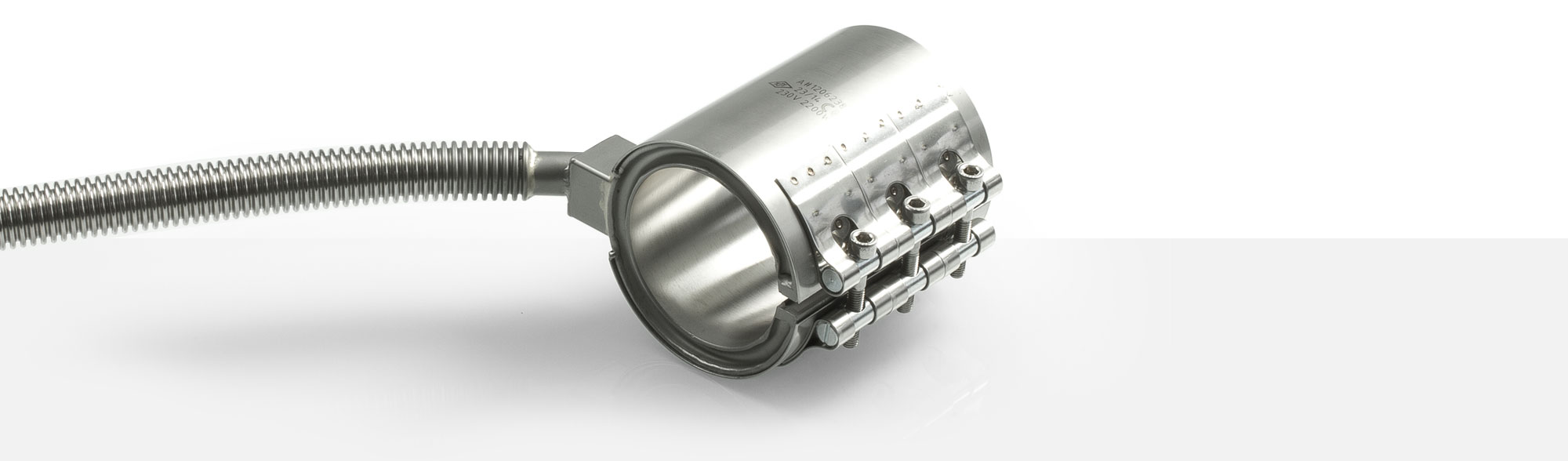

Tubular Cartridge Heaters

RP die cast

APPLICATIONS

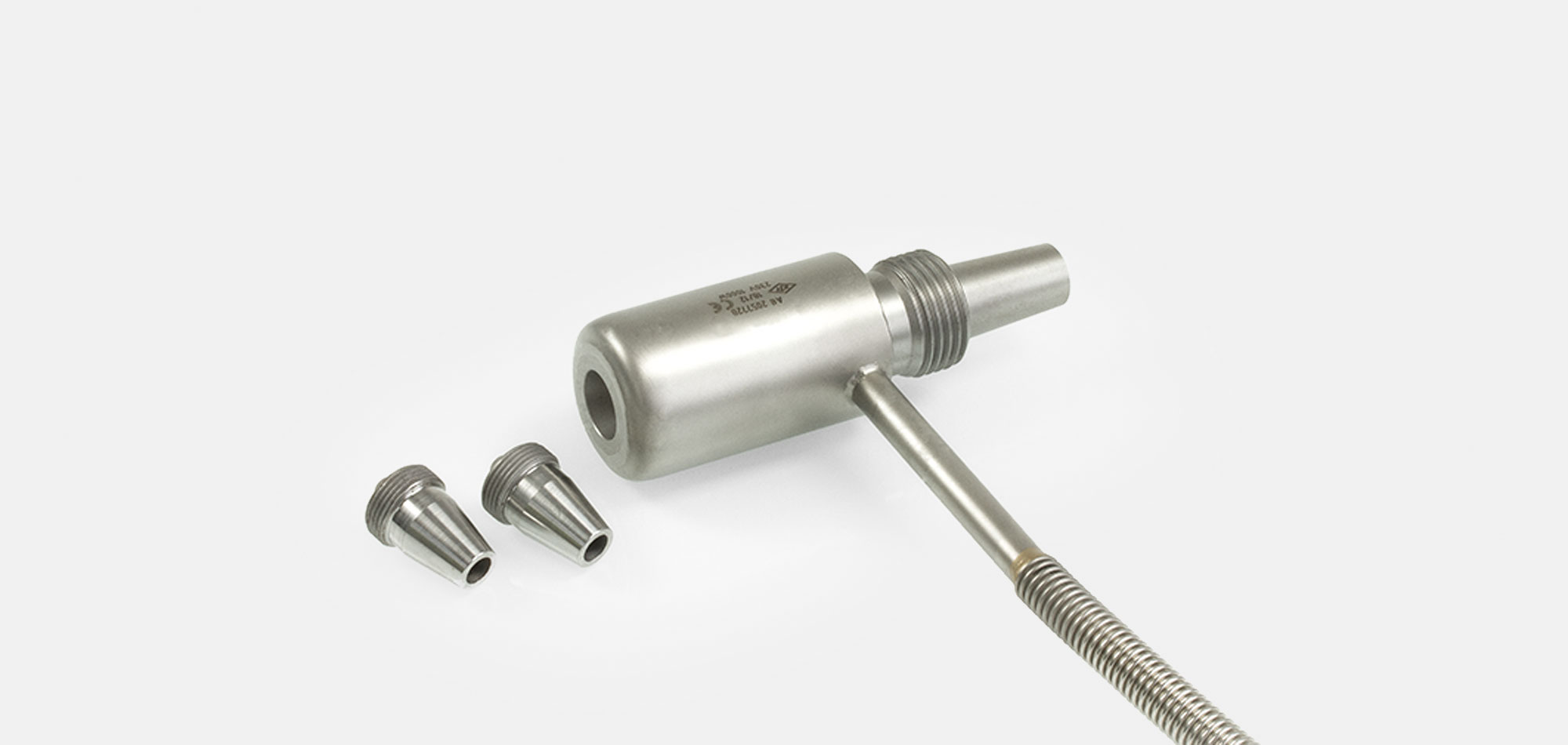

Tubular Cartridge Heaters are the ideal heating for injection moulding tools. They are suitable for the heating of spigot automats and for mandrel heaters, e.g. with tube extrusion. Further to this Tubular Cartridge Heaters find their application within hot runner systems, at machinery nozzles and within die-cast production.

Options

various dimensions (Ø/length)
voltage and wattage variations
various lengths and types of leads
other capacity tolerances
conical contact surface
with removal and assembling aid
with connection pins and plane front side
with capacity distribution
leads with various plugs
with integral Thermocouple or Mineral Insulated Thermocouple
with insulating sleeves

up to 750°C
operating temperature
5-10 mm
wall thickness
up to 8 W/cm²
surface load

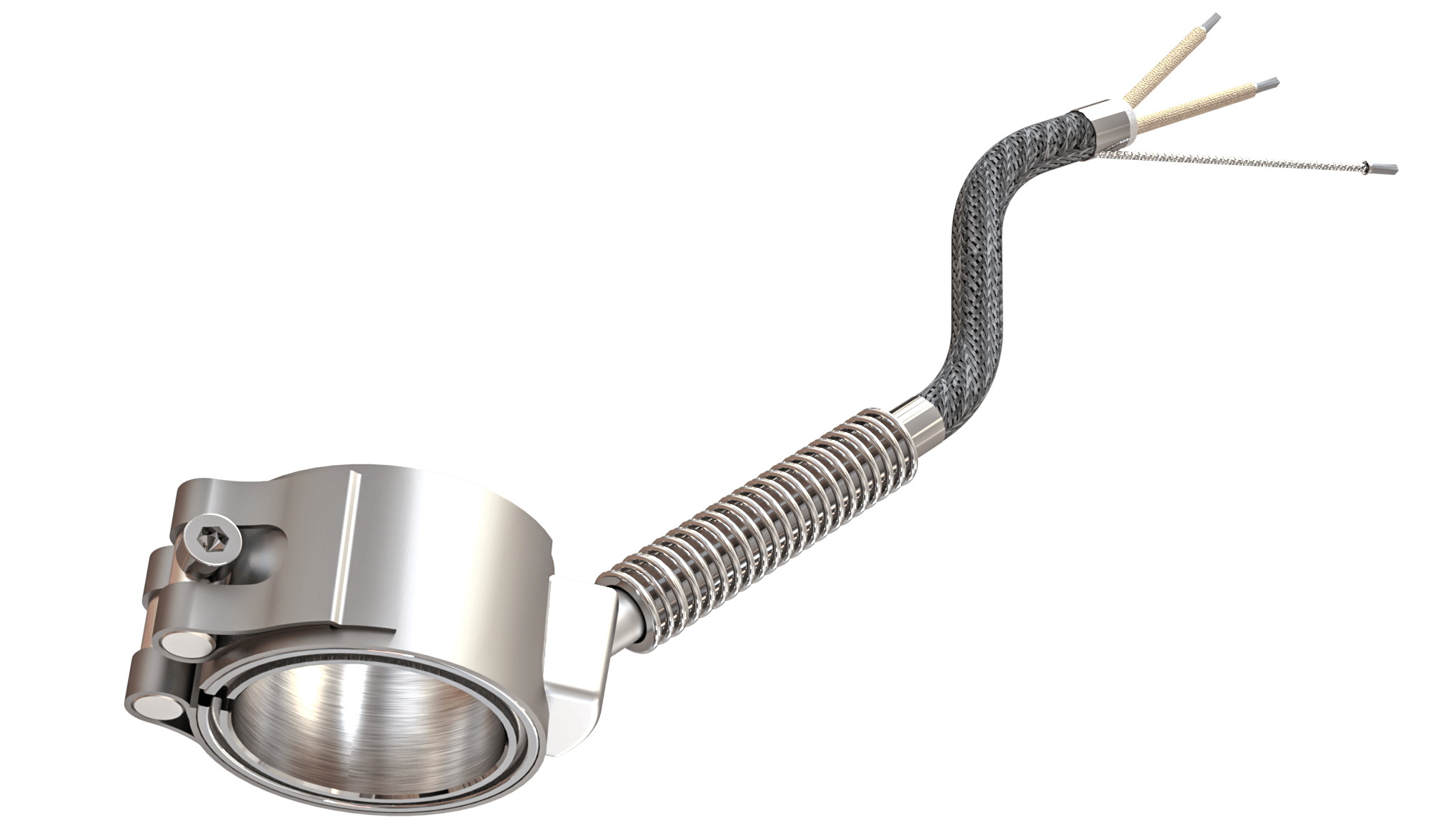

RP Die Cast Tubular Cartridge Heater

Material

stainless steel 1.4541 or 1.4301

Connection options

nozzle cap

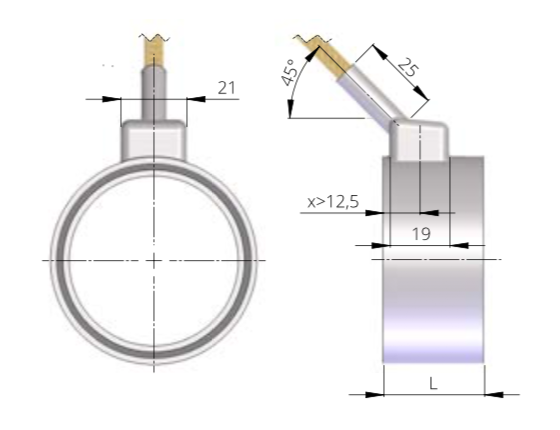

fig. 8: 45° axial nozzle cap

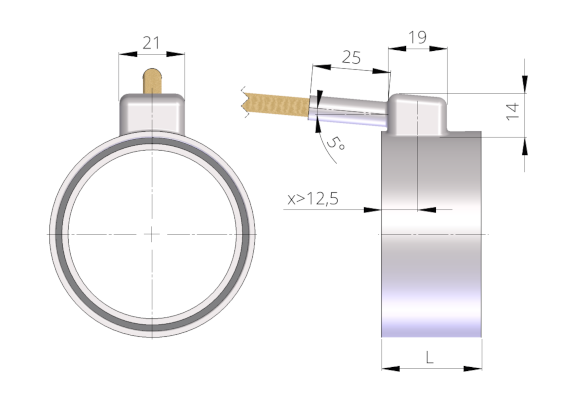

fig. 9: 5° axial nozzle cap

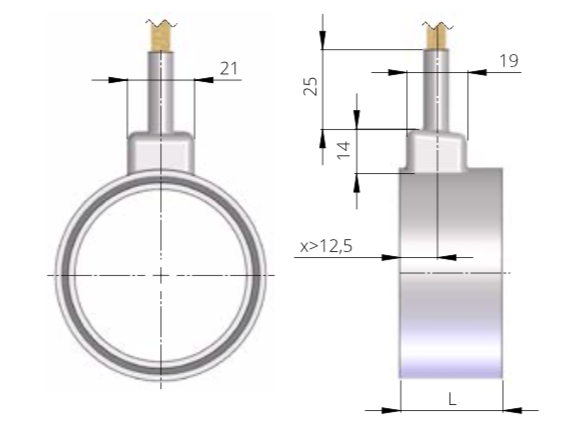

fig. 10: radial nozzle cap

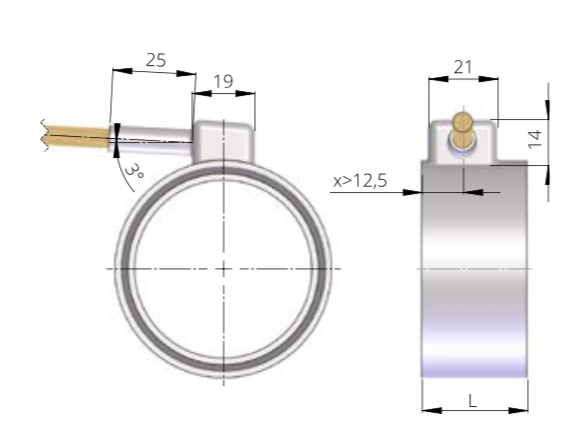

fig. 11: tangential nozzle cap

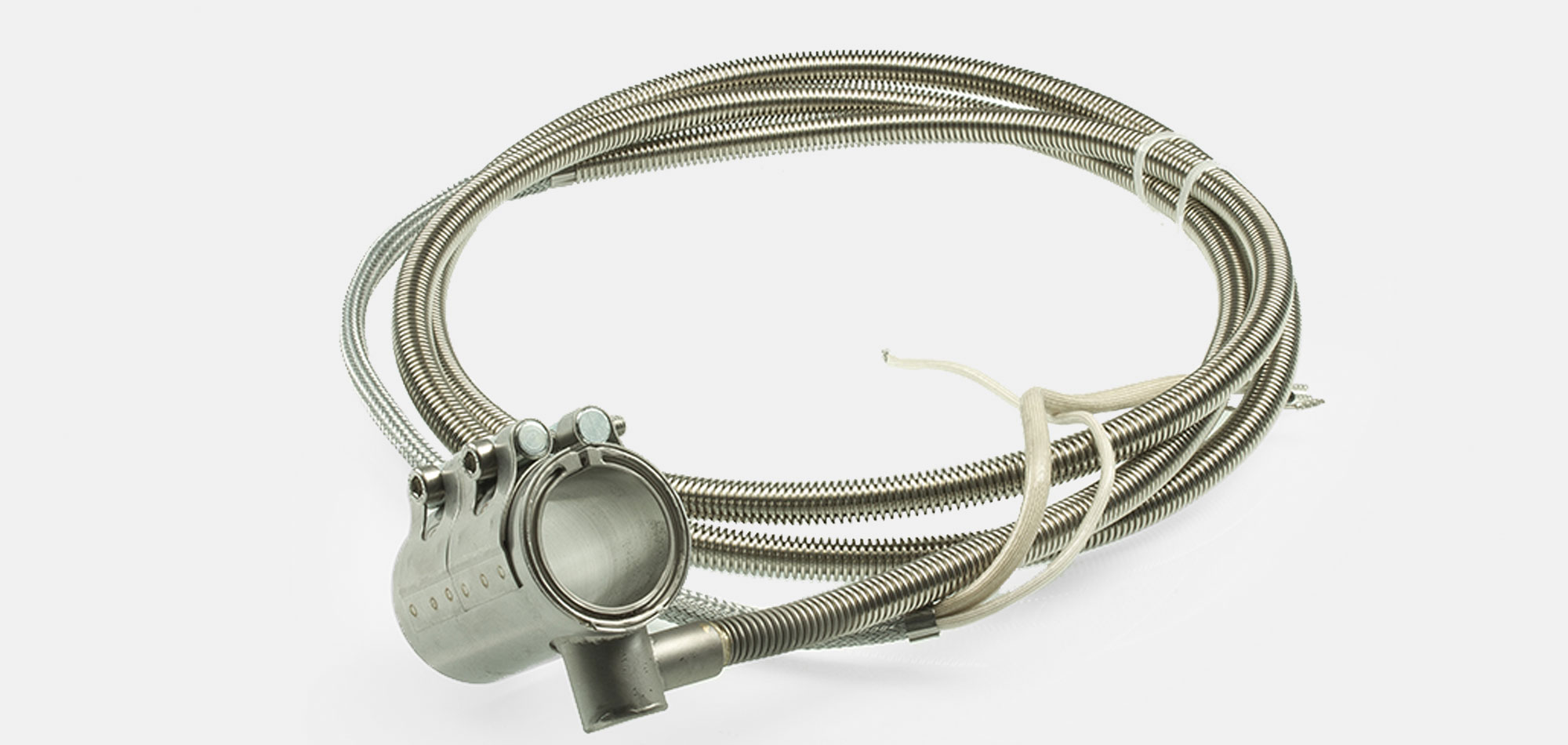

Cable exit options

fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700)
fibreglass insulated nickle leads up to 400 °C (GLS 400) or 700 °C (GLS 700) with earth protection (SL)
3-core cable and metal braided hose steel or stainless steel + earth protection up to 400 °C / 700 °C
3-core cable and spiral hose steel or stainless steel + earth protection up to 400 °C / 700 °C
3-core cable and wave hose steel or stainless steel + earth protection up to 400 °C / 700 °C
fibreglass insulated nickle leads additional covered with un-coated fibreglas hose (400 °C)
teflon insulated leads (PTFE), 2- or 3-core, temperature-stable up to max. 260 °C
