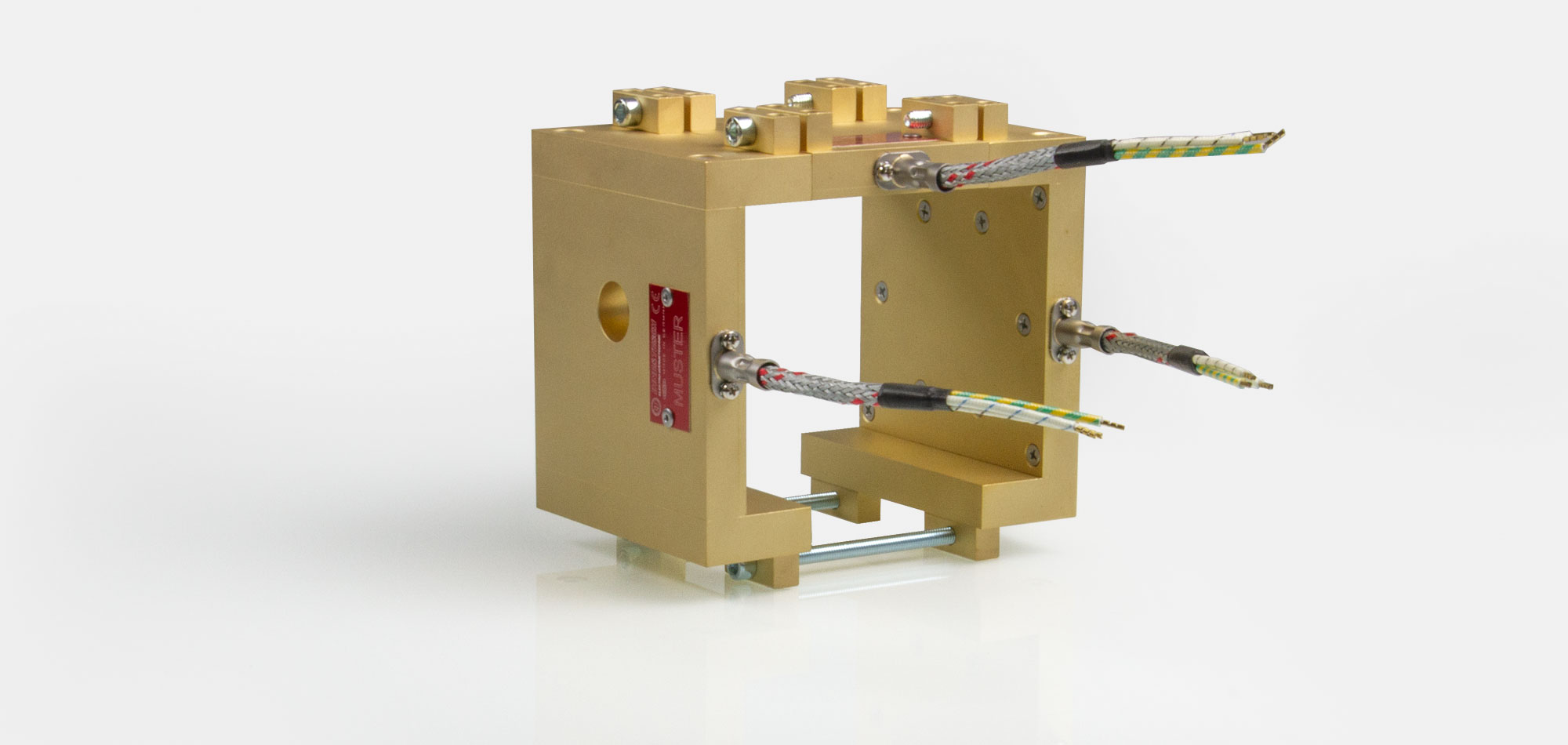

Tool heaters aluminium/brass Compact

FAK/FMK

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C/550°C, extrusion, injection molding, plastic technology, holes, cutouts, front side connection, energy-efficient, homogeneous heat flow, shape fulfilling contact

APPLICATIONS

FAK/FMK aluminium/brass compact Tool Heaters are used with machinery and tools of the polymer processing industry as well as with other devices with uniform heat demand.

closed/melt dense construction
shape fulfilling contact with superior geometry
perfect heat transfer as well with several holes and cut outs
energy efficient

Options

various dimensions and connection versions
other voltage, single or multi-phase, star or delta connection
with holes and/or thermocouple bridges
with integral Thermocouple (isolated or non isolated) or Resistance Sensor
additional cut outs
additional insulation
with warning sign – “Attention – hot surface”

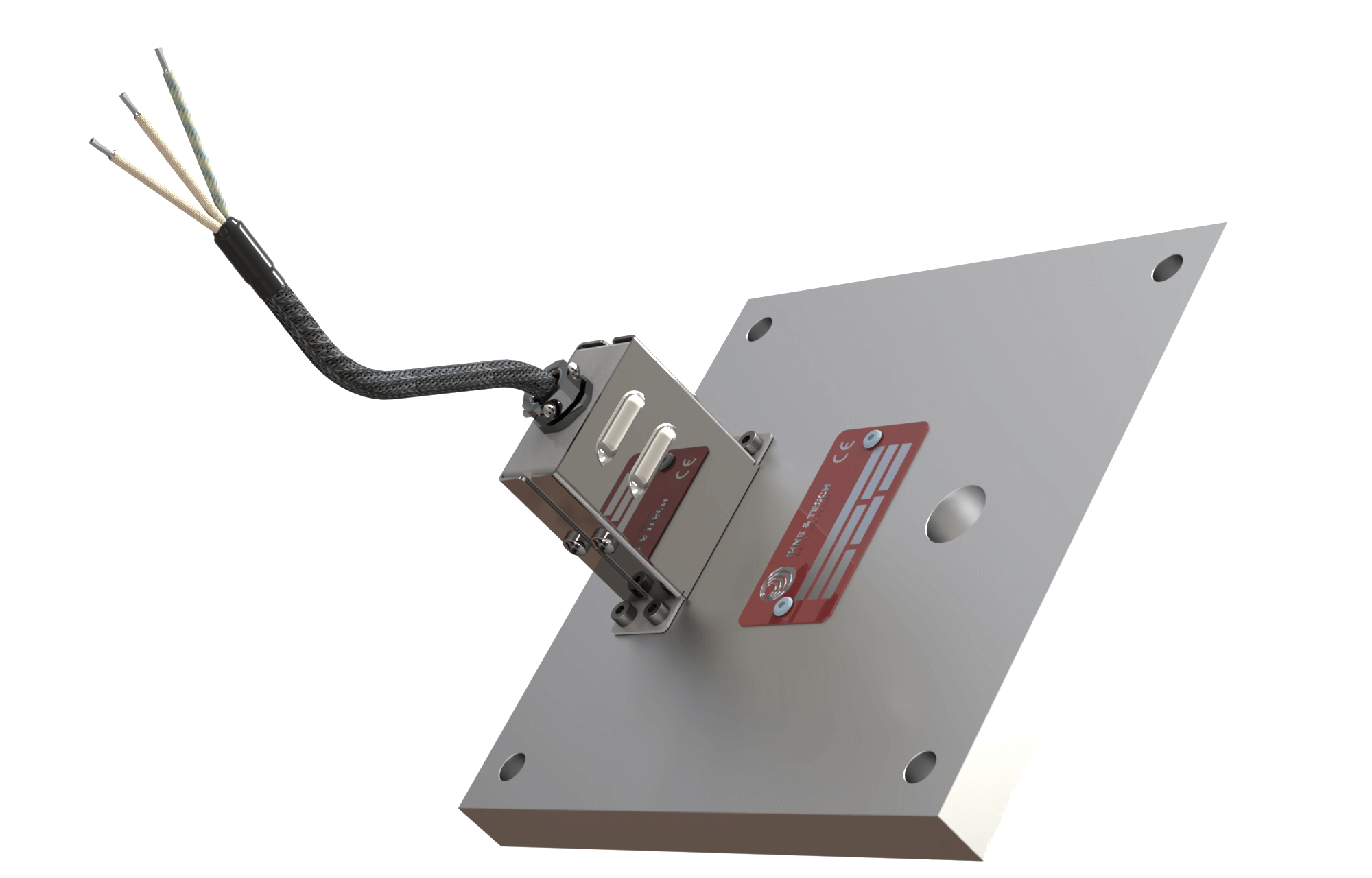

type FAK/FMK: front side connection from 20 mm thickness
with fastening angular

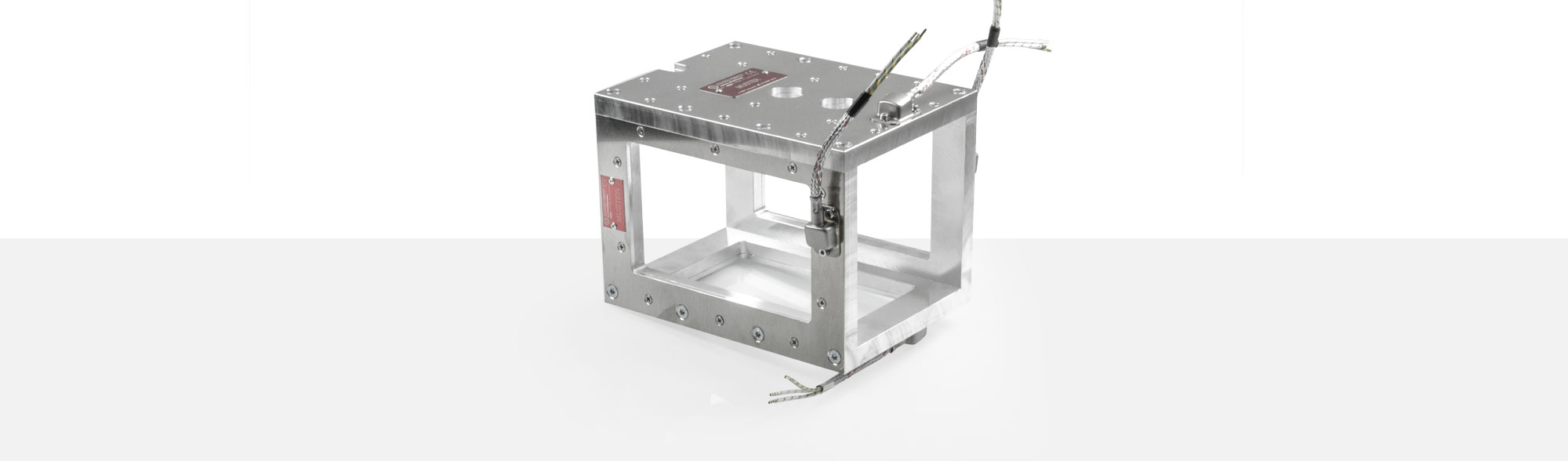

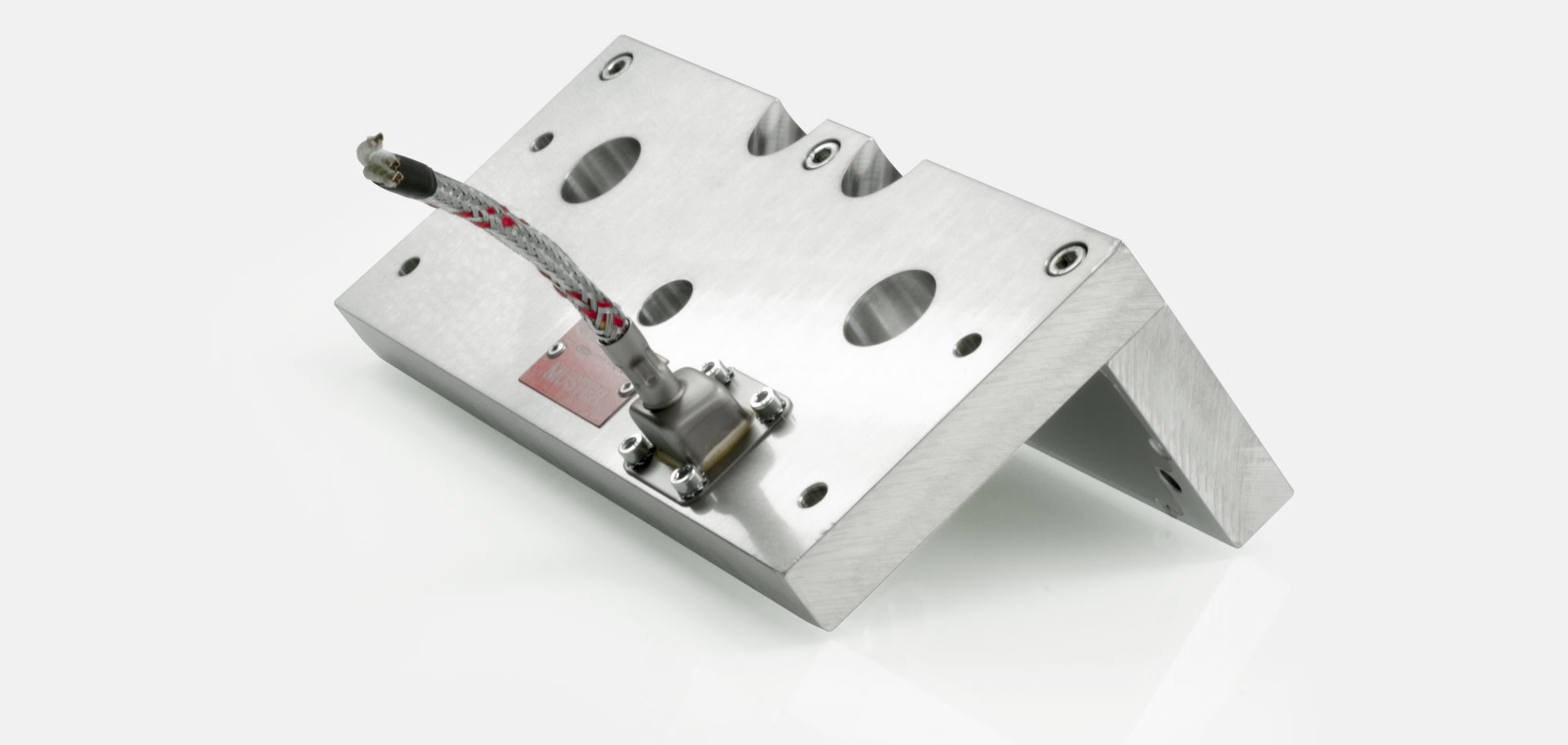

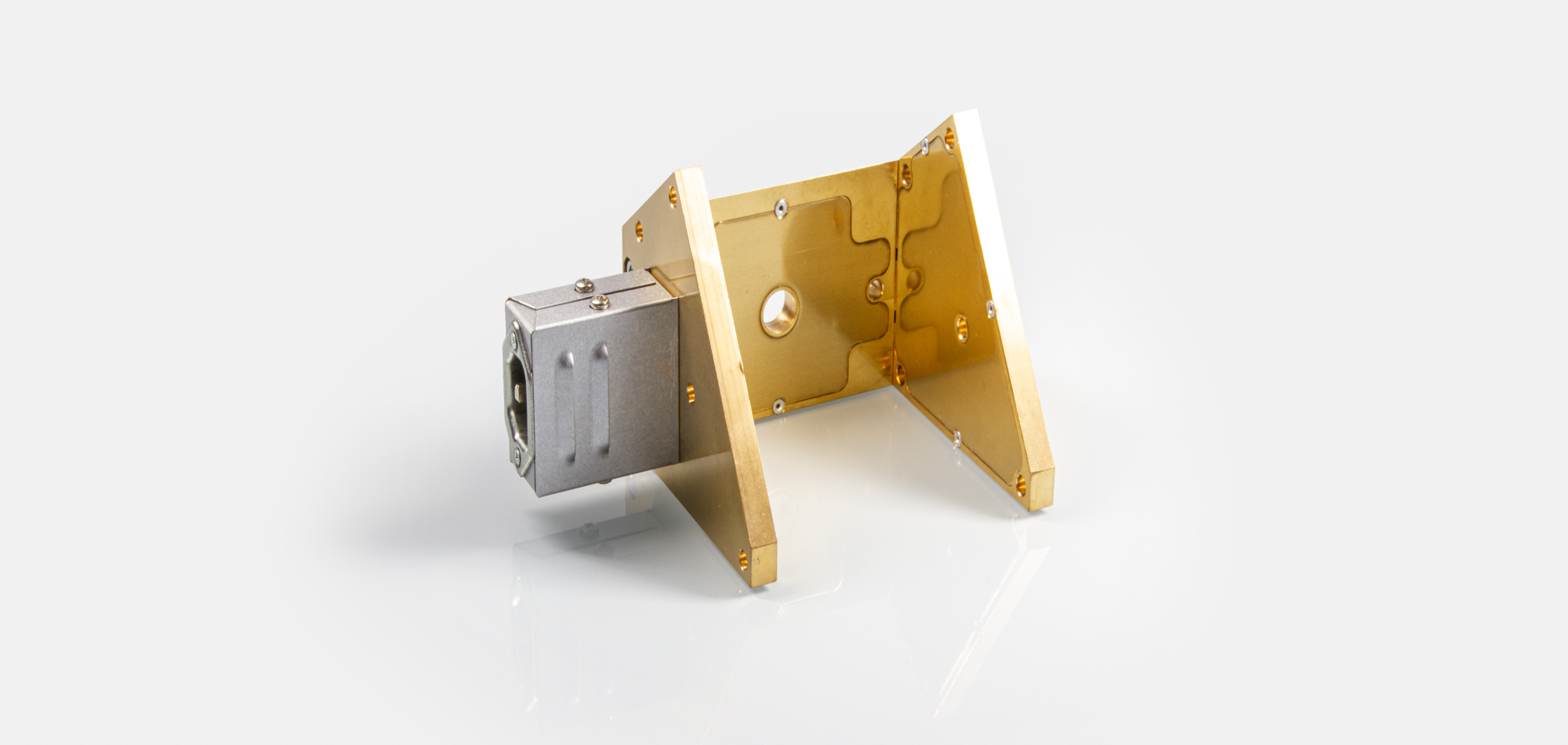

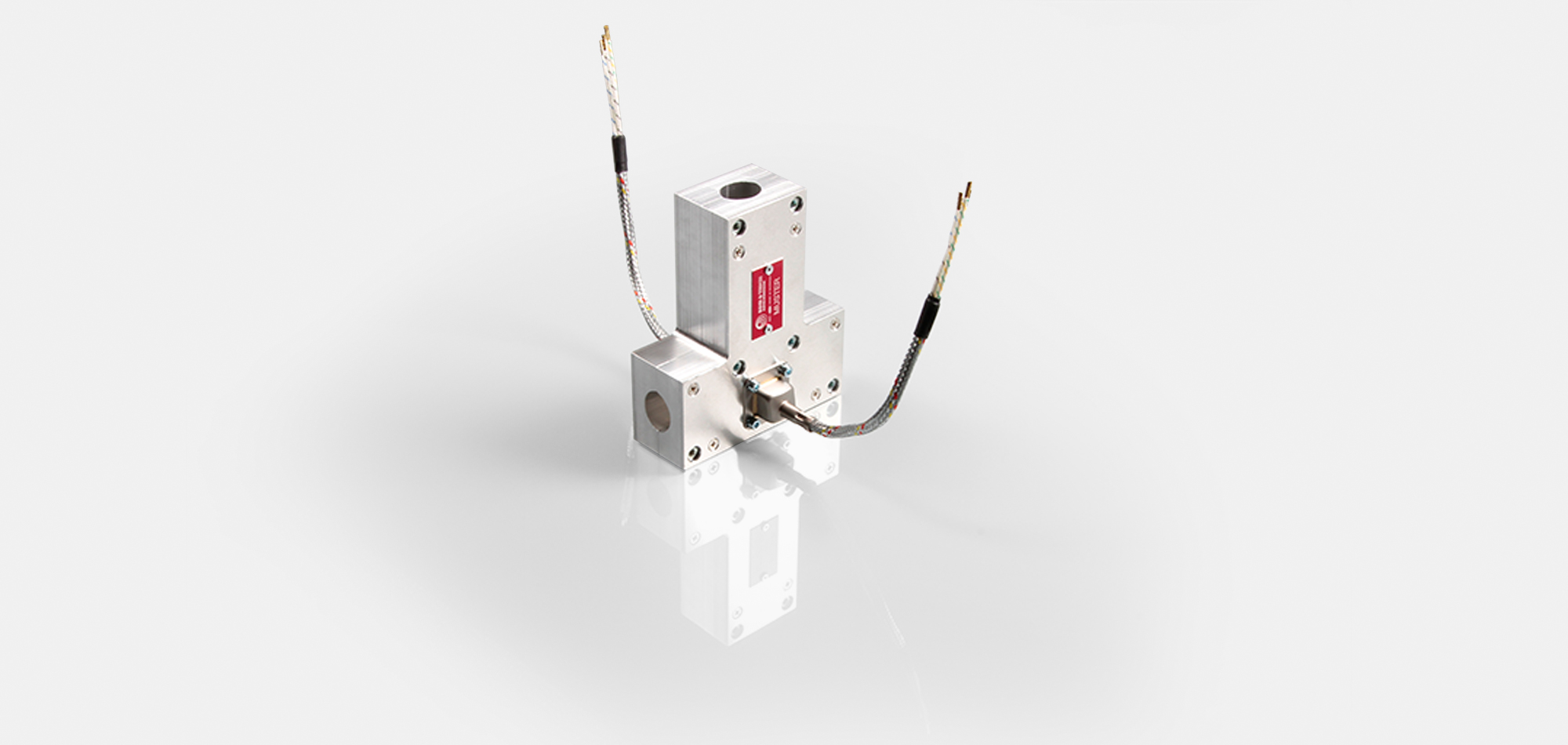

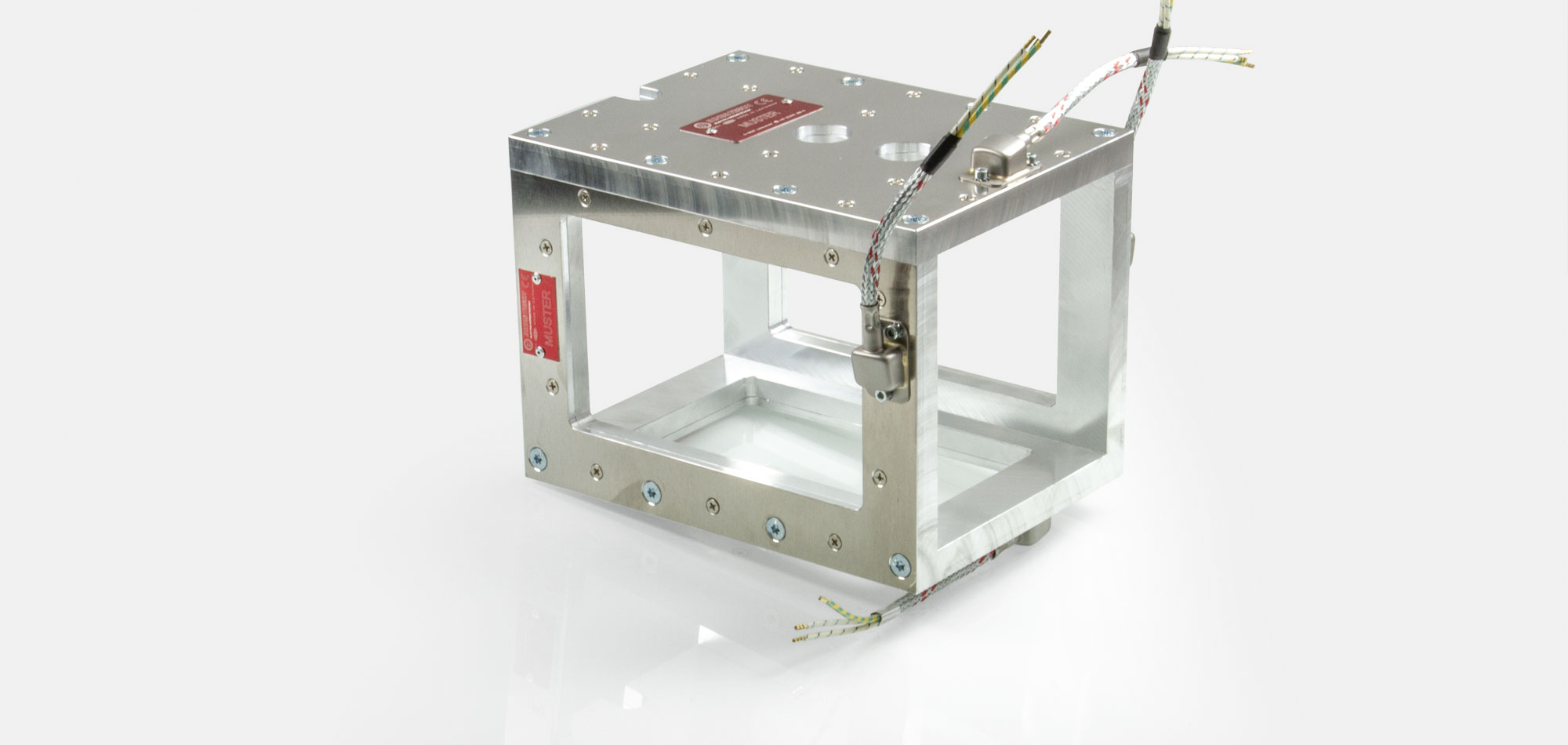

available in all technical possible shapes (round-, profile-, U-/L-shape)
as per drawing, sketch or sample

up to 450°C
operating temperature FAK
up to 550°C
operating temperature FMK
about 12/15/20mm
thickness

FAK/FMK Tool Heater

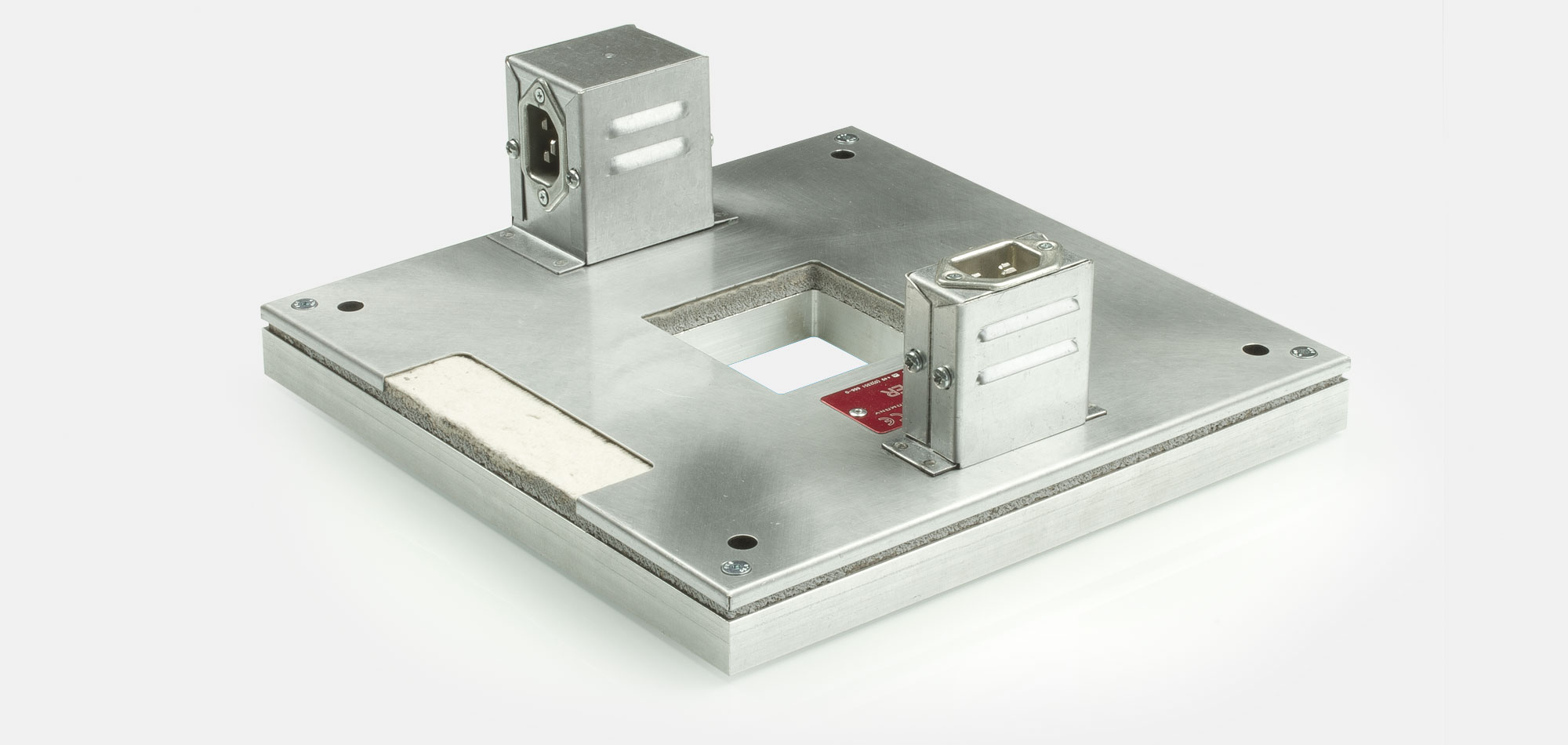

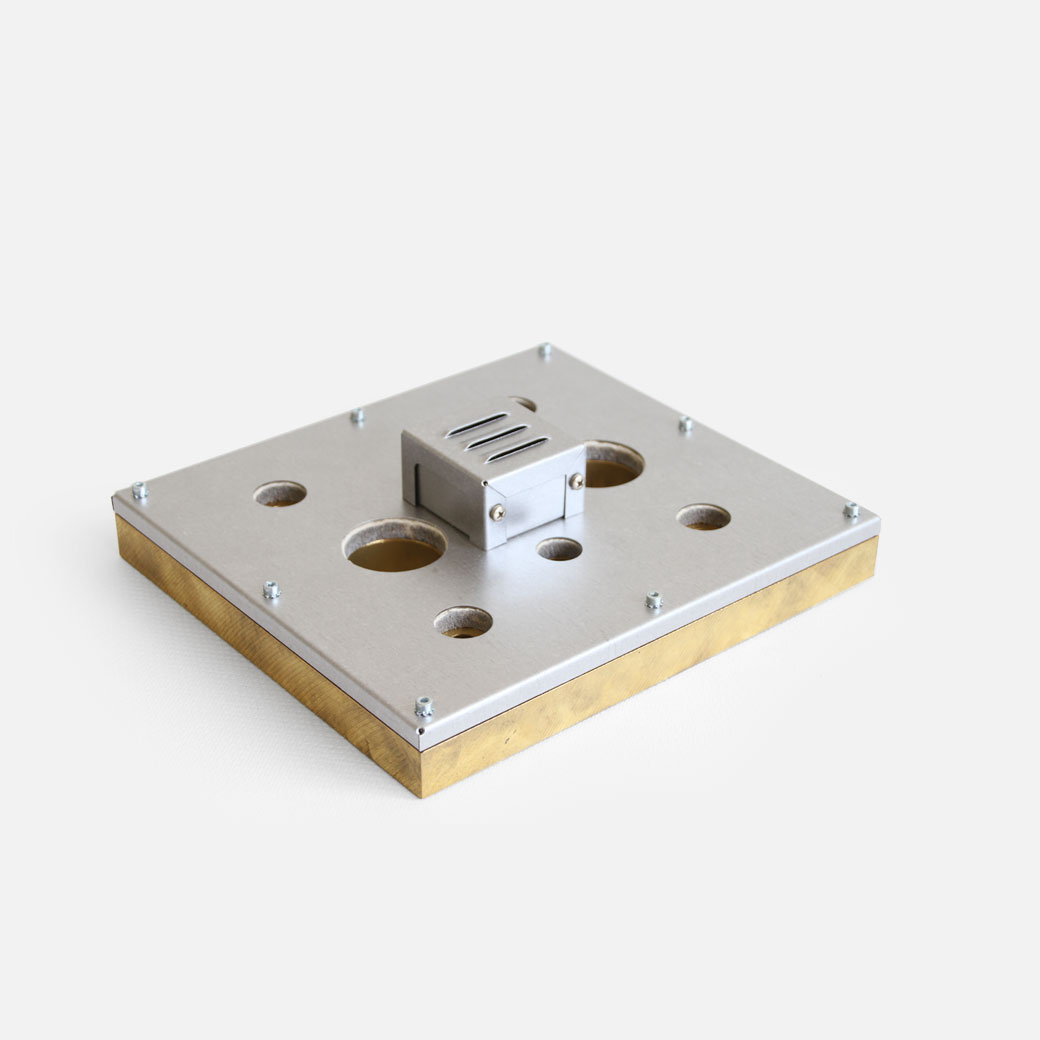

Holes and cut outs

with holes and/or thermocouple bridges
additional cut outs
with thermocouple (with/without potential) or resistance sensor

Dimensions

minimum dimension 80 x 40 mm
maximum dimension 2.000 x 500 mm
according to customer specifications in all technichal shapes (round-, profile-, U-/L-shape)
different dimensions on request
