Tool heaters

BDM/RAM/BM

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

APPLICATIONS

BDM/RAM/BM Tool Heaters are used at injection moulding and extrusion machinery as well as for other devices with superior polymer processing.

Options

various dimensions and connection versions
other voltage, single or multi-phase, star or delta connection
with holes and/or thermocouple bridges
with integral Thermocouple (grounded or not grounded)
additional cut outs
additional insulation
with warning sign – “Attention – hot surface”
RAM: additional, welded reinforce band with sides longer as 500 mm
RAM: in 2parted or 4 parted design (2 or 4 separate connections)
with fastening angular
available in all technical possible shapes (round-, profile-, U-/L-shape)
as per drawing, sketch or sample

up to 450°C
operating temperature
BDM/BM

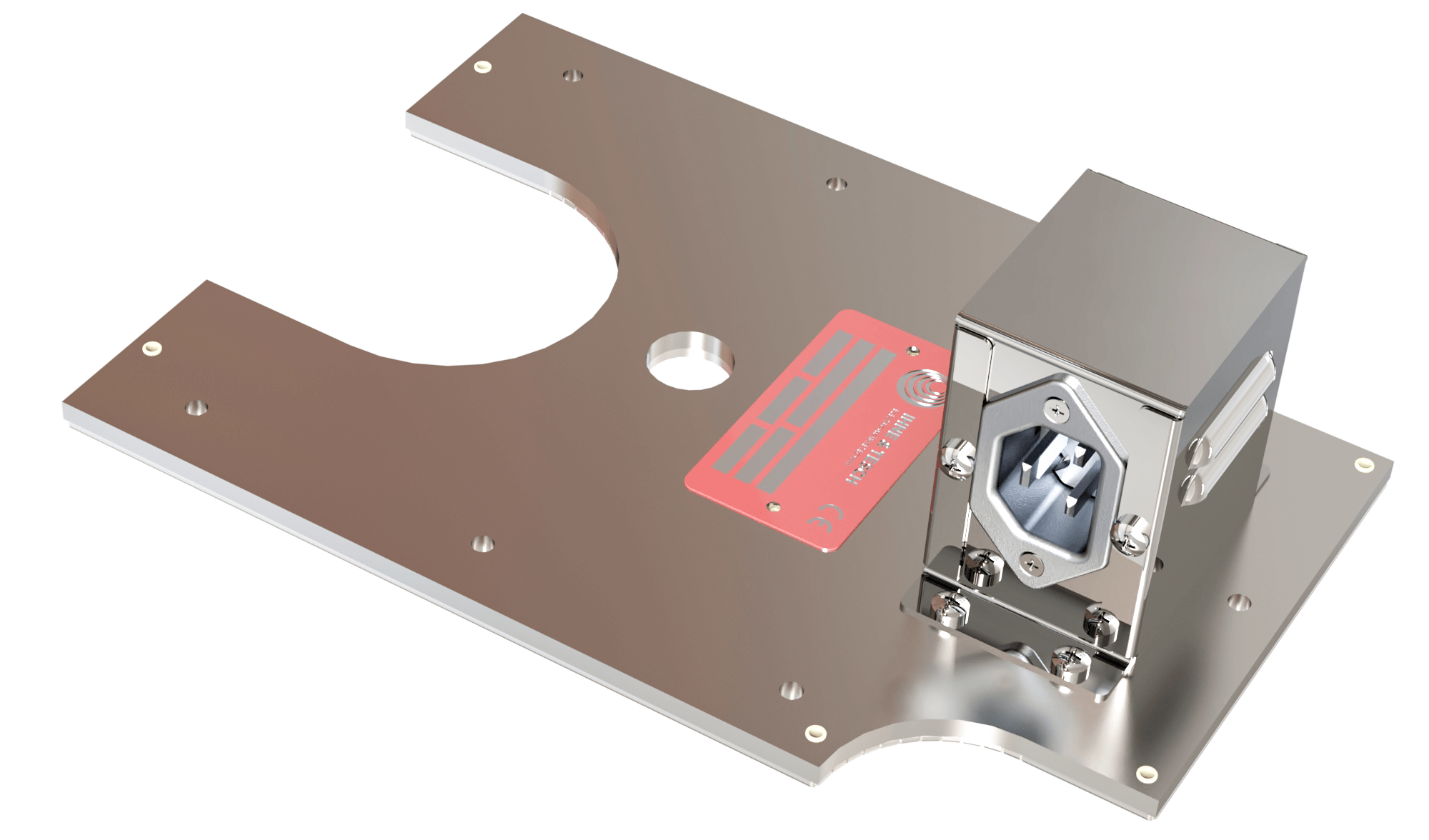

Flat Heater
RAM

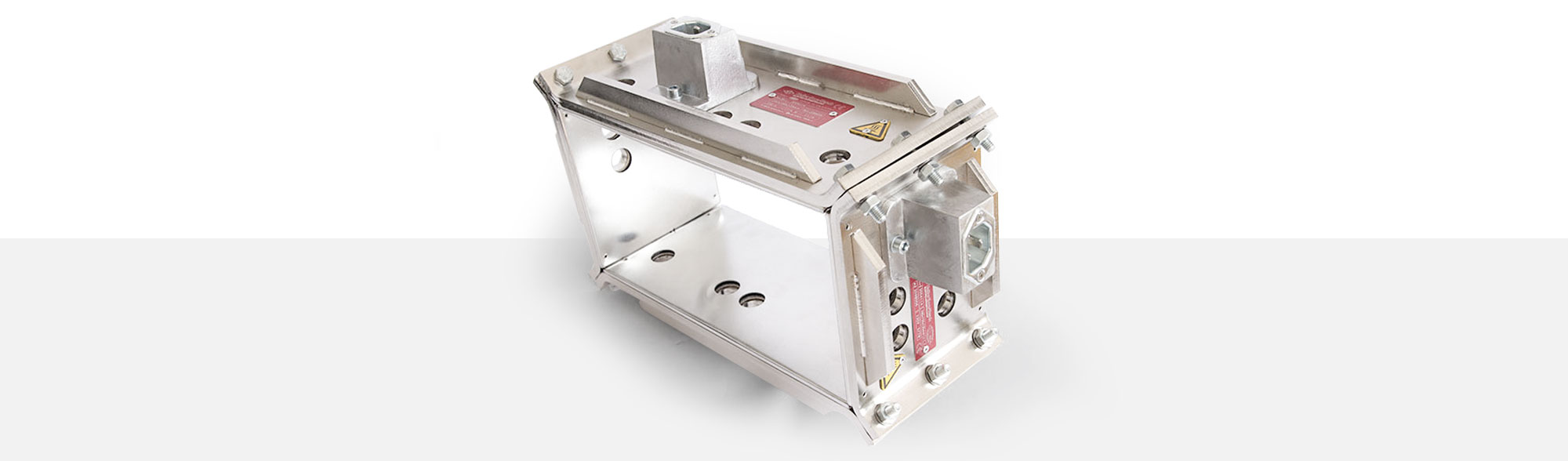

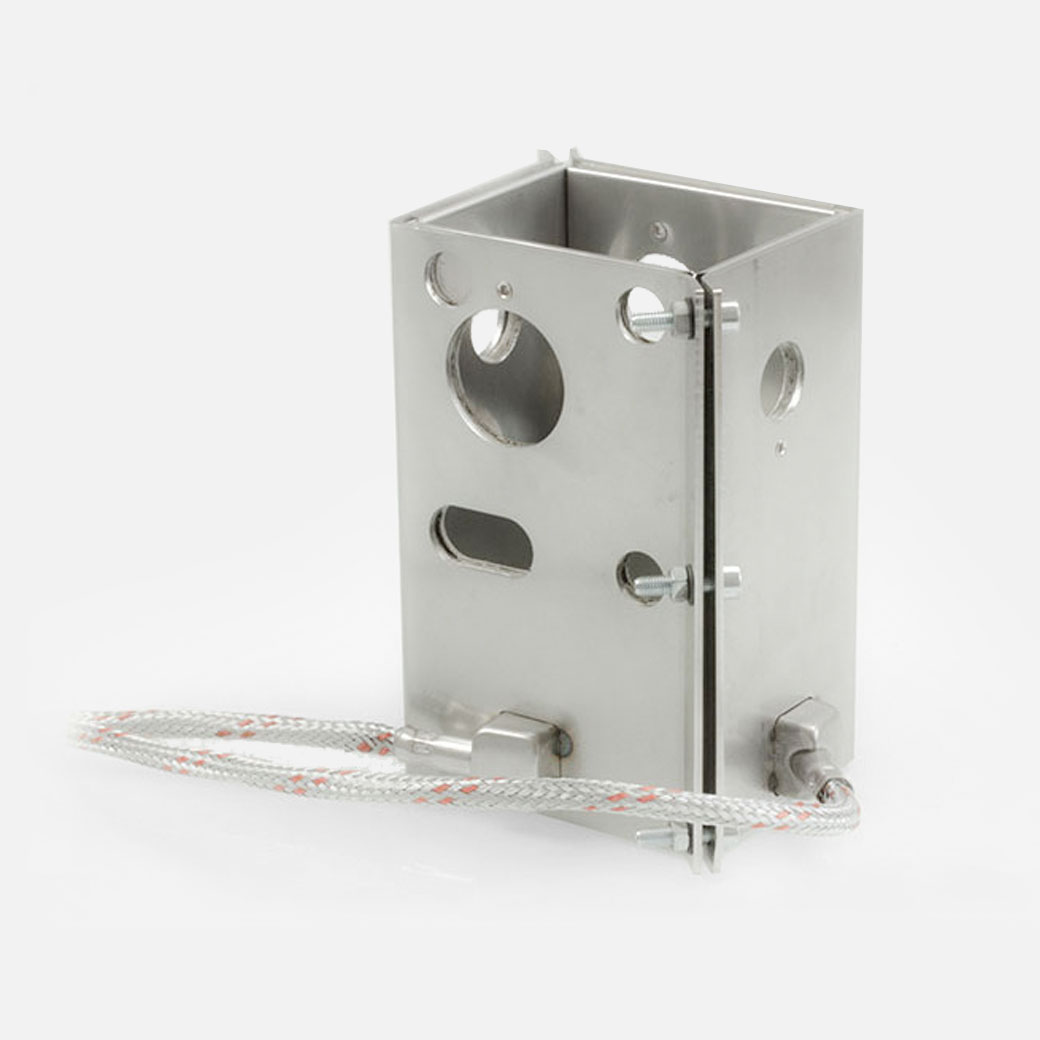

Frame Heater

BDM/RAM/BM Tool Heater

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

Holes and cut outs

with holes and/or thermocouple bridges
additional cut outs
with thermocouple (with/without potential) or resistance sensor

type	minimum dimensions length x width x heigth	type	maximum dimensions length x width x heigth
BDM/BM	80 mm x 38 mm	BDM/BM	1000 mm x 350 mm
RAM	80 mm x 80 mm x 38 mm	RAM	500 mm x 500 mm x 250 mm

Construction (thickness):

BDM/RAM: about 13 mm (with separate pressure plate)
BM: about 5 mm (without pressure plate)

Connection

direct connection
plug connection
cable fitting

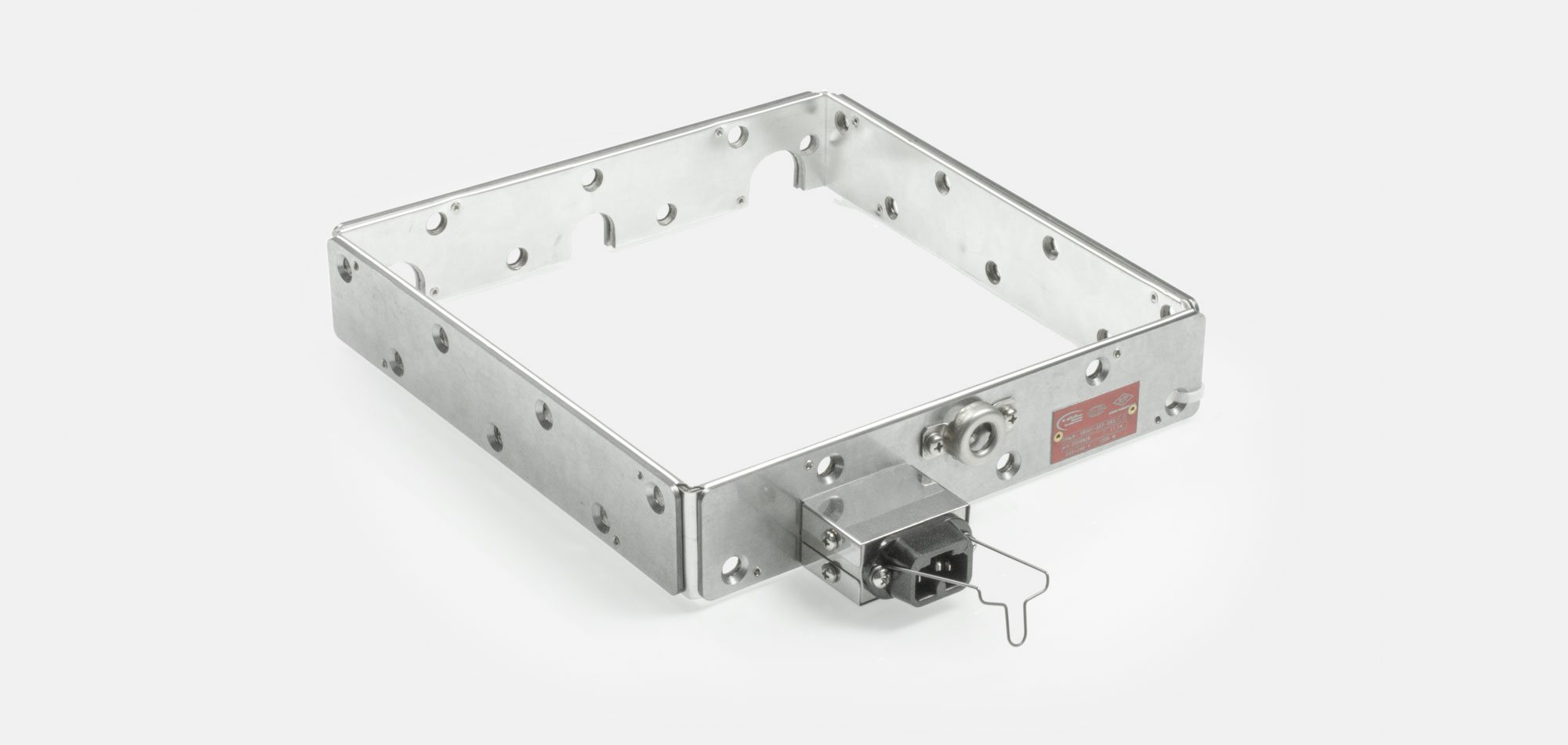

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated — Frame Heater with thermocouple connector, mounting holes and cutouts

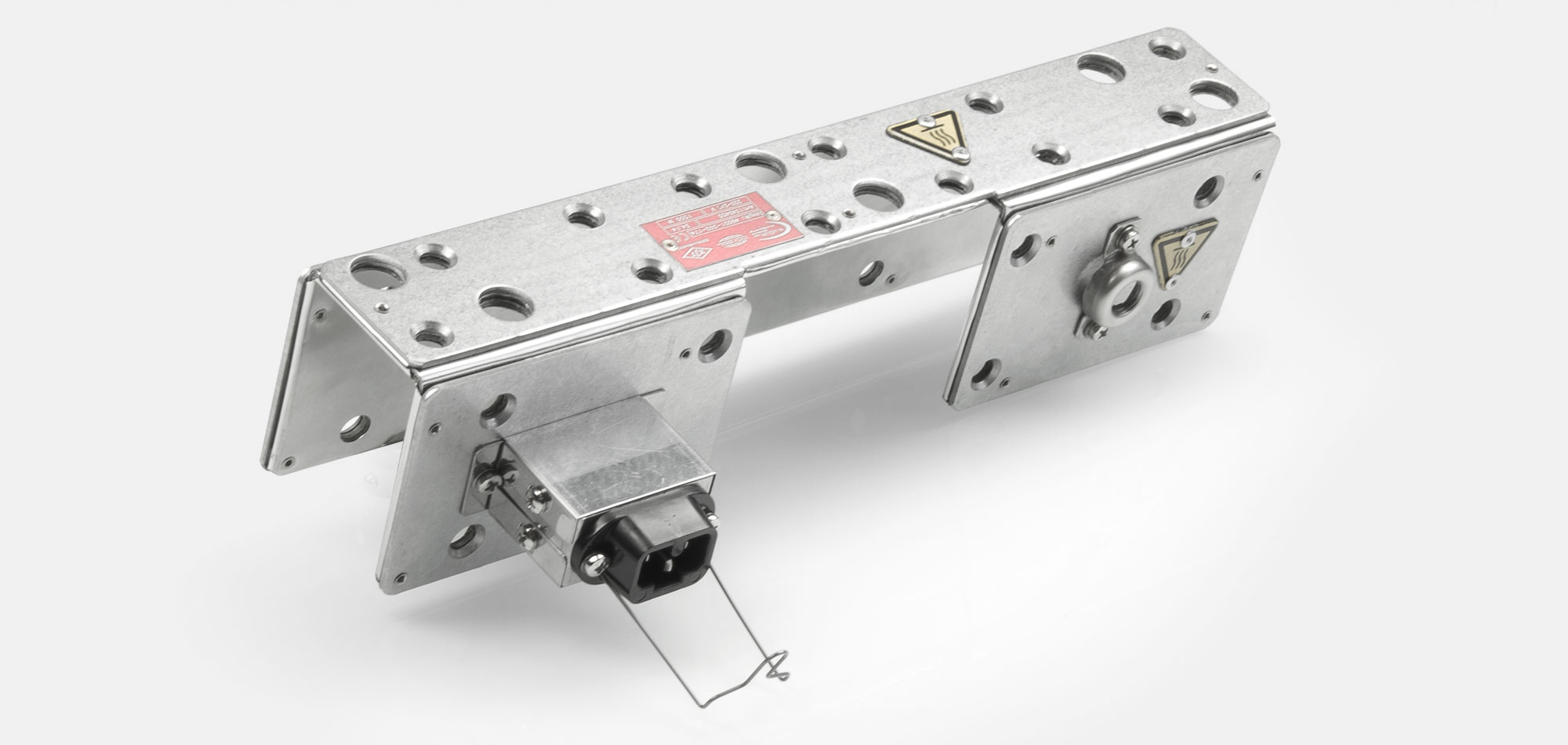

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated — Flat Heater with pressure plates in L-shape - inner band made of one part

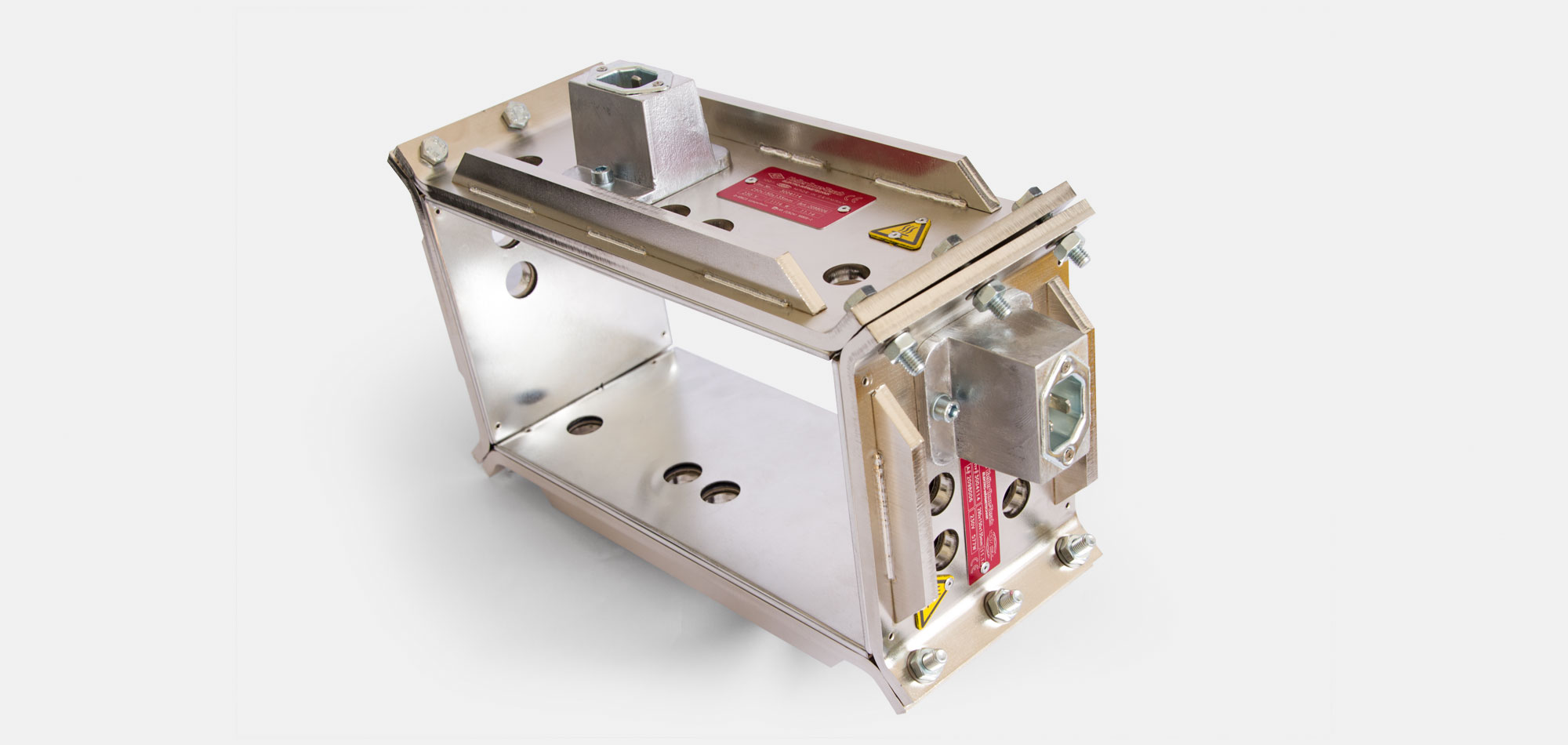

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated — Frame Heater with stiffening strips and plug-in contact fitting

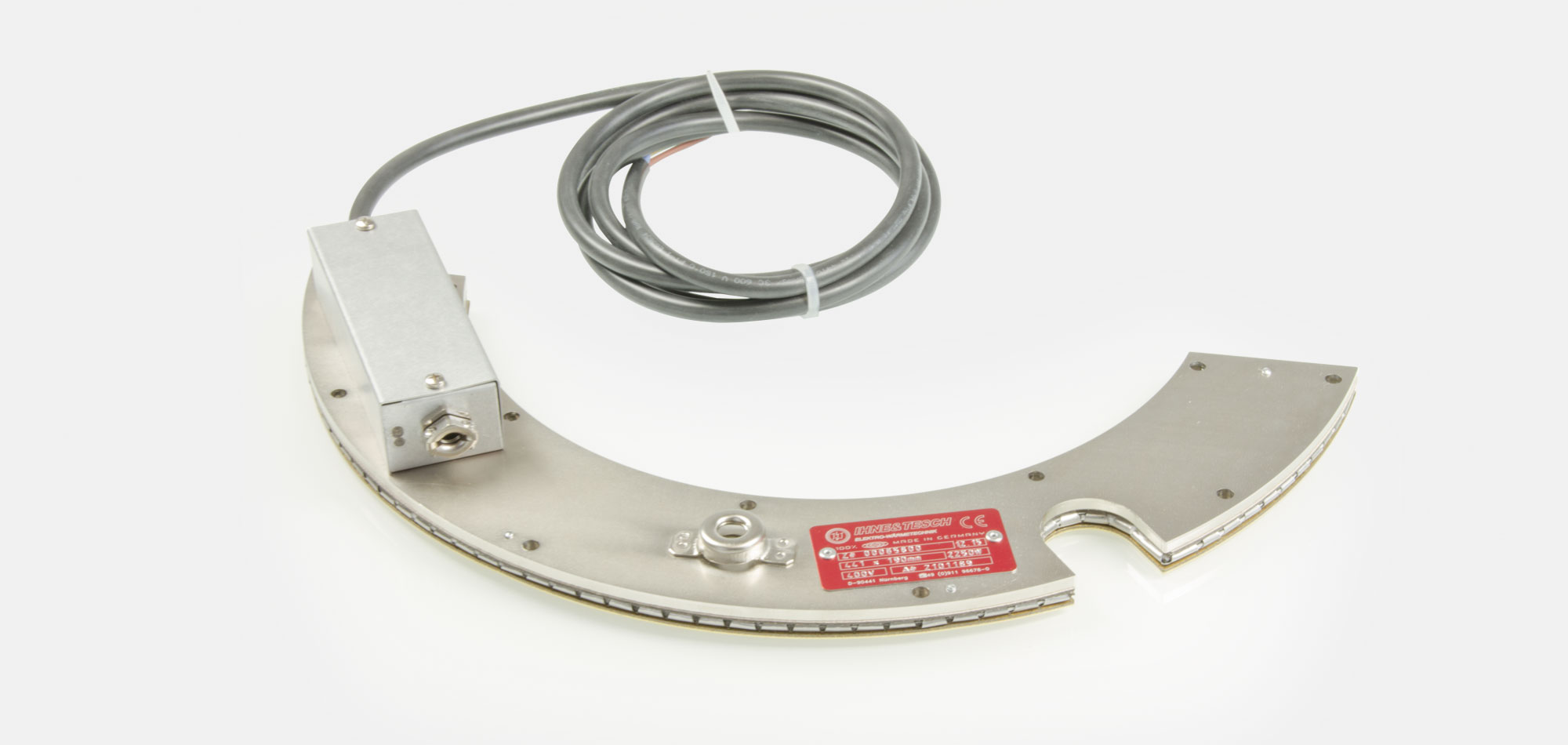

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated — Flat Heater in round shape with brass plate

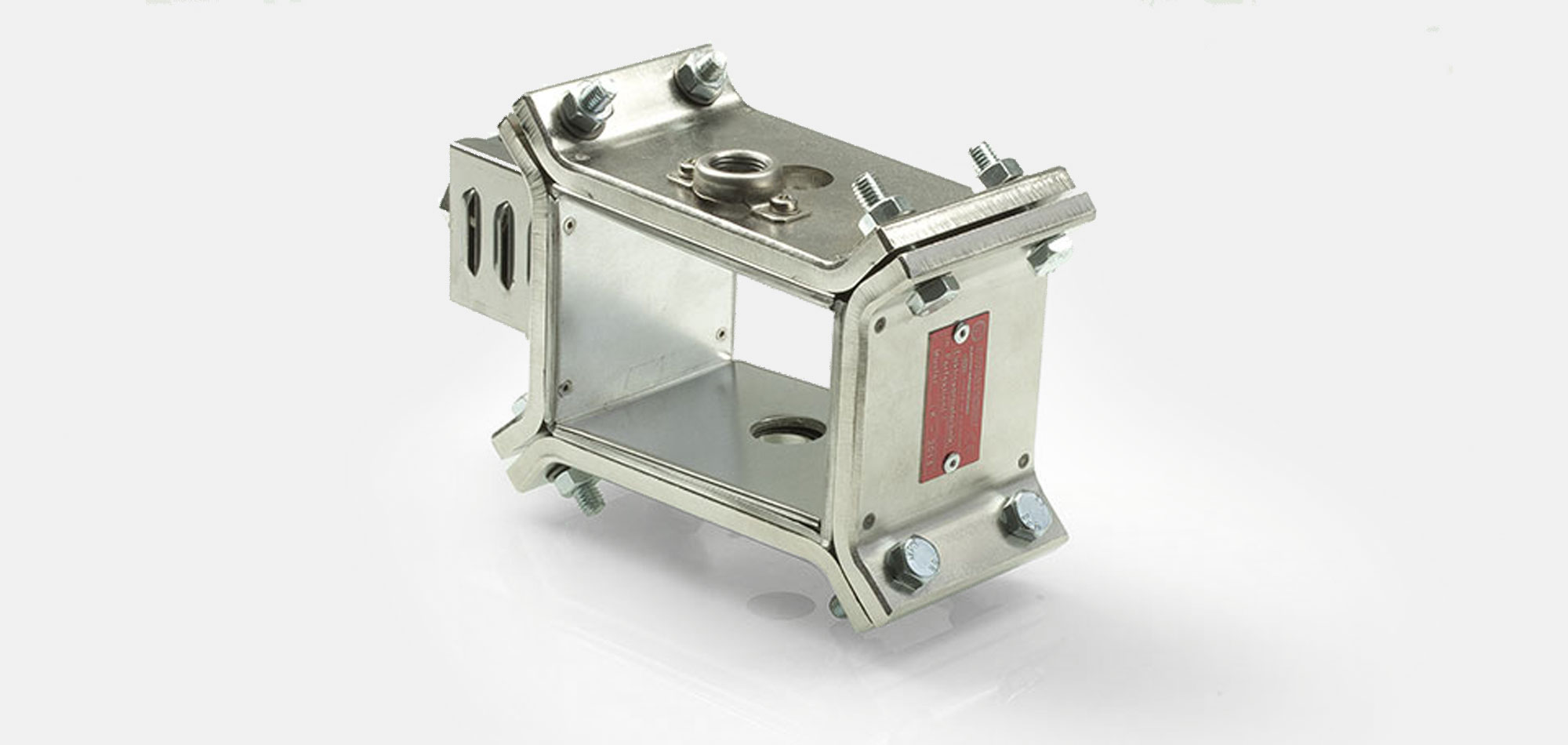

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated — Frame Heater with pressure frame, mounting brackets and stiffening strips
