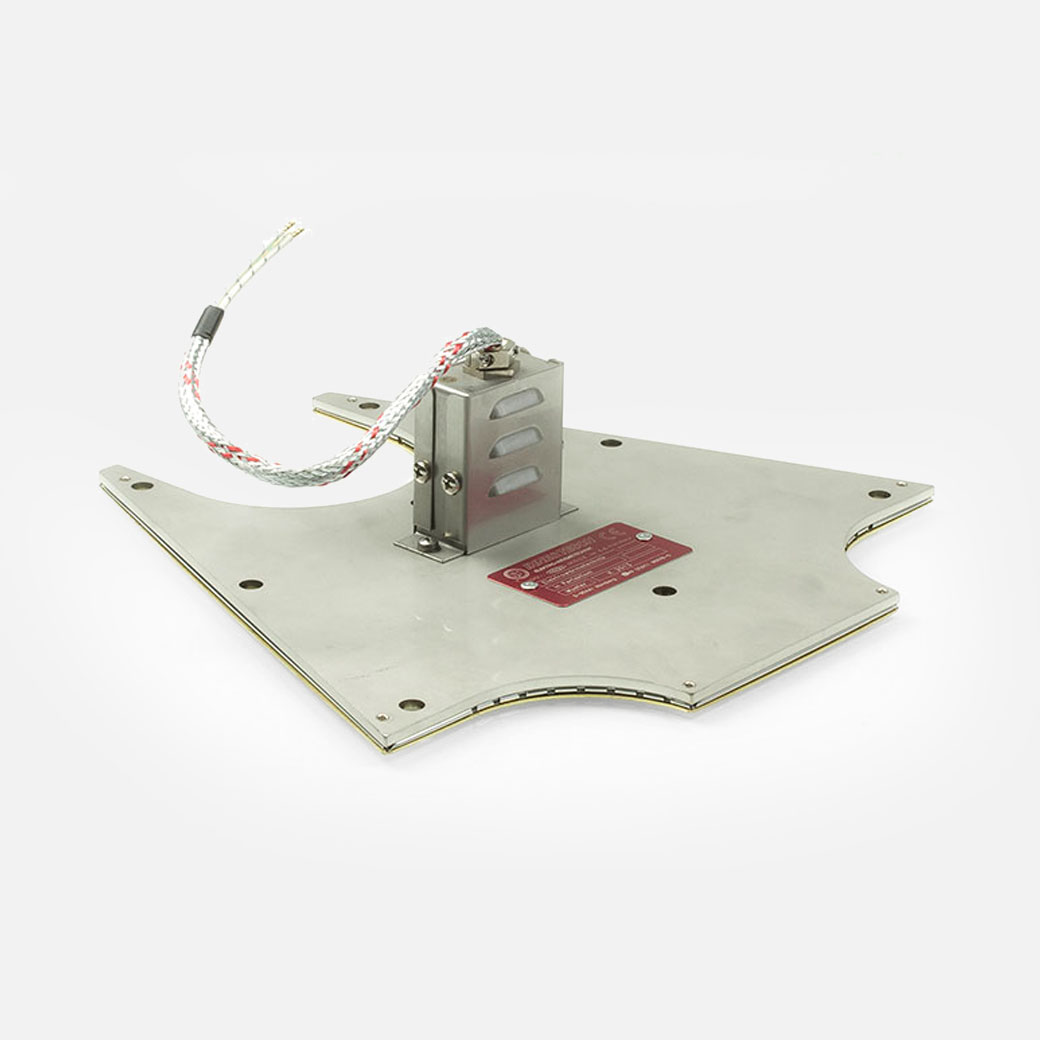

Tool heaters

BD/RA/B

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 280°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, mica insulated

APPLICATIONS

Mica insulated BD/RA/B Tool Heaters are used with extrusion, injection moulding, automold as well as with tools for distortion.


Options

  • various dimensions and connection versions
  • other voltage, single or multi-phase, star or delta connection
  • with holes and/or thermocouple bridges
  • additional cut outs
  • additional insulation
  • with warning sign – “Attention – hot surface”
  • RA: additional, welded reinforce band with sides longer as 500 mm
  • RA: in 2parted or 4 parted designs (2 or 4 separate connections)
  • stainless steel execution
  • with fastening angular
  • available in all technical possible shapes (round-, profile-, U-/L-shape)
  • as per drawing, sketch or sample
  • up to 280°C
    operating temperature
  • BD/B
    Flat Heaters
  • RA
    Frame Heaters

BD/RA/B Tool Heater

Tool Heater, Flat Heater, Frame Heater, for temperatures up to 280°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, mica insulated

Connection

  • direct connection
  • plug connection
  • cable fitting

Holes and cut outs

  • with holes and/or thermocouple bridges
  • additional cut outs
type minimum dimensions
length x width x heigth		 type maximum dimensions
length x width x heigth
BD/B 60 mm x 20 mm BD/B 1.800 mm x 350 mm
RA 80 mm x 80 mm x 20 mm RA 500 mm x 500 mm x 250 mm



Construction (thickness):

  • BD: about 6/8/11 mm (with separate pressure plate)
  • RA: about 8/11 mm (with separate pressure plate)
  • B: about 3 mm (without pressure plate)
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated
Flat Heater with pressure plates in L-shape - inner band made of one part
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

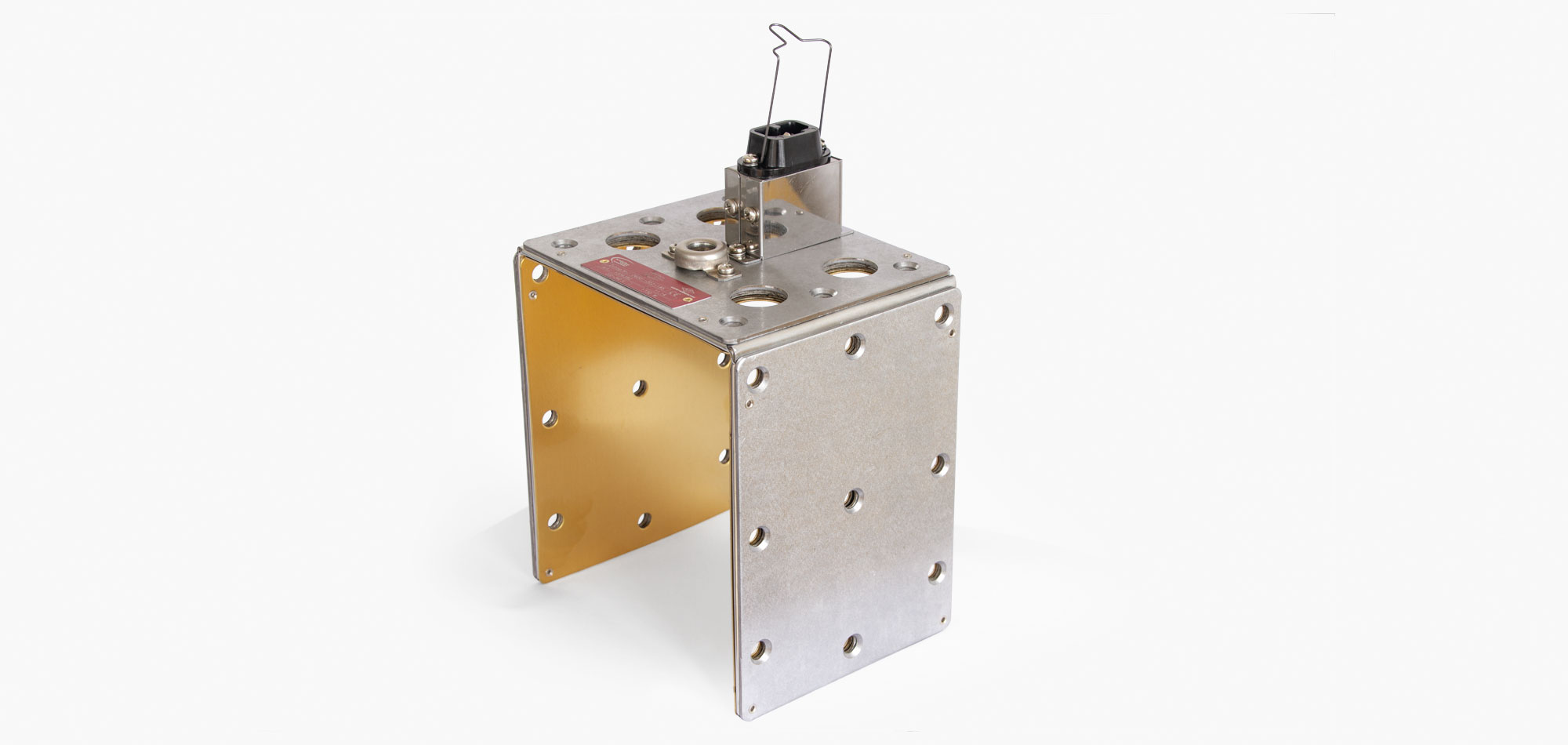

Flat Heater in U-shape with pressure plates and brass plate
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated
Frame Heater with stiffening strips and plug-in contact fitting
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

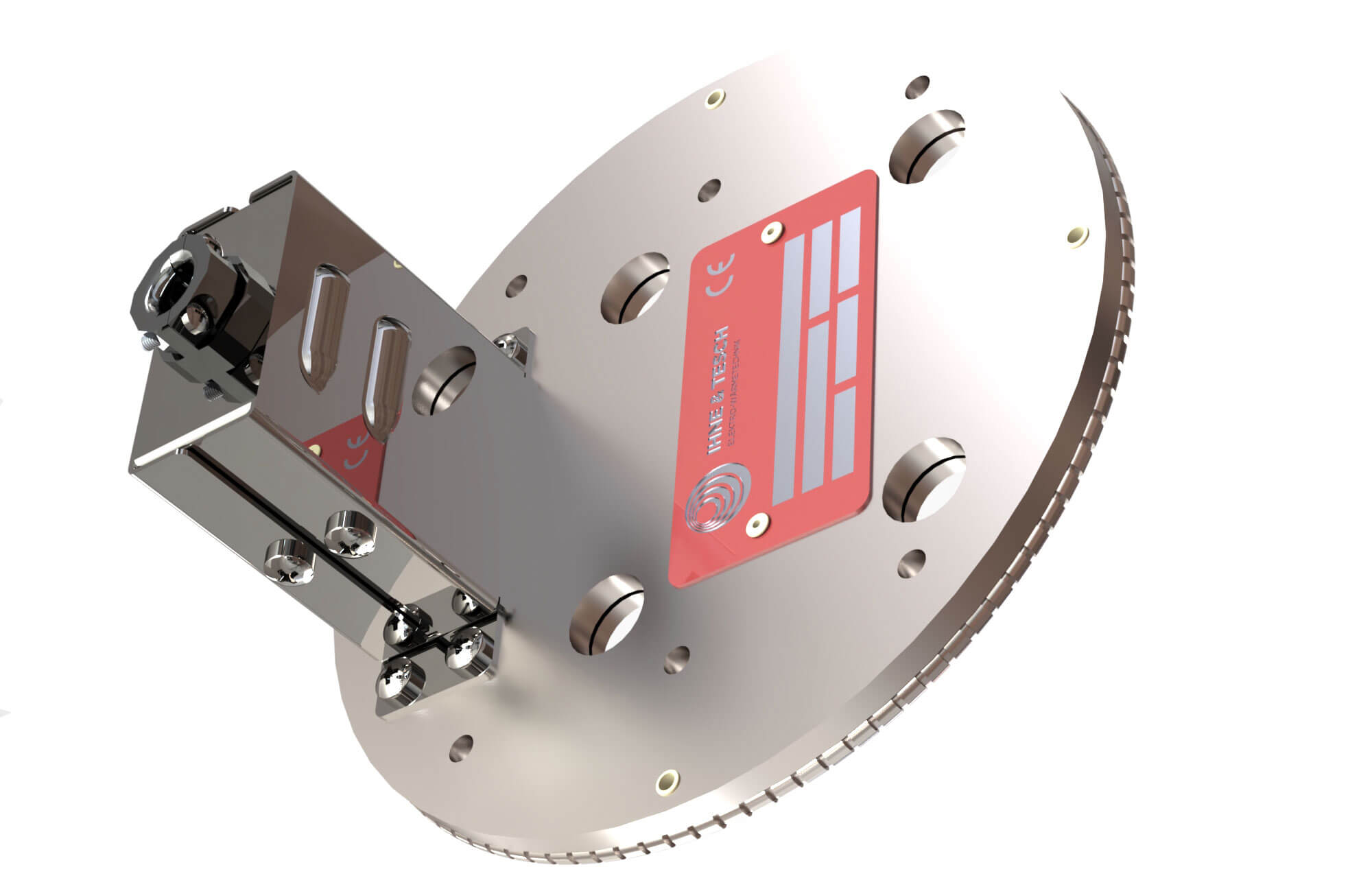

Flat Heater in round shape with brass plate
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

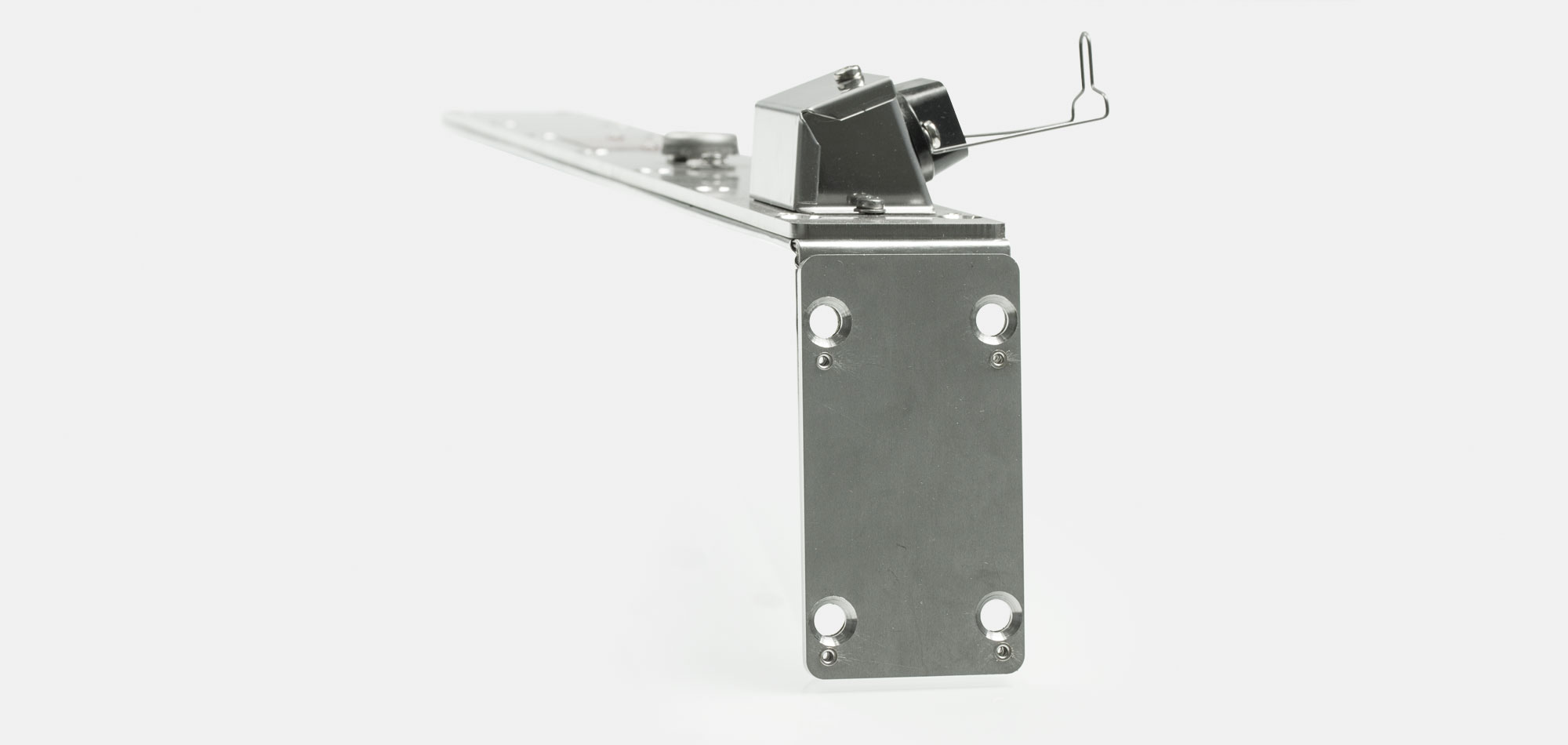

Flat Heater in L-shape with plug-in contact fitting and retaining clip
Tool Heater, Flat Heater, Frame Heater, for temperatures up to 450°C, extrusion, injection molding, plastic technology, holes, cutouts, thermocouple connector, integrated thermocouple, mineral insulated

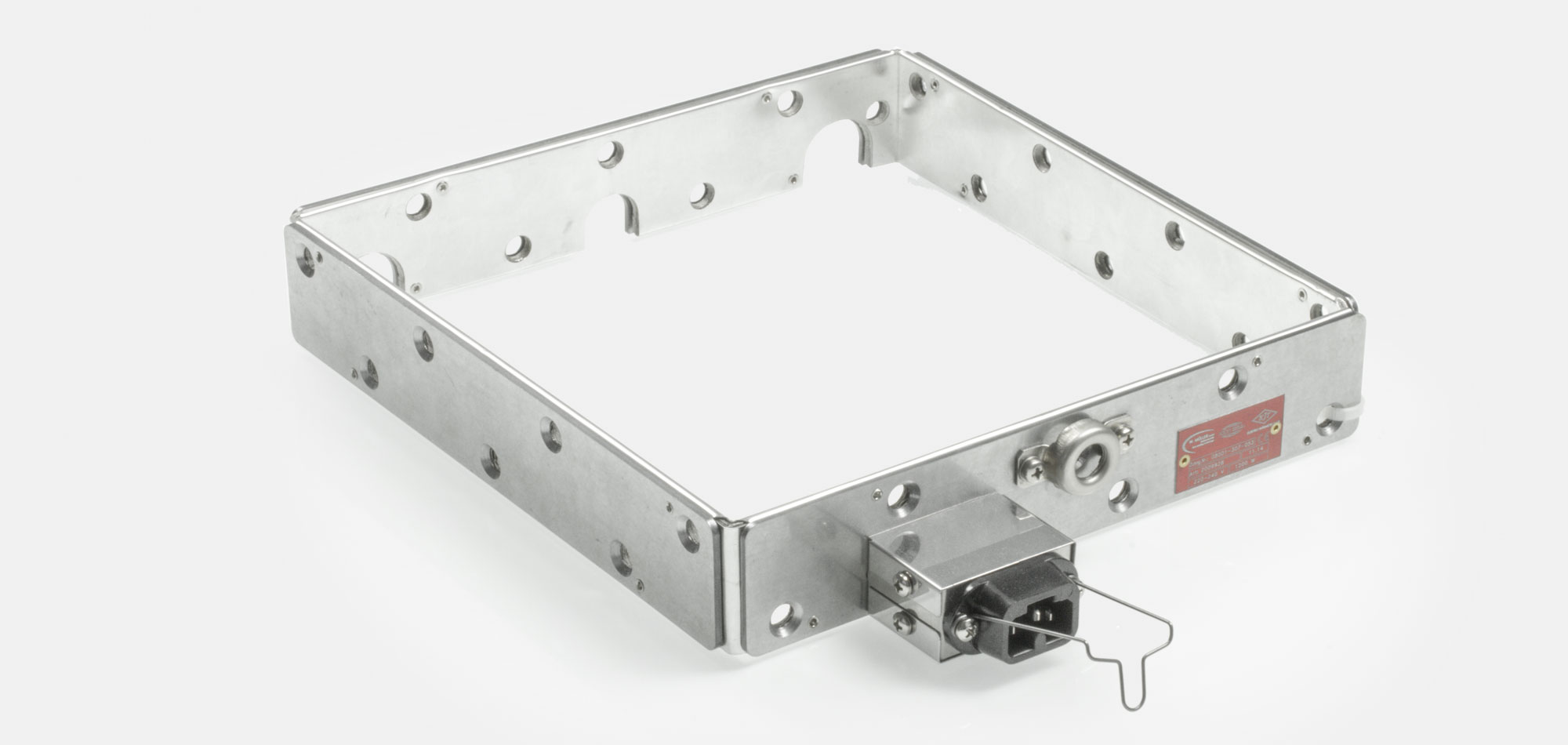

Frame Heater with thermocouple connector, mounting holes and cutouts
