TEF 30

APPLICATIONS

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

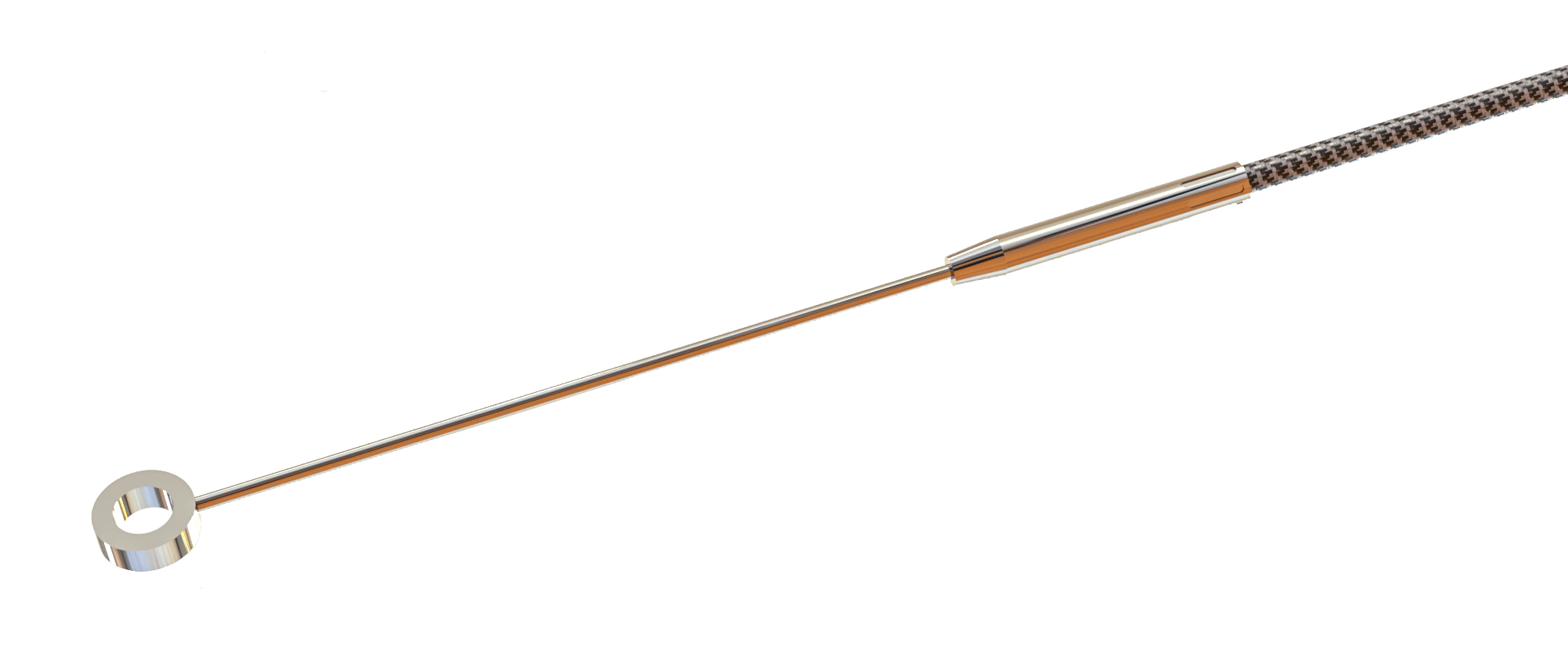

Surface mounting/tool sensors (ring sensors) are used for temperature recording at round and plane surfaces. Ring dimension and material is accordingly to your application. Furthermore are the diameter and length of the mineral insulated thermocouple is free of selection.

  • operating temperature: up to 400 °C
  • dimensions:
    Ø 9.5 / 5.5 x 3 mm out of 1.4301
  • isolated and non-isolated
  • single or double thermocouple
  • fast reaction time
  • up to 400°C
    operating temperature
  • Ø 9.5/5.5x3 mm
    ring sensor
  • Ø 1.5x75 mm
    mineral insulated thermocouple

TEF 30 Special Sensor

Please find following of mineral insulated thermocouples for the TEF 30.

Fe-CuNi type L, type J + NiCr-Ni type K

diameter terminal box leads max. temperature
0.5 mm Ø 3 x 22 mm PTFE/PTFE
Fibreglass metal braid		 260 °C
400 °C
0.5 mm Ø 4 x 22 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
0.75 mm Ø 3 x 22 mm PTFE/PTFE
Fiberglass metal braid		 260 °C
400 °C
0.75 mm Ø 4 x 22 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
1.0 mm Ø 3 x 22 mm PTFE/PTFE
Fiberglass metal braid		 260 °C
400 °C
1.0 mm Ø 4 x 22 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
1.5 mm Ø 3 x 22 mm PTFE/PTFE
Fiberglass metal braid		 260 °C
400 °C
1.5 mm Ø 4 x 22 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
2.0 mm Ø 6 x 30 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
3.0 mm Ø 6 x 30 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
4.5 mm Ø 6 x 30 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C
6.0 mm Ø 8 x 50 mm PTFE/PTFE
Fiberglass metal braid
Kapton/Kapton
Fiberglass/Kapton		 260 °C
400 °C
350 °C
400 °C

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1134620
      with cross section 2x0,50 mm² part# 1349300

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300

    Miniature Duplex - Thermocouple plug connectors

    J type duplex mini plug part# 2105183
      duplex mini socket part# 1209140
      ferrule part# 1269363





    K type duplex mini plug part# 2105186
      duplex mini socket part# 2105188
      ferrule part# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
