Melt Probe

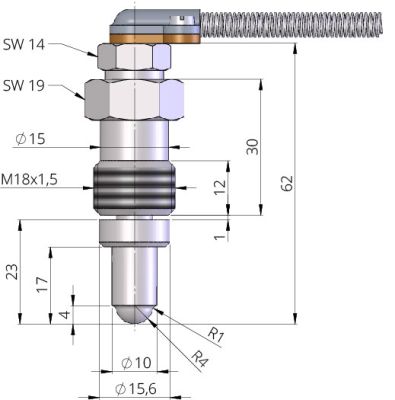

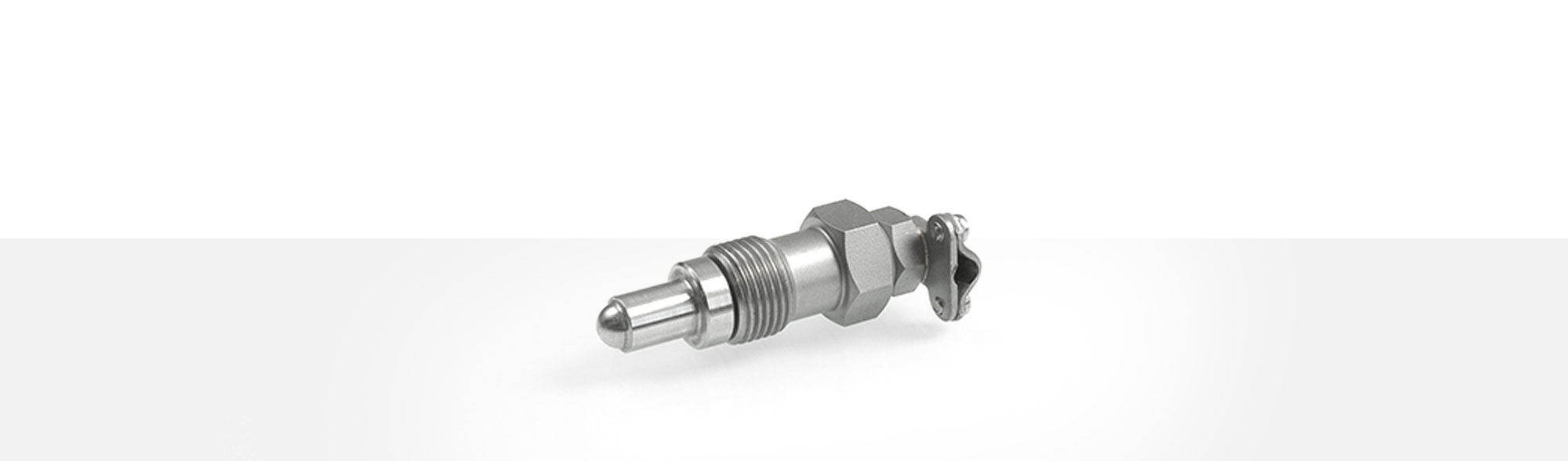

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. There is no justification of the ball sensor tip at the flow direction required. The MTF 118 compact, small, right-angled design with M18x1.5 screw-in thread is perfect suitable for small spaces. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.
Please find following our standard thermo and compensating wires for MTF 118 Melt Probes listed. Others are available on request.
Fe-CuNi type L
| part# | cross section | temperature range | outer diameter |
| 1200455 | 2x0.22 mm² | -50 °C up to +400 °C | approx. 3.40 mm |
| 1200456 | 4x0.22 mm² | -50 °C up to +400 °C | 3.80 mm max. |
| 1200464 | 2x1.00 mm² | -50 °C up to +400 °C | approx. 4.50 mm |
| 1200465 | 2x1.00 mm² | -50 °C up to +400 °C | approx. 4.50 mm |
| 1256523 | 2x1.00 mm² | -50°C up to +500 °C | approx. 4.50 x 2.60 mm |
Fe-CuNi type J
| part# | cross section | temperature range | outer diameter |
| 1229818 | 4x0.22 mm² | -50 °C up to +400 °C | approx. 3.60 mm |
| 1222528 | 2x0.35 mm² | -50 °C up to +400 °C | approx. 3.60 mm |
| 1231037 | 2x0.50 mm² | -50 °C up to +400 °C | approx. 3.90 mm |
| 1201349 | 2x1.00 mm² | -50 °C up to +400 °C | 4.60 mm max. |
| 2239028 | 2x0,35 mm² | -50 °C up to +650 °C | approx. 3,40 mm |
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3300 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Thermocouple plug connectors
| J type | plug | A9.1 | part# 1107127 |
| socket | A10.1 | part# 1107128 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
| K type | plug | A9.2 | part# 1209136 |
| socket | A10.2 | part# 1134620 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
Duplex - Thermocouple plug connectors
| J type | duplex plug | part# 1209139 | |
| duplex socket | part# 1209144 | ||
| strain relief | 2x1,00 mm² | part# 1349298 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
| K type | duplex plug | part# 2105264 | |
| duplex socket | part# 1302891 | ||
| strain relief | 2x1,00 mm² | part# 1349298 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
