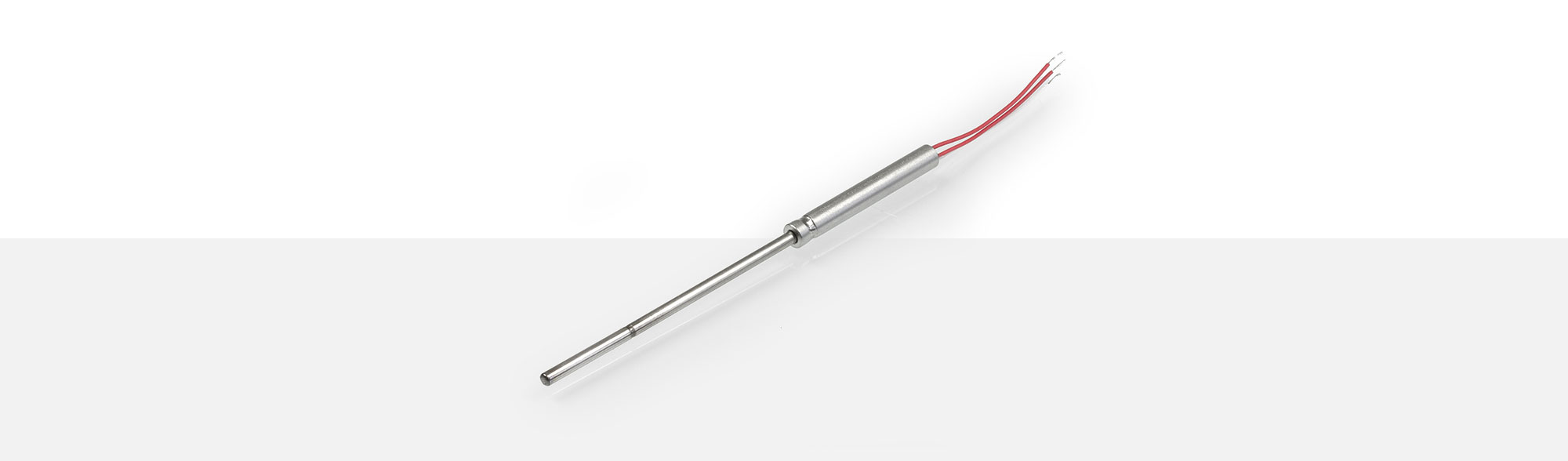

MW 1 Temperature Sensor

APPLICATIONS

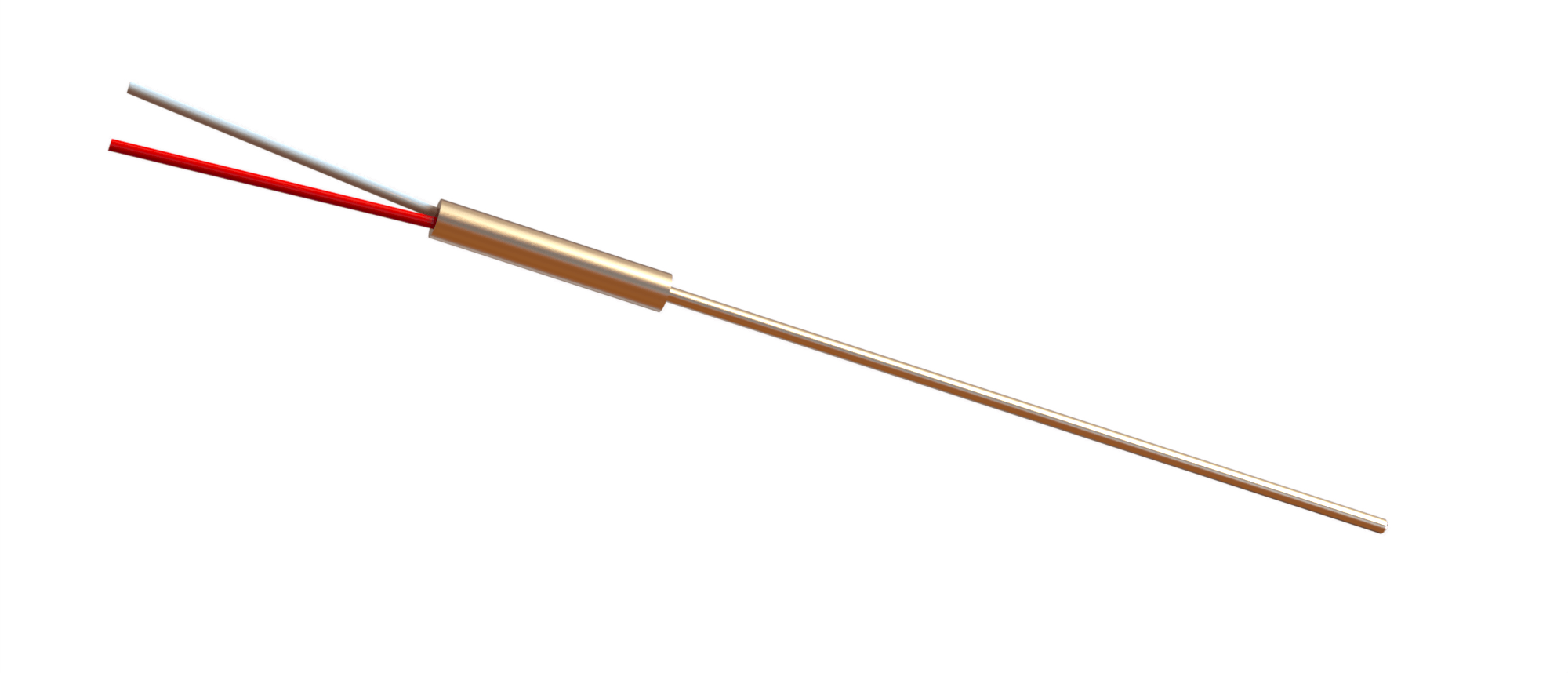

Due to their advantageous characteristics as flexibility, shock-resistant design and very fast reaction mineral insulated resistance sensor have many application ranges within the industrial sector. In flexible rust-free steel part are two or more heat resistant wires imbedded into Magnesium oxide. The Pt100 is installed into a rigid protection tube. The sensor leads are connected with the inner leads as and the jacket wire is soldered with the protection tube. The MW 1 has approx. 500 mm long connection wires. The connection is humidity proof sealed into the reinforced sleeve and has an allowed temperature range up to 130 °C. 1.5 mm, 2.0 mm, 3.00 mm and 6.0 mm protection tube diameters are available. Please indicate the sensor length.

• mineral insulated resistance sensor
  as per DIN EN 60751
• operating temperature: up to 600 °C
• standard design: with Pt100 resistance sensor
  in two-wire circuit – class B
• two- or three-wire circuit available
• Connection end with reinforced sleeve
• 1.4541 jacket material
