plug-in sensors

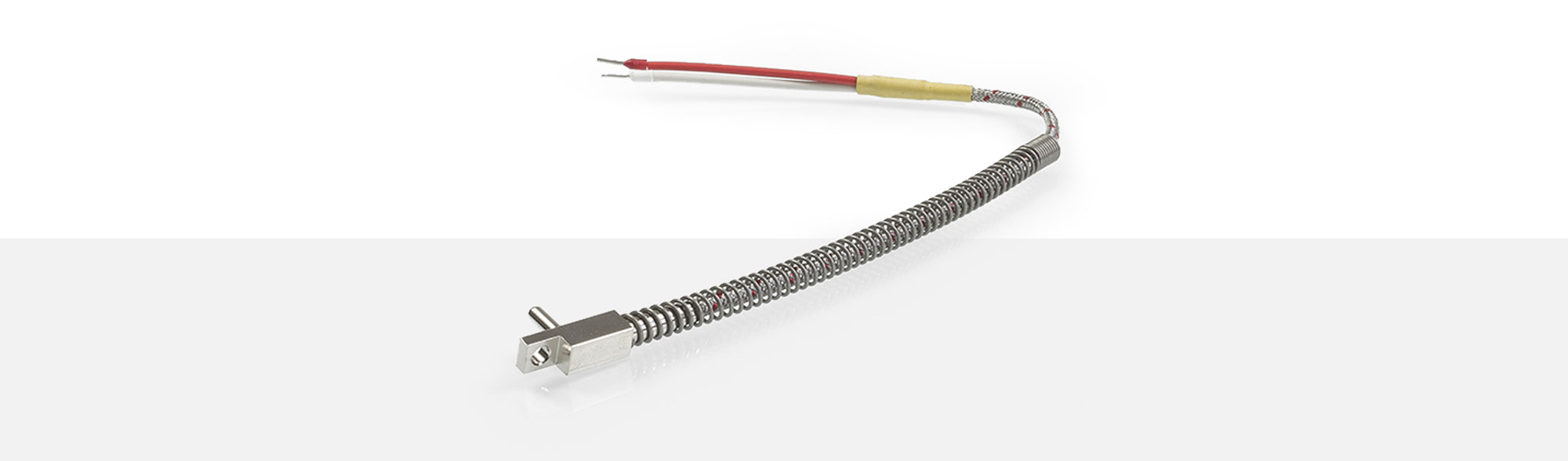

Plug-in sensors are ideal for all possible application of temperature measuring. PWF 68 is the preferred thermocouple at hot runner systems. They are available with plane and right-angle exit. If holes are not possible they can be as well manufactured as surface sensor. They will be fastened with a M3 or M4 screw. The passage from compensating wire to protection tube is strain relieved. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered by steel metal braid.
Please find following our standard leads for PWF 68 Resistance sensors listed. Others are available on request.
| part# | cross section | temperature range | outer diameter |
| 1201354 | 2x0.35 mm² Cu-nickel plated |
-50 °C up to +260 °C | 4.6 x 2.8 mm |
| 1201352 | 2x0.38 mm² Cu-nickel plated |
-50 °C up to +260 °C | 3.45 x 1.95 mm |
| 1340642 | 3x0.25 mm² Cu-tinned |
-60 °C up to +260 °C | 3.40 ±0.15 mm |
| 1307789 | 4x0.22 mm² Cu-tinned |
-50 °C up to +350 °C | 4.00 ±0.15 mm |
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3200 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
