screw-in sensors

PWF 207

APPLICATIONS

Screw-in resistance sensors with plugs are for temperature readings between -50 °C up to +200 °C. It has an interchangeable gauge slide. The Pt100-temperature sensor as per DIN EN 607051 class B with two-wire cirucuit is standard. Pt500 and Pt1000 are available as well. The stainless stell protection fitting has G 1/2" connection thread. Standard dimension of the PWF 207 is Ø 6 x 50 mm.

Pt100 gauge slide as per
DIN EN 60751 – class B
Operating temperature: up to 200 °C
exchangeable gauge slide
with right angle plug, lead exit with G1/2" thread

up to 200°C
operating temperature
exchangeable
gauge slide
right angle
lead exit

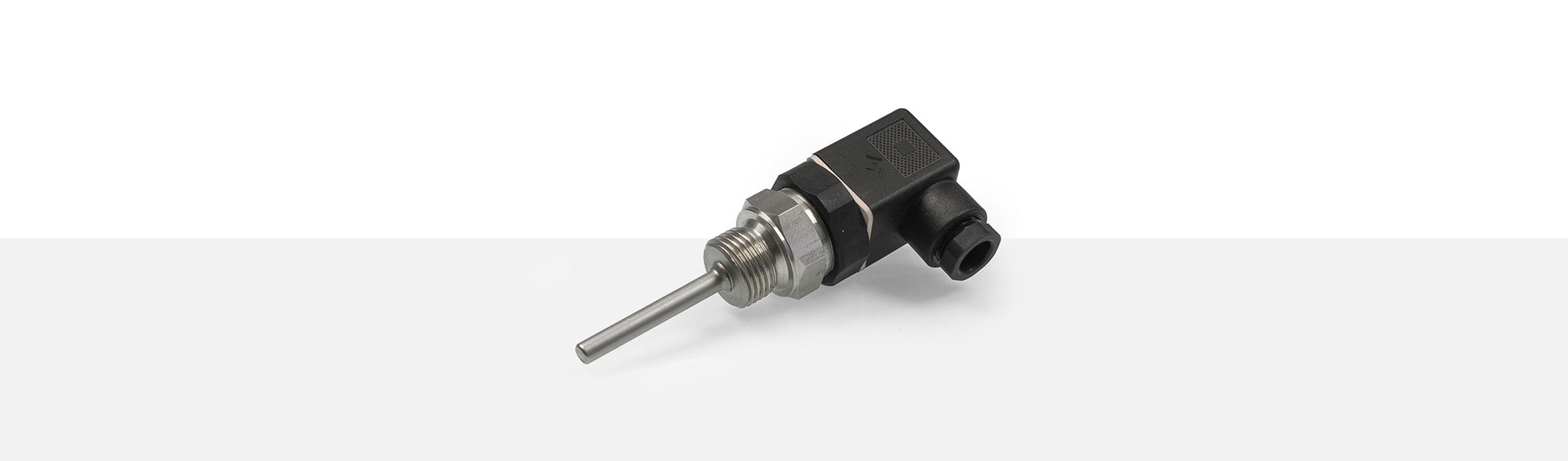

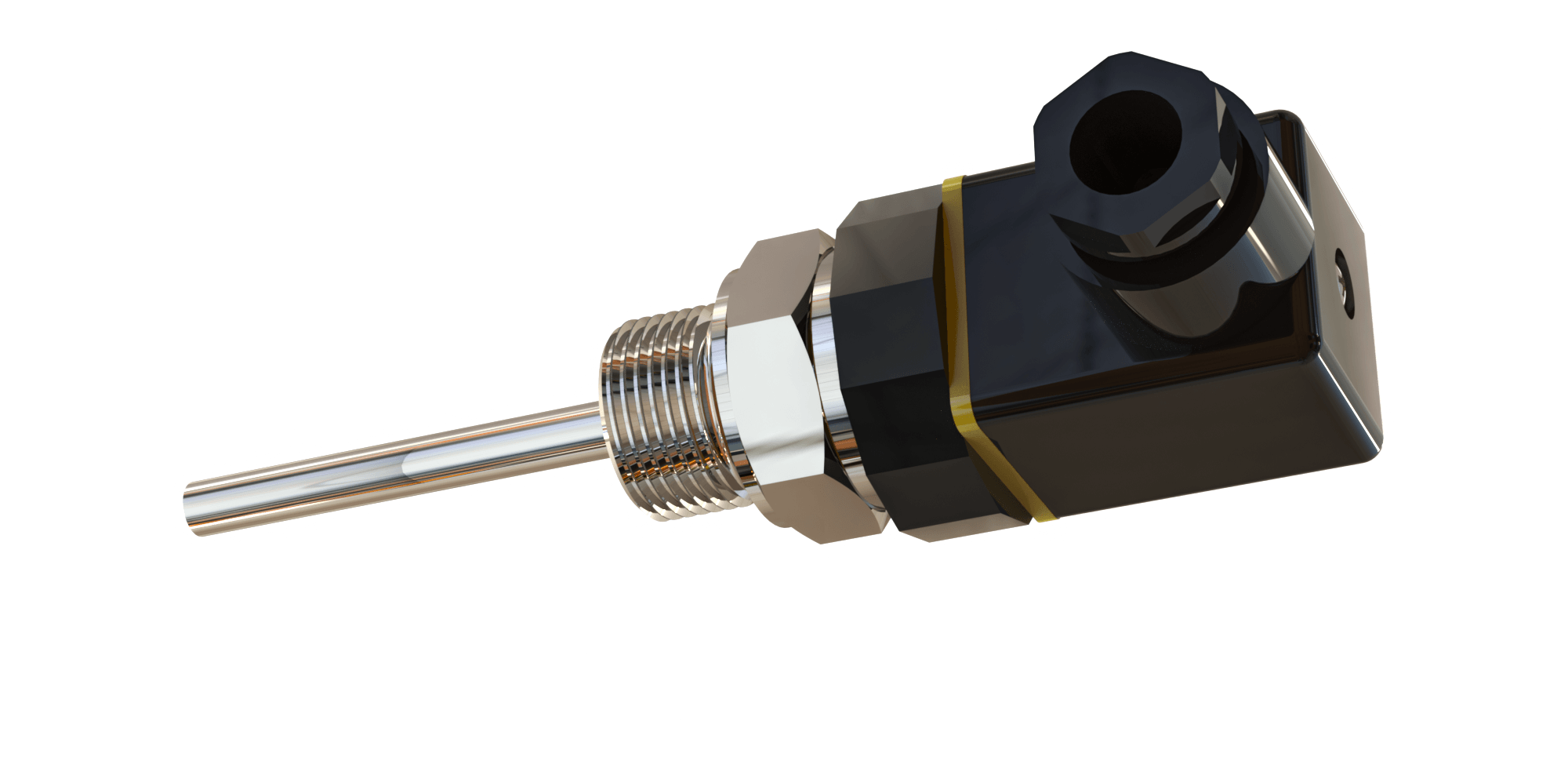

PWF 207 Screw-in sensor

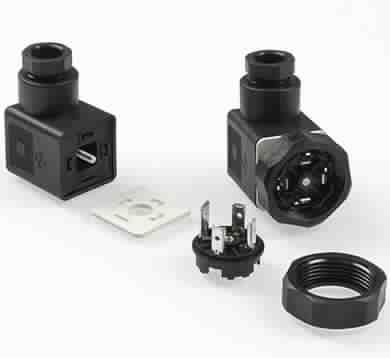

Appliance inlets

3+PE-pins

part# 2212045

markerProductAnimation

Downloads

Temperature-Sensors-stock-program.pdf (120.8 KiB)
