screw-in sensors

PWF 205

APPLICATIONS

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The PWF 205 has a fitting length of 25 mm. The Ø 3.0 x 15 mm plane sensor tube ends with an M8 x 10 mm thread nipple with a key size of 13 mm. The total length is 25 mm. A 60 mm long fiberglass hose is used as anti-kink protection. Standard leads are galvanized copper wires with PTFE- and fiberglass insulation covered with stainless steel protection metal braid.

Pt100 gauge slide as per
DIN EN 60751 – class B
two-wire circuit as standard design
operating temperature: up to 260 °C
isolated
sensor tip: Ø 3 x 15 mm – plane
M8x1 screw-in nipple – key size 13 mm

up to 260°C
operating temperature
Ø 3 x 15 mm
sensor tip - plane
M8 x 10
screw-in nipple

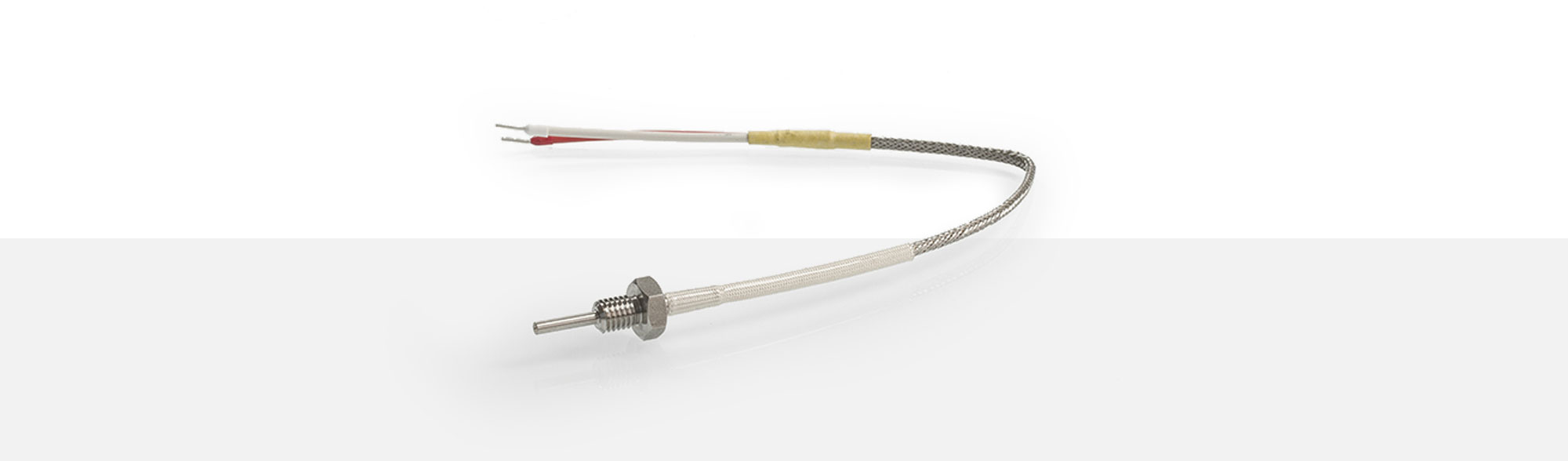

PWF 205 Screw-in sensor

Please find following our standard leads for PWF 205 Resistance Sensors listed. Others are available on request.

part#	cross section	temperature range	outer diameter
1308376	2x0.22 mm² Cu-tinned	-50 °C up to +350 °C	3.50 ±0.15 mm
1201352	2x0.38 mm² Cu-nickel plated	-50 °C up to +260 °C	3.45 x 1.95 mm

Miniature - round plugs with screw connection

2-pin	plug	T3200	part# 1200716
	socket	T3201	part# 1200721

3-pin	plug	T3260	part# 1201415
	socket	T3261	part# 1200722

4-pin	plug	T3300	part# 1103624
	socket	T3301	part# 1200723

Round plugs with screw connection

3-pin	plug	T3079	part# 1103631
	socket	T3080	part# 1200749

5-pin	plug	T3083	part# 1103635
	socket	T3084	part# 1200750

Round plugs with bayonet connection

3-pin

plug

T3008

5-pin

plug

T3012

Miniature plug connectors

Lemo	cable Ø max. in mm
	sizes	0S	1S	2S	3S
	standard socket	3,7	4,2	4,2	4,2
	fitting socket
	standard plug	3,7	4,2	4,2	4,2
