screw-in sensors

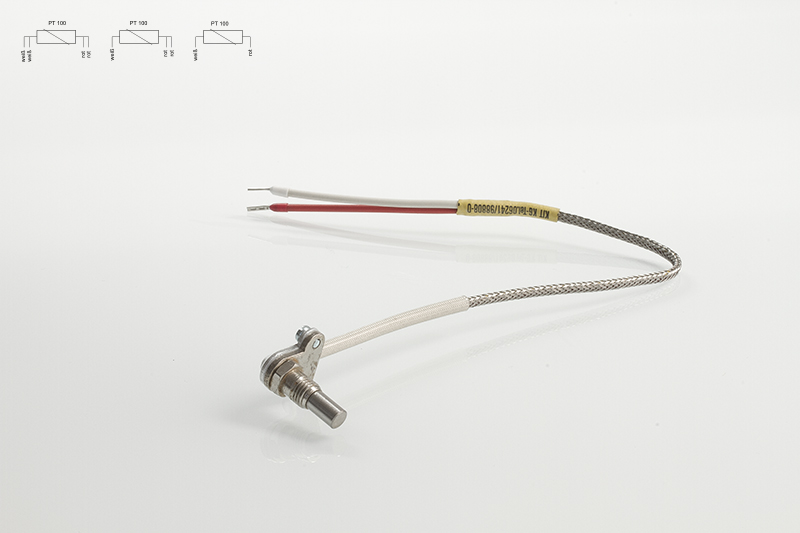

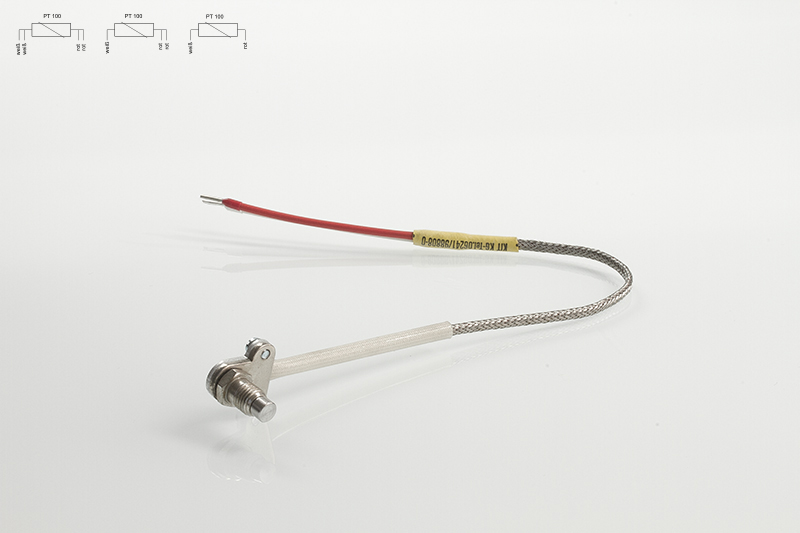

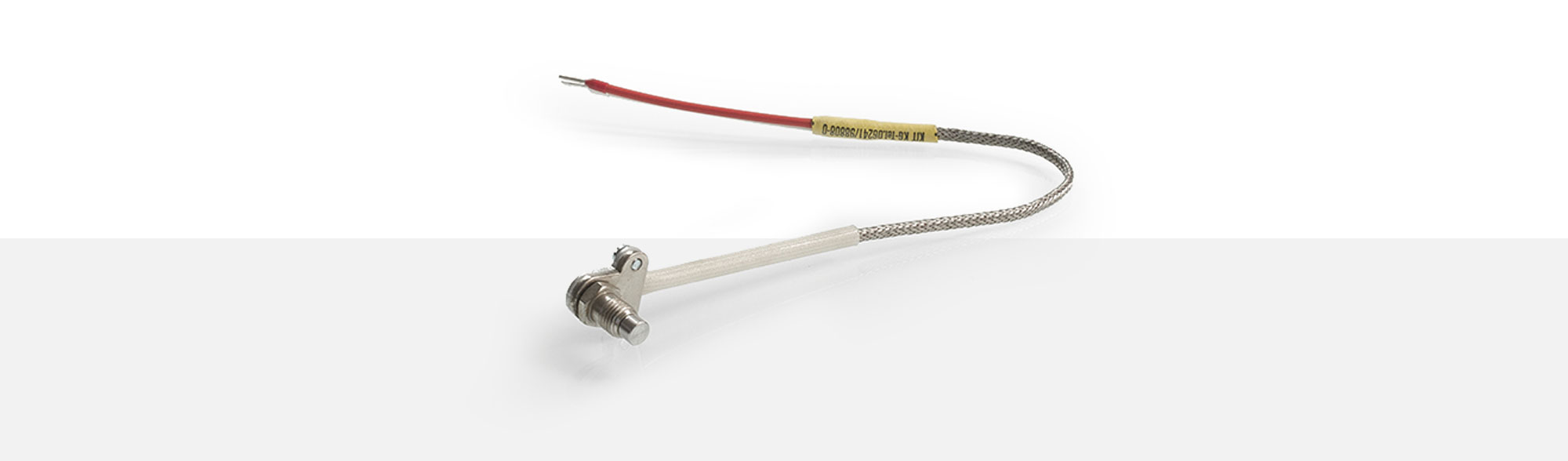

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The PWF 101 is a right-angle exit screw-in sensor. The sensor tip is Ø 6 x 4 mm with plane measuring surface and total length of 16 mm. The nipple has an M8x1 thread with a key size of 10 mm. A 60 mm long fiberglass hose is used as anti-kink protection. Standard leads are galvanized copper wires with PTFE- and fiberglass insulation covered with stainless steel protection metal braid.
Please find following our standard leads for PWF 101 Resistance Sensors listed. Others are available on request.
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3300 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
