Industrial Oven Systems and Pre-Heat devices

Silo Dryers design examples

APPLICATIONS

Warm-air-dryers are used for drying and pre-heating solvent-free synthetic granulates. Advantages here are:

  • enlarged plasticizing capacity
  • quality improvement
  • quality assurance
  • improved flow behaviour
Surface humidity at granulate will be achieved with non-hygroscopic synthetics (e.g. PE, PP,PS, etc.) with unfavourable storage, large temperature differences and condensate with high air humidity.  A pre-heating is necessary to remove condense humidity. Several machinery can be served by one dryer.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labelling and documentation in various languages
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • high pressure blowers related to enforced heat capacity for enlarged air flow
  • easy-change fine air filter with difference pressure monitor and filter change monitor
  • base as per customer requirement
  • cut outs at cover for conveyors as per customer requirement
  • sockets for conveyors at terminal box
  • material withdrawal container/tank as indicated
  • interfaces as per customer specification
  • up to 180°C
    operating temperature
  • sizes
    on customer's request
  • solventless
    plastic pellets

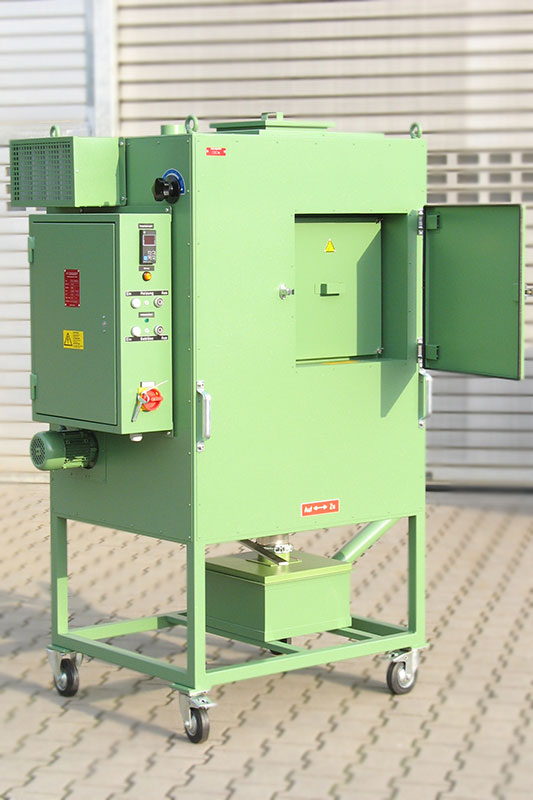

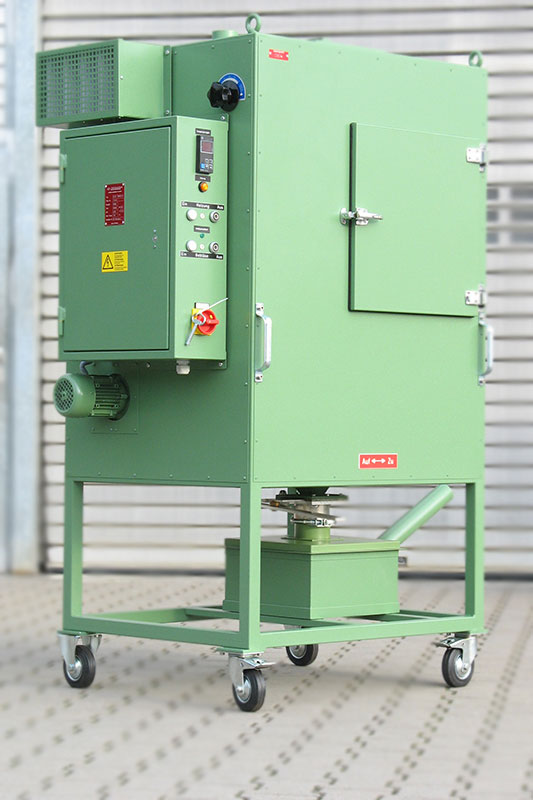

Example 1 - up to 120 kg - part# 1204573



  • volume: 200 liter
  • filling weight: 120 kg
  • operating temperature: up to 140 °C
  • heat capacity: 4.5 kW
  • circulation air blower: 0.18 kW
  • air capacity: ca. 2.6 m³/min


This Silo Dryer is used for drying thermoplastic synthetics. Achievable remaining moisture: 0.1 % up to 0.09 %.


Construction

  • electronic temperature control
  • temperature protection

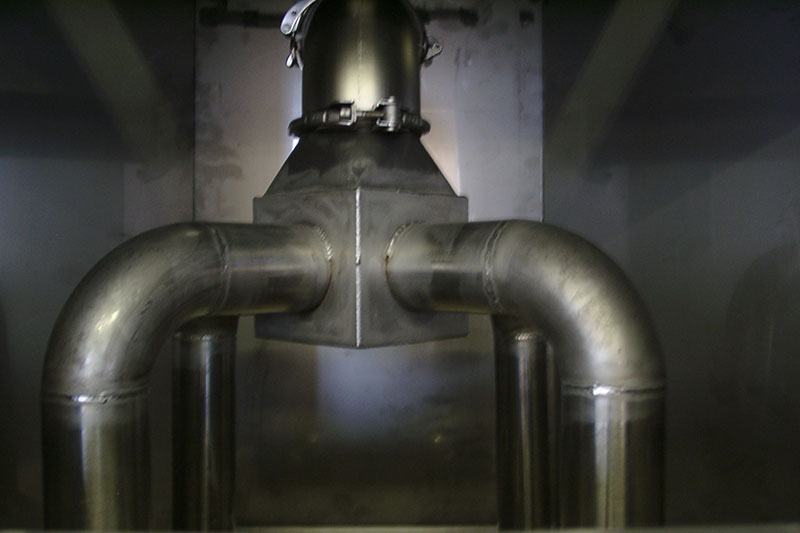

  • stainless steel plate internal tank
  • stainless steel extraction pot
  • adjustable fresh and circulation air slide
  • cleaning port at side wall

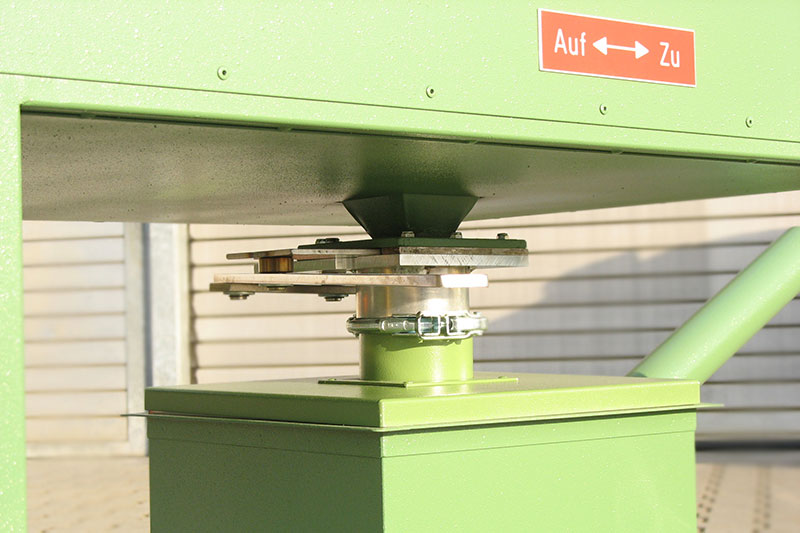

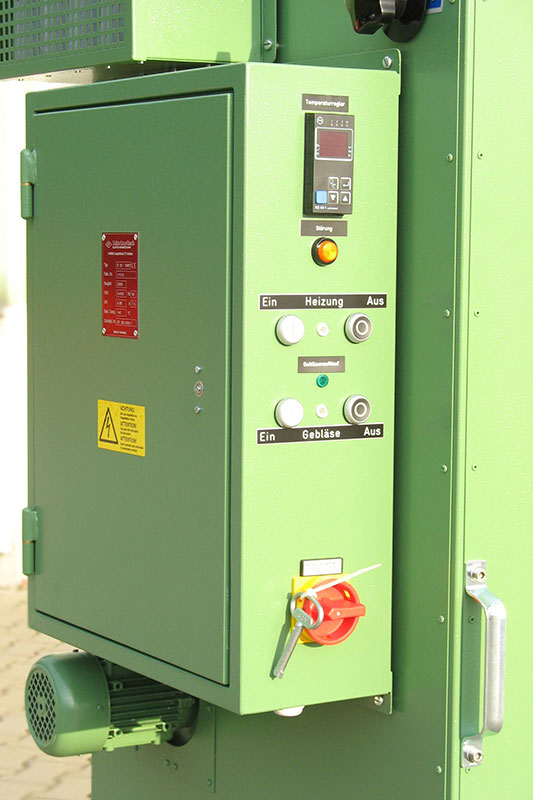

Galery

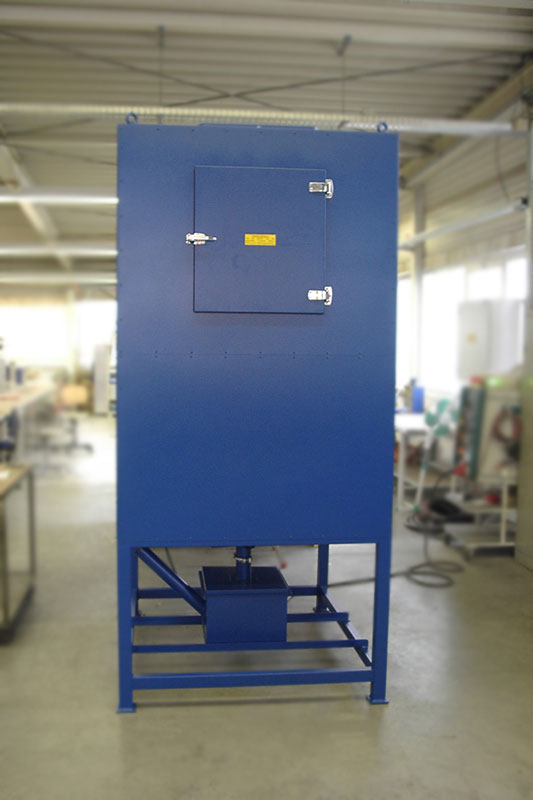

Example 2 - up to 500 kg - part# 1367298



  • volume: 800 liter
  • filling weight: 500 kg
  • operating temperature: up to 140 °C
  • heat capacity: 15 kW
  • circulation air blower: 0.95 kW
  • air capacity: ca. 25 m³/min



This Silo Dryer is used for drying thermoplastic synthetics. Achievable remaining moisture: 0.1 % up to 0.09 %.

CONSTRUCTION

  • electronic temperature control
  • temperature protection
  • stainless steel plate internal tank
  • stainless steel extraction pot
  • adjustable fresh and circulation air slide
  • internal tank cover with cut out for conveyor
  • cleaning port at side wall

Galery

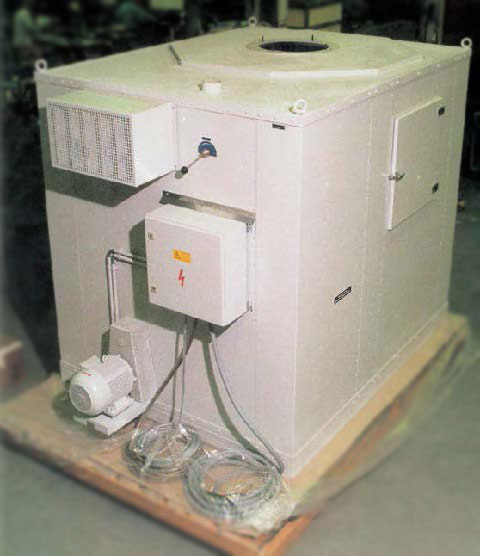

Example 3 - up to 1.500 kg



  • volume: 2,500 liter
  • filling weight: 1,500 kg
  • operating temperature: up to 140 °C
  • heat capacity: 39.5 kW
  • circulation air blower: 7.5 kW
  • air capacity: ca. 62 m³/min













This Silo Dryer is used for drying thermoplastic synthetics. Achievable remaining moisture: 0.1 % up to 0.09 %.

CONSTRUCTION

  • electronic temperature control
  • temperature protection
  • stainless steel plate internal tank
  • stainless steel extraction pot
  • adjustable fresh and circulation air slide
  • internal tank cover with cut out for conveyor
  • cleaning port at side wall

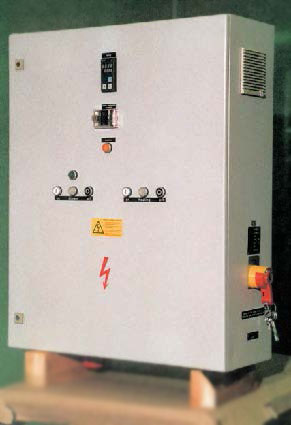

  • separate terminal box with connection lines
  • tropical isolated design

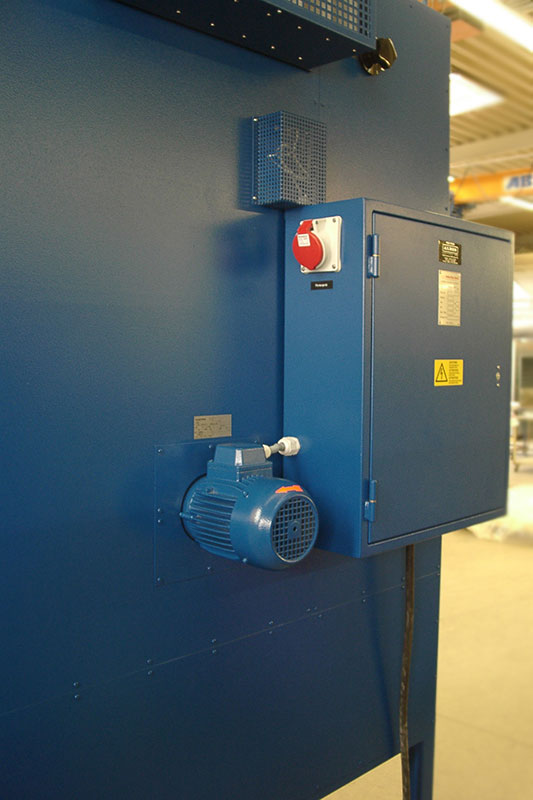

Galery
