Industrial Oven Systems and Pre-Heat devices

Ovens with charging trolleys

APPLICATIONS

The charging facility relieves the handling of heavy parts. There are charging facilities with equal loading height or complete retractable trolleys available. Smooth guide pulleys and/or fixed rollers are supporting the user with the loading of the oven. The design of the charging facility is aligned to the material to be heated. Attention is paid to an optimum ventilation of the to be heated elements.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting, multi-colour available as per customer request
  • labeling and documentation in various languages
  • galvanized, hot-dip aluminized steel plate or stainless steel internal tank
  • stable and massive charging frames for heavy materials are available
  • electronic PID temperature control with load circuit contactor or solid state relay
  • temperature control with self improvement function, process alarm for further processing available
  • multi-tank oven
  • doors on front and back side
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • program controller with up to 20 programs each with 16 segments
  • signal and warning light as per requested function
  • viewing window at oven door for visual control
  • Jshutter plates at air-entering side for subsequent temperature improvement
  • accessible execution with interior unlocking device for the door and if requested additional
  • emergency lamp corresponding to machinery guideline 2006/42/EG
  • multichannel diagram writer for documentation of temperature process
  • interfaces as per customer specification
  • up to 450°C
    operating temperature
  • air guidance
    horizontal/vertical
  • optimal
    tuned on the material
Example 1 - up to 450 °C - 900 x 700 x 600 mm - part# 1363174
The drying ovens as so-called shuttle ovens facilitate the handling of heavy parts. There are versions with loading aids at the same height or completely retractable bogie cars. Smooth-running swivel and / or fixed castors support the operator when loadin



  • 900 x 700 x 600 mm
    (width x depth x height)
  • operating temperature: up to 450°C
  • heat capacity: 13.5 kW
  • circulation air blower: 1.5 kW
  • air guidance: horizontal

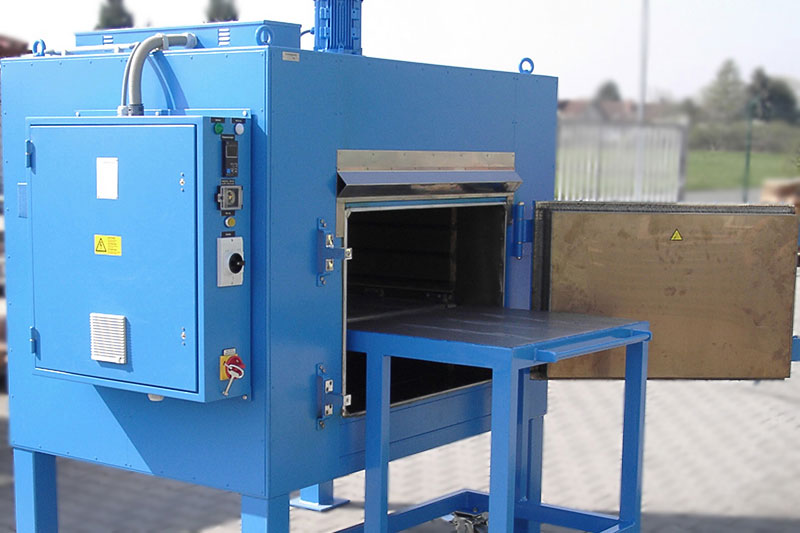

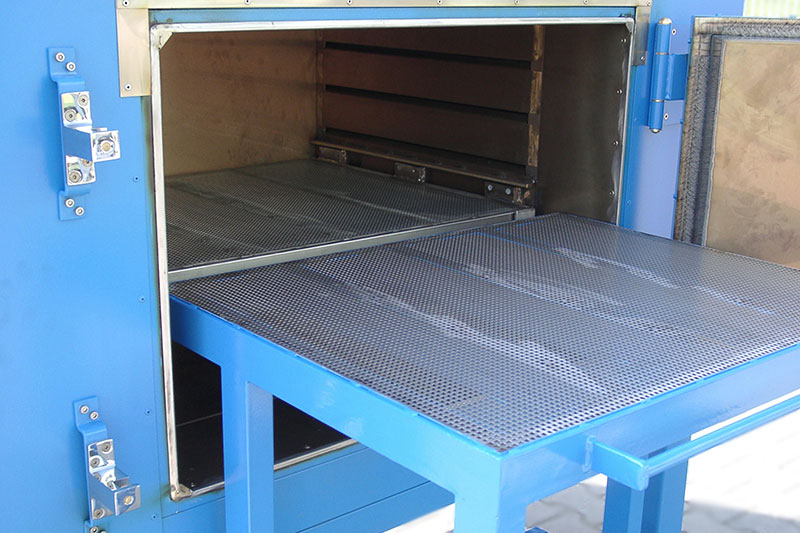

This Oven with charging trolley is used for heating up six steel nozzles with a total weight of 180 kg. The manual loading is supported by an equal surface facility aid with guide pulleys.

Construction

  • high-quality heating element with inconell/incoloy Tubular Heaters
  • 1.4301 stainless steel internal tank
  • 200.0 mm insulation to reduce heat loss
  • electronic controller with separate temperature protection
  • load circuit via low-wear solid state relay
  • painting: RAL 5015 gentian-blue structure

Gallery

Example 2 - up to 240 °C - 800 x 1,400 x 1,200 mm - part# 2039118
The drying ovens as so-called shuttle ovens facilitate the handling of heavy parts. There are versions with loading aids at the same height or completely retractable bogie cars. Smooth-running swivel and / or fixed castors support the operator when loadin



  • 800 x 1400 x 1200 mm
    (width x depth x height)
  • operating temperature: up to 240 °C
  • heat capacity: 15 kW
  • circulation air blower: 1.1 kW
  • air guidance: horizontal

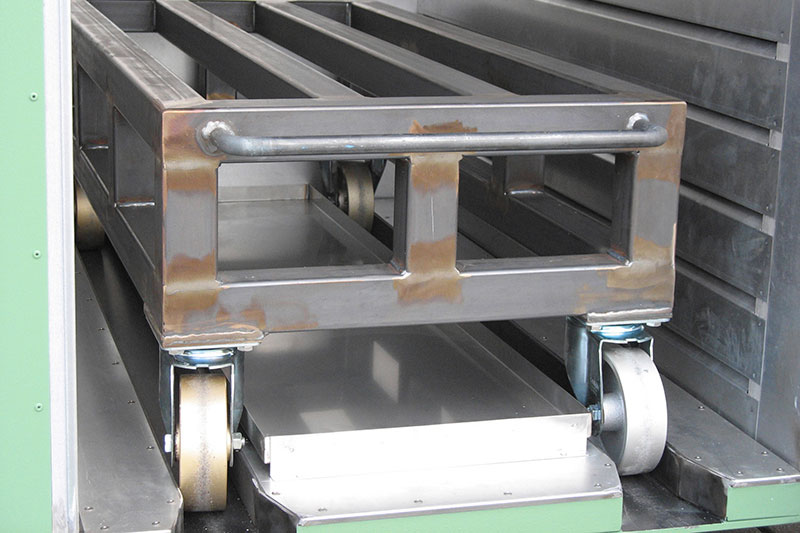

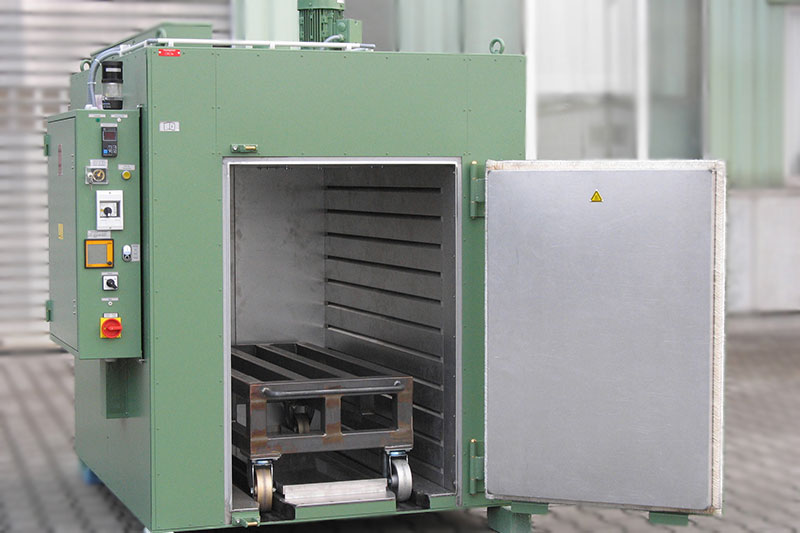

This Oven with charging trolley is used for heating up two casted engine coolers with a total weight of 600 kg. The loading is carried out by a charging trolley with guide pulleys and fixed rollers.

Construction

  • air slide for regulation of fresh and circulating air
  • Ialuminised steel plate internal tank

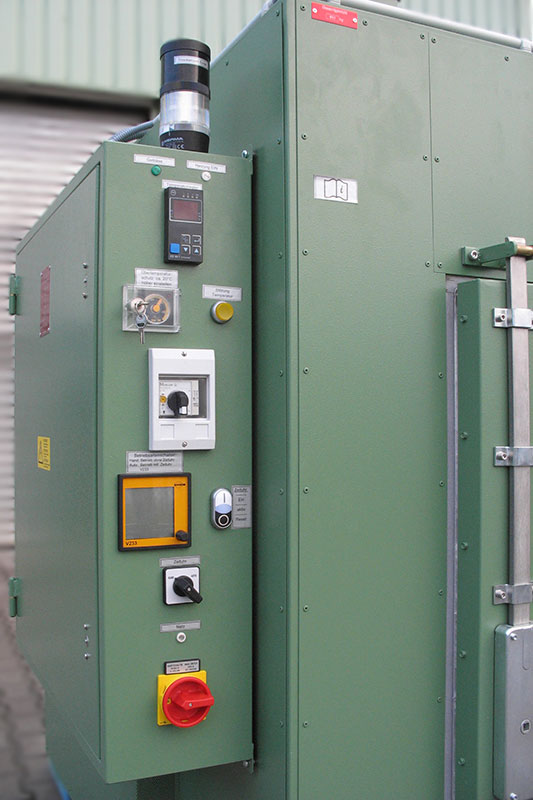

  • electronic controller with separate temperature protection
  • time lapse controller via timer inclusive visual signal after process
  • painting: RAL 6011 reseda-green structure

Gallery

Example 3 - up to 350 °C - 2,200 x 1,150 x 2,400 mm - part# 1364543
The drying ovens as so-called shuttle ovens facilitate the handling of heavy parts. There are versions with loading aids at the same height or completely retractable bogie cars. Smooth-running swivel and / or fixed castors support the operator when loadin



  • 2.200 x 1.150 x 2.400 mm
    (width x depth x height)
  • operating temperature: up to 350°C
  • heat capacity: 2 x 21.5 kW
  • circulation air blower: 2 x 1.1 kW
  • air guidance: horizontal
    with shutter plates for subsequent temperature improvement


This Oven with charging trolley is used for heating up four steel tubes Ø 400 x 2,000 mm long. The loading is carried out by two a charging trolleys with guide pulleys and fixed rollers.

Construction

  • 1.4301 stainless steel internal tank

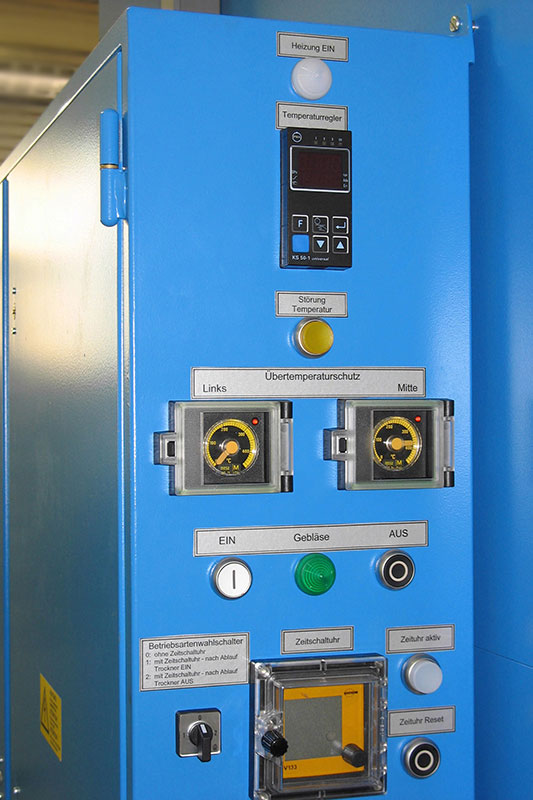

  • electronic controller with duplex separate temperature protection
  • time lapse controller via timer inclusive visual signal after process
  • holes at side walls with lockable lids to measure surface temperature of the tubes
  • door latch to open from inside

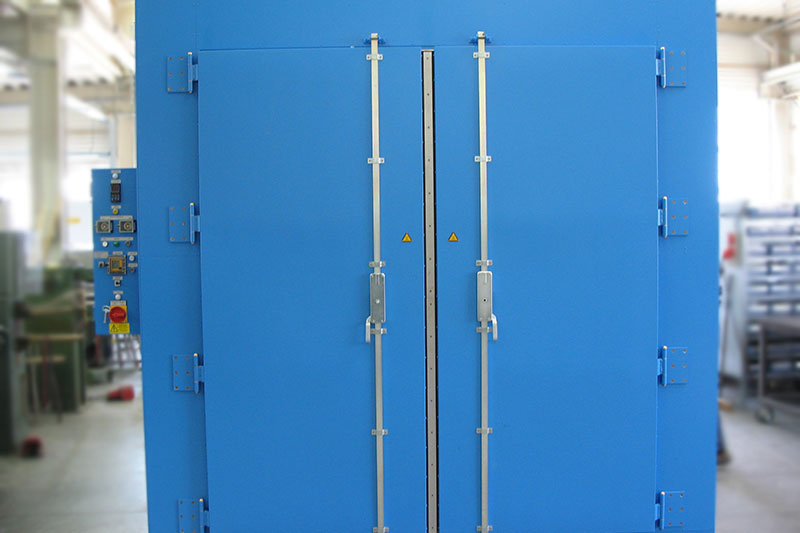

  • painting: RAL 5012 light-blue structure

Gallery
