Industrial Oven Systems and Pre-Heat devices

LABORATORY OVEN design example

Laboratory Ovens find their application within research, development, medicine, microbiology and much more industrial sectors. Examples are incubators, steaming cabinets or circulation cabinets. As multi-chamber oven they are used as well within chemistry

APPLICATIONS

Laboratory Ovens find their application within research, development, medicine, microbiology and much more industrial sectors. Examples are incubators, steaming cabinets or circulation cabinets. As multi-chamber oven they are used as well within chemistry, energy & refinery and as environment catalyses.

Options

  • voltage and wattage variations
  • operating temperature variations
  • varnish, multi-colour available as per customer request
  • labeling and documentation in various languages

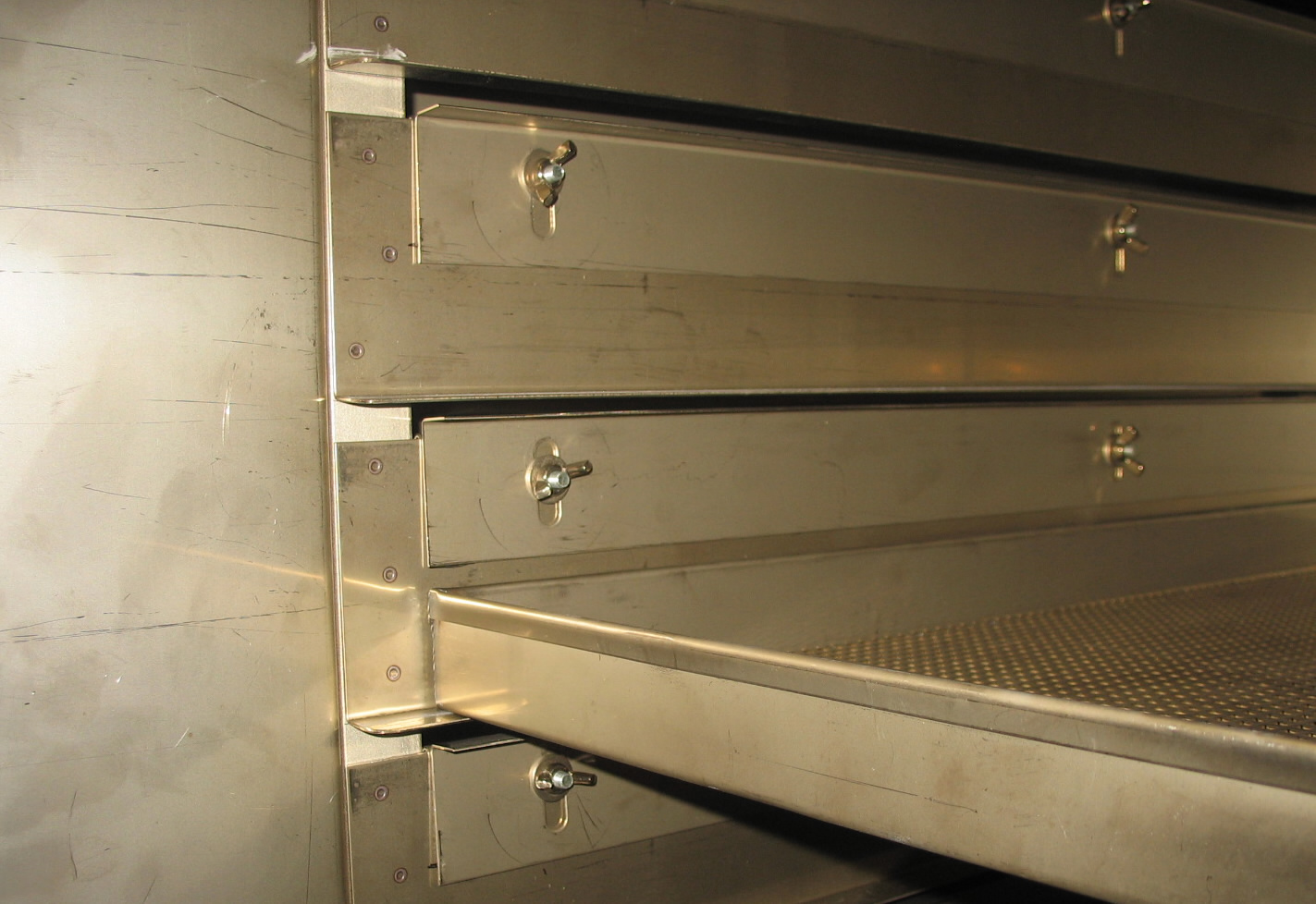

  • plate or grid bearing (drawers)
  • electronic program controller
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • additional 2nd measure point for external measuring
  • external control and monitoring possibility
  • viewing window at oven door for visual control
  • 1.4541 or 1.4301 Stainless steel external and internal tank
  • interior lightning
  • LT2 and LT3 standard designs optional with additional bottom heating available (with three-phase connection)
  • up to 300°C
    operating temperature
  • size
    to customer specification
  • heat capacity
    to customer specification

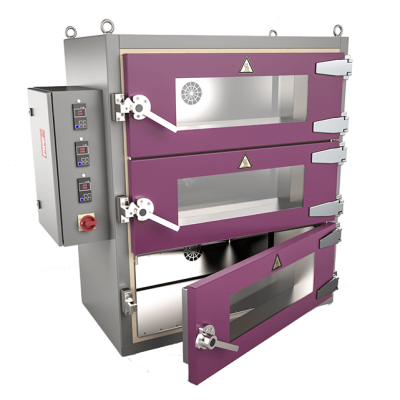

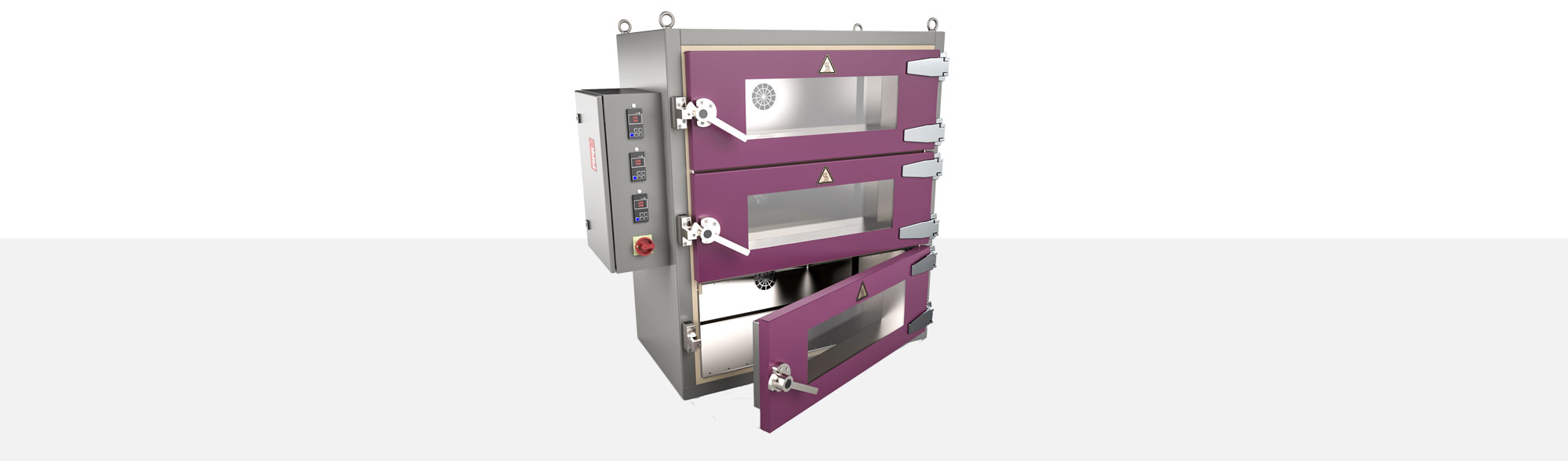

Example 1 - up to 300 °C - 3 zone laboratory Oven - part# 999888
Laboratory Ovens find their application within research, development, medicine, microbiology and much more industrial sectors. Examples are incubators, steaming cabinets or circulation cabinets. As multi-chamber oven they are used as well within chemistry



  • Laboratory Oven with 8 zones
  • operating temperature: up to 300 °C
  • heat capacity: 6 x 2.05 kW
  • circulation blower: 6 x 45W
  • cool-down blower and actuator



This Laboratory Oven is one of the main component of a high volume catalyser testing device where parallel reactor systems are used who require accuart temperature control. The construction of each system is individual to carry out the optimum of our customers requests.







Construction

  • complete integragation into customer control system
  • nonaging N type Thermocouples
  • user friendly doors partially at front and backside

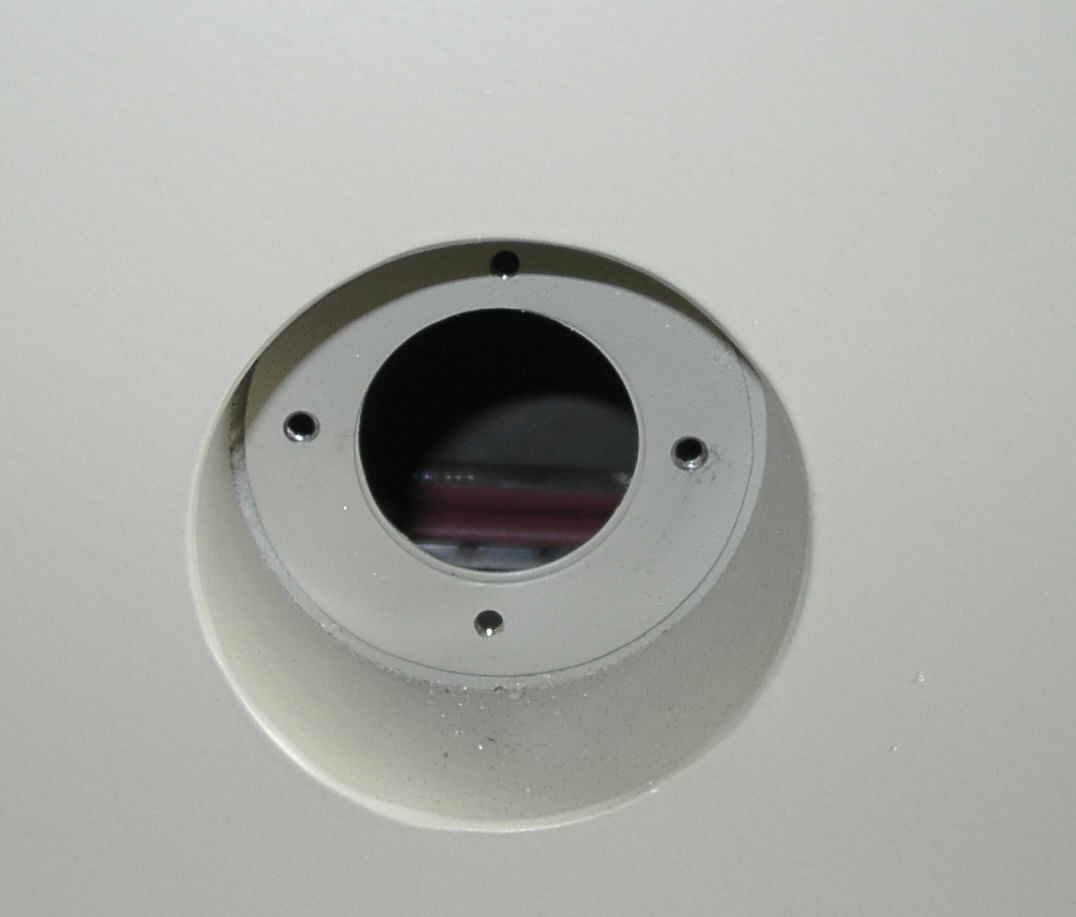

  • all breakthroughs between chambers are with compression proof mica insulated bushings

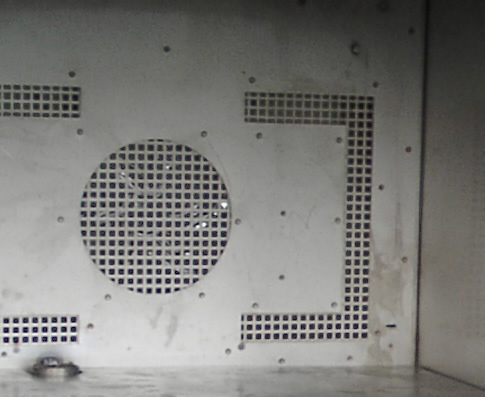

  • shutter plates at air entering sides

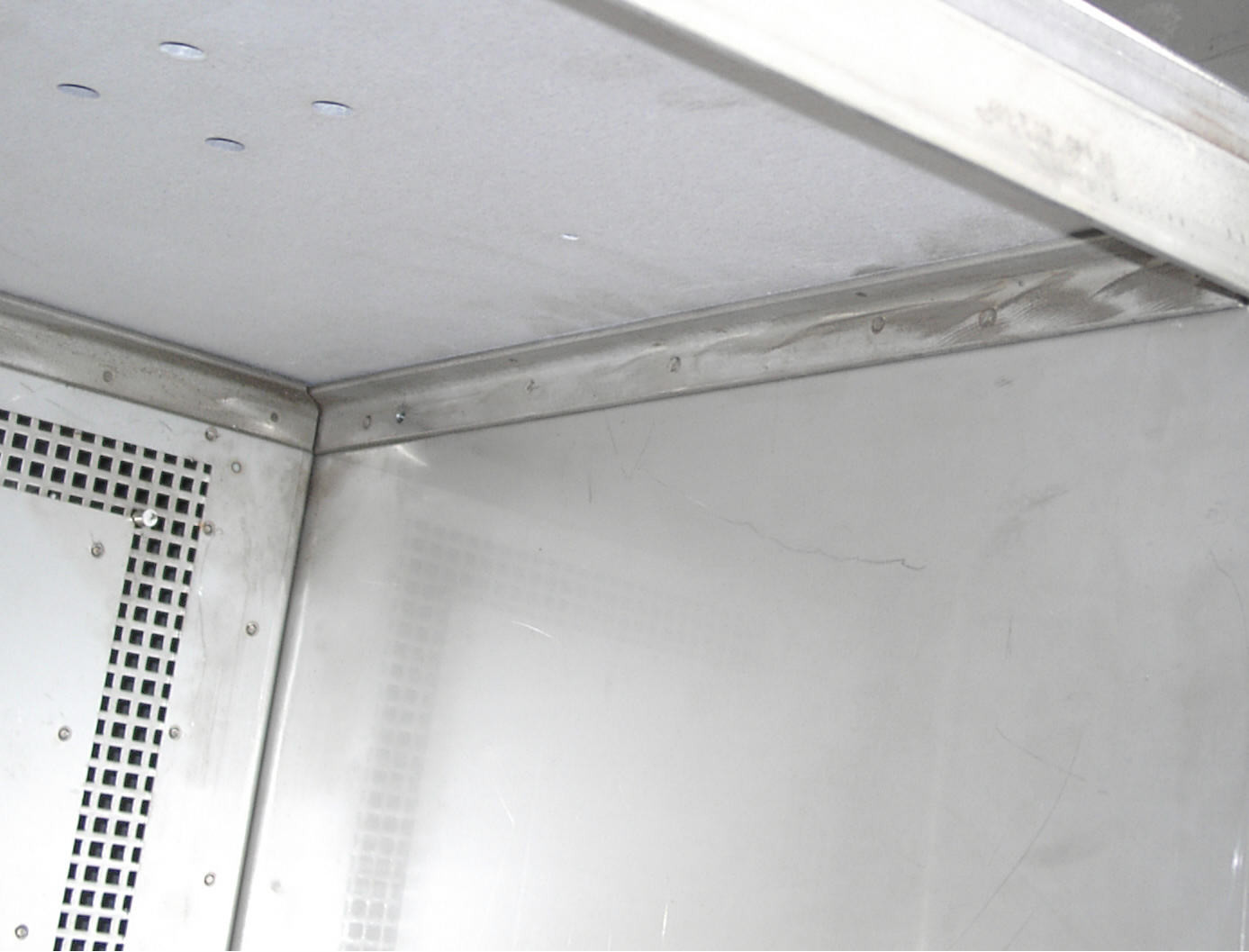

  • stainless steel plate internal tank
  • blower for selected cooling down phases of single chambers
