Industrial Oven Systems and Pre-Heat devices

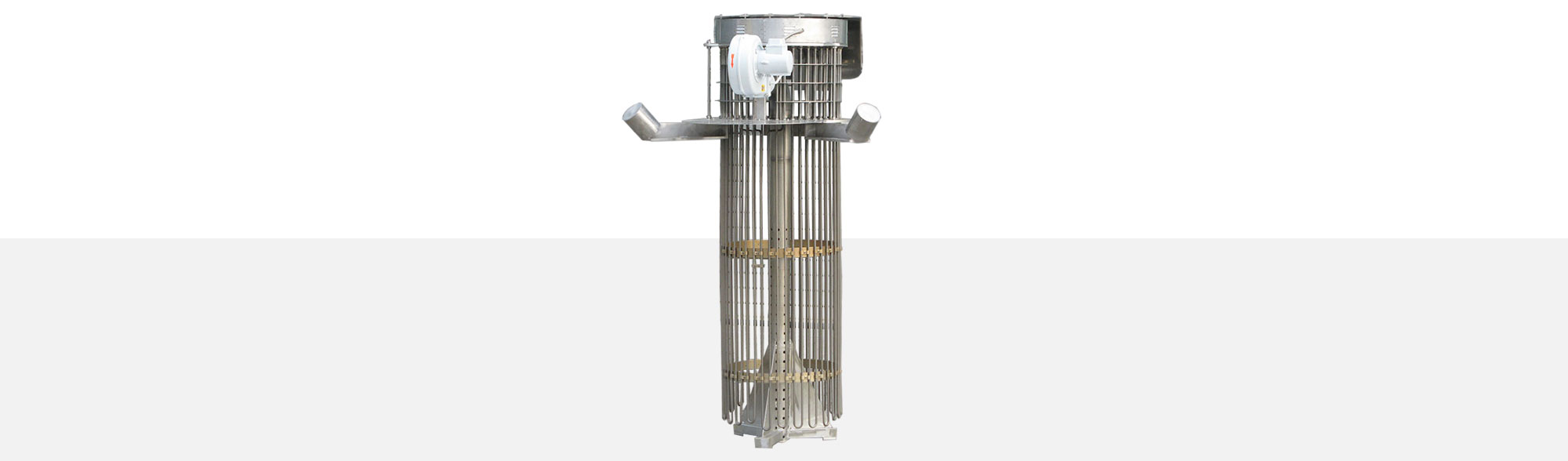

Crucible Ovens

Applications

Crucible Ovens are for baking out ramming mixtures to reduce the holding time after revision. The drying is improved with a low pressure blower a quick re-start of the crucible is given.

Options

  • voltage and wattage variations
  • operating temperature variations
  • painting as per customer request
  • other dimensions
  • flange supporting as per customer specification
  • 1.4876 or 2.4858 Tubular Heater material
  • labelling and documentation in various languages
  • temperature control with self-improvement function, process alarm for further processing available
  • electronic digital clock timer
  • operating hours counter
  • timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
  • interfaces as per customer specification
  • up to 950°C
    operating temperature
Example 1 - up to 400 °C - heat flange part# 1295368 and control unit part# 1295517



  • heat capacity: 25 kW
  • operating temperature: up to 400 °C
  • blower engine: 0.13 kW
  • air capacity: ca. 10 m³/min









This Crucible Oven is for baking out ramming mixtures to reduce the holding time after revision.

Construction

  • heat flange and temperature control are one complete pre-heat unit. Delivered to “plug and play” wired and inclusive of all leads.

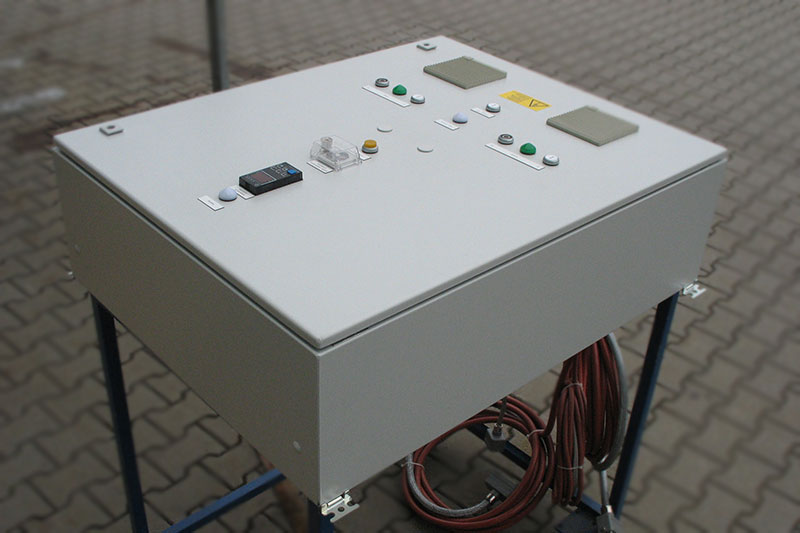

  • temperature control with:
  • electronic temperature control
  • electronic temperature protection
  • solid state relay load circuit
  • circuit element for customer slewing crane

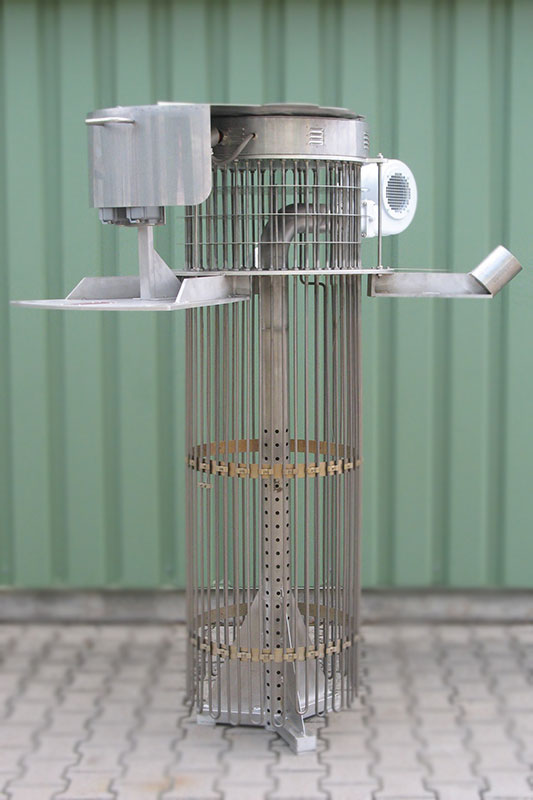

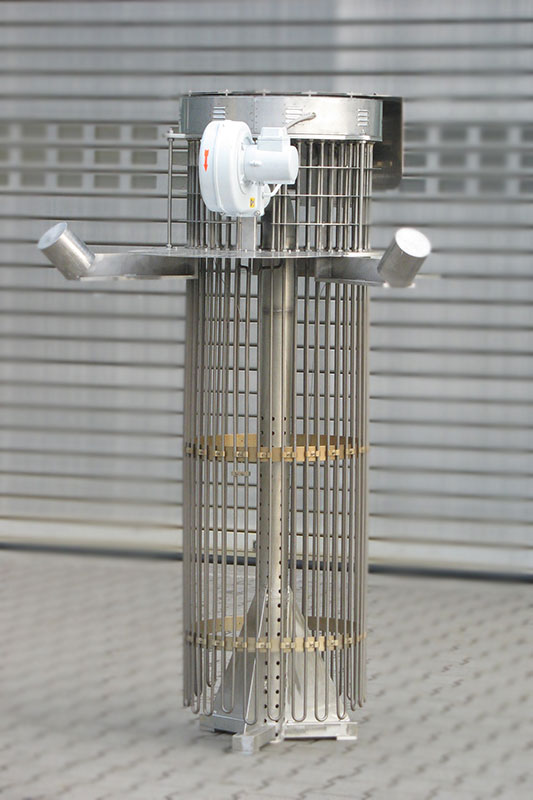

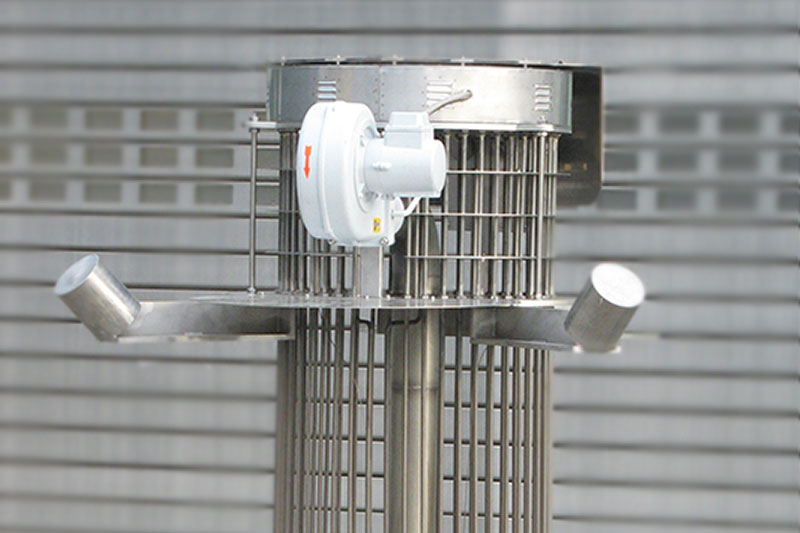

  • heat flange with
  • 24x 1.4828 Tubular Heaters
  • cold part inclusive radiation plates is reducing the temperature at the connection are
  • mineral insulated thermocouples for temperature control and monitoring

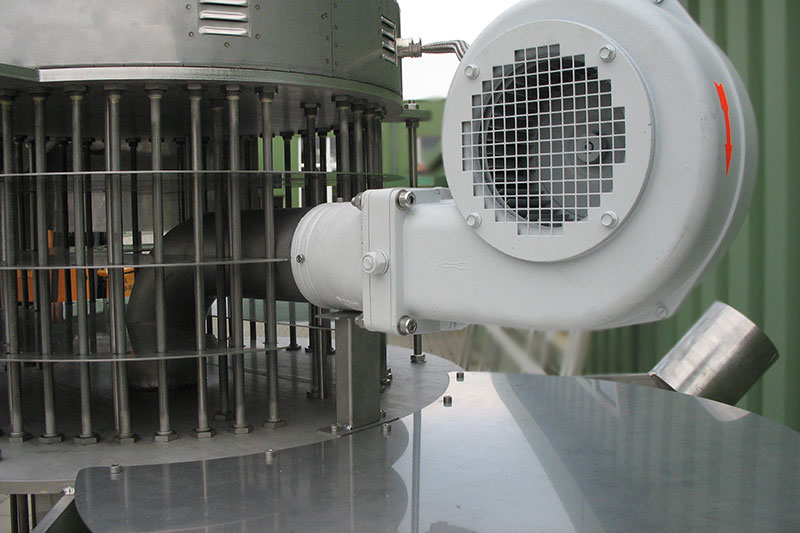

  • low pressure blower with manual butterfly valve reduces drying process
  • crane hook reachable after declining plug connector
