CONTROL UNITS

TRG

Control Unit, temperature monitoring, hot runner system, plasics processing, packaging industry, food industry, heat load monitoring, temperature monitoring, start-up circuitiry ,alarm output, Low Cost variant

APPLICATIONS

TRG Control Units offer an accurate control of electric Heaters as well as within laboratory as within research and development as within industries of polymer processing. The set temperature is continuously compared and controlled with the actual value. It is a manual comparison of the control behaviour. This control unit has a load exit and one temperature measuring point. TRG Control Units are low-cost devices.

Options

  • other operation voltage
  • other nominal output
  • special options
  • single and multi-zone devices
  • digital interfaces

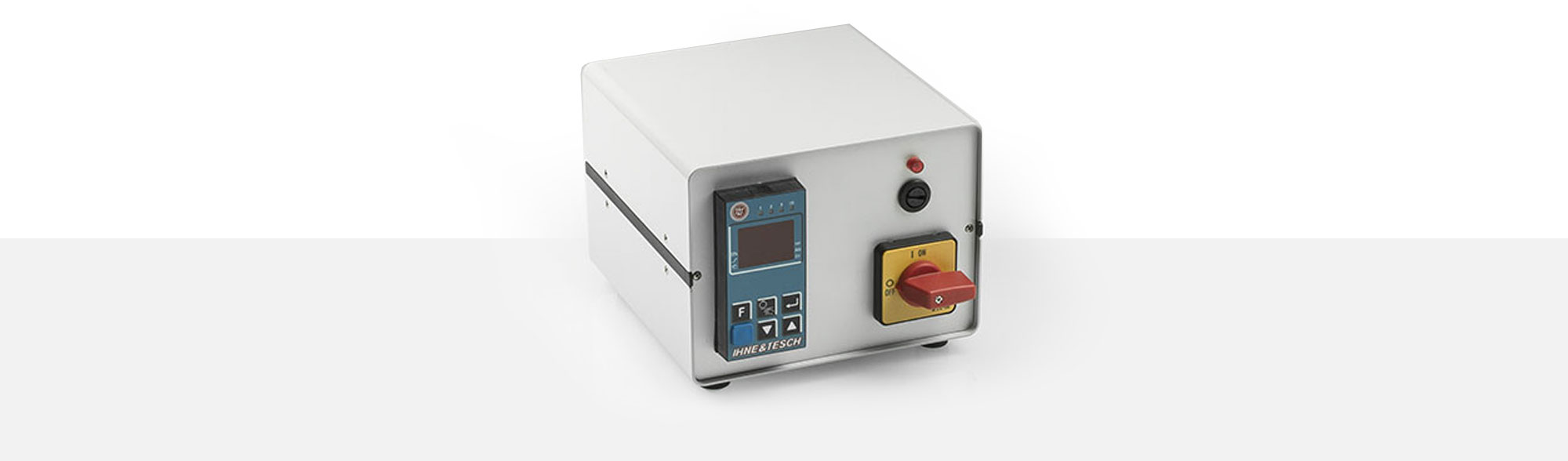

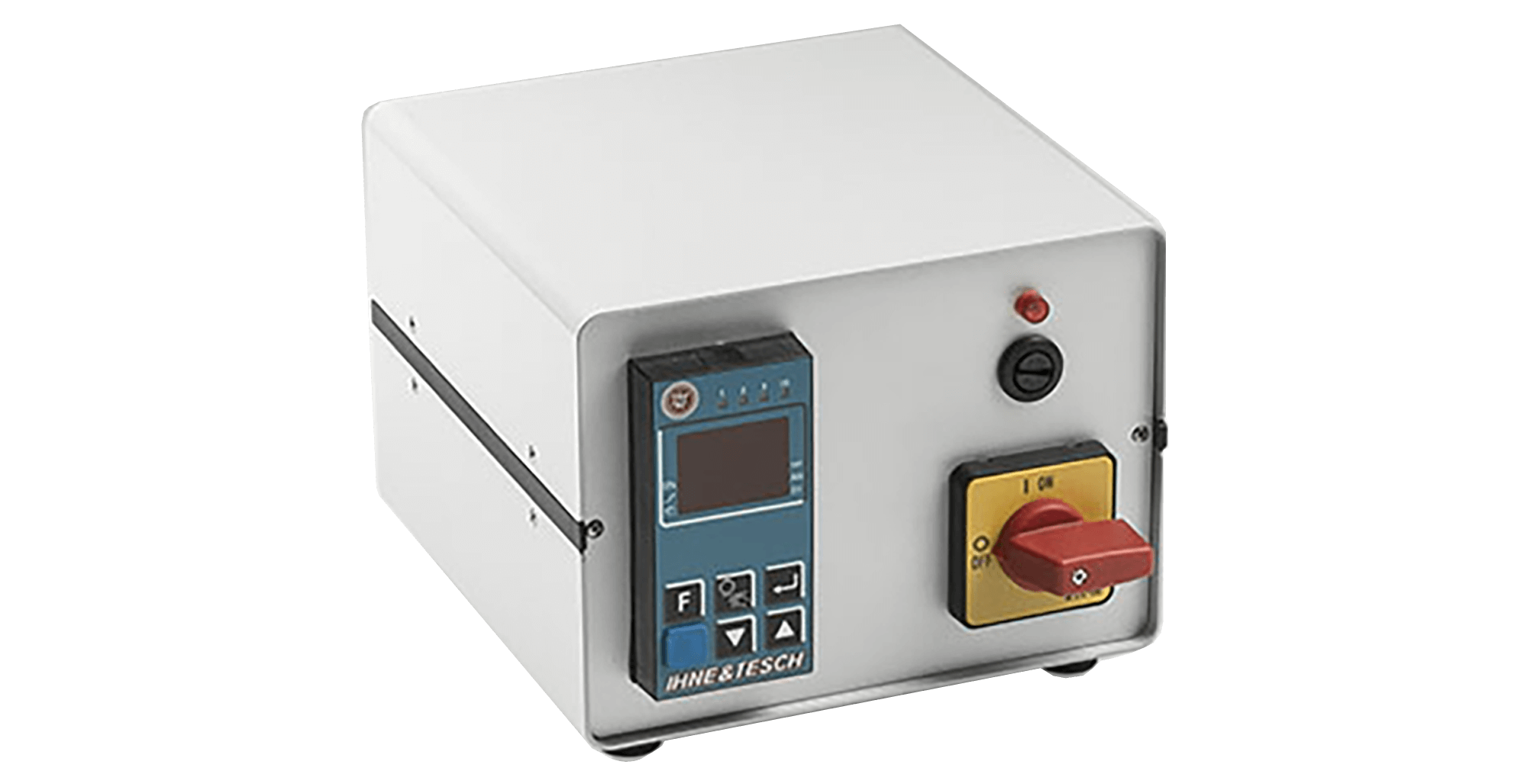

TRG Control Unit

Control Unit, temperature monitoring, hot runner system, plasics processing, packaging industry, food industry, heat load monitoring, temperature monitoring, start-up circuitiry ,alarm output, Low Cost variant
  TRG
operating voltage 230 Volt, 50/60Hz or 230/400 Volt with multi zone units
heat impulse display LED yellow
actual temperature display 4-digit LED display
normal temperature display 4-digit LED display
sensor L, J and K
thermocouple break monitoring error ist displayed
sensor polarity error ist displayed
control mode 2-point D-PID
control settings automatic adaption
heat load monitoring -
temperature monitoring -
start-up circuitiry -
control temperature take over with temperature sensor loss -
