CONTROL UNITS

DTG

Control Unit, temperature monitoring, hot runner system, plasics processing, packaging industry, food industry, heat load monitoring, temperature monitoring, start-up circuitiry ,alarm output, Low Cost variant

APPLICATIONS

The self-improvement of DTG devices allows an accurate temperature control. Temperature set and actual value, heat current set and actual value as well as actuating variable, parameters and fault reports are digital indicated. The devices have a semiconductor relay and heat current monitoring related to heat element failure and interruption. The connection of standard temperature sensor types (L, J, K and PT100) is possible.

  • other operation voltage
  • other nominal output
  • special options
  • single and multi-zone devices
  • digital interfaces

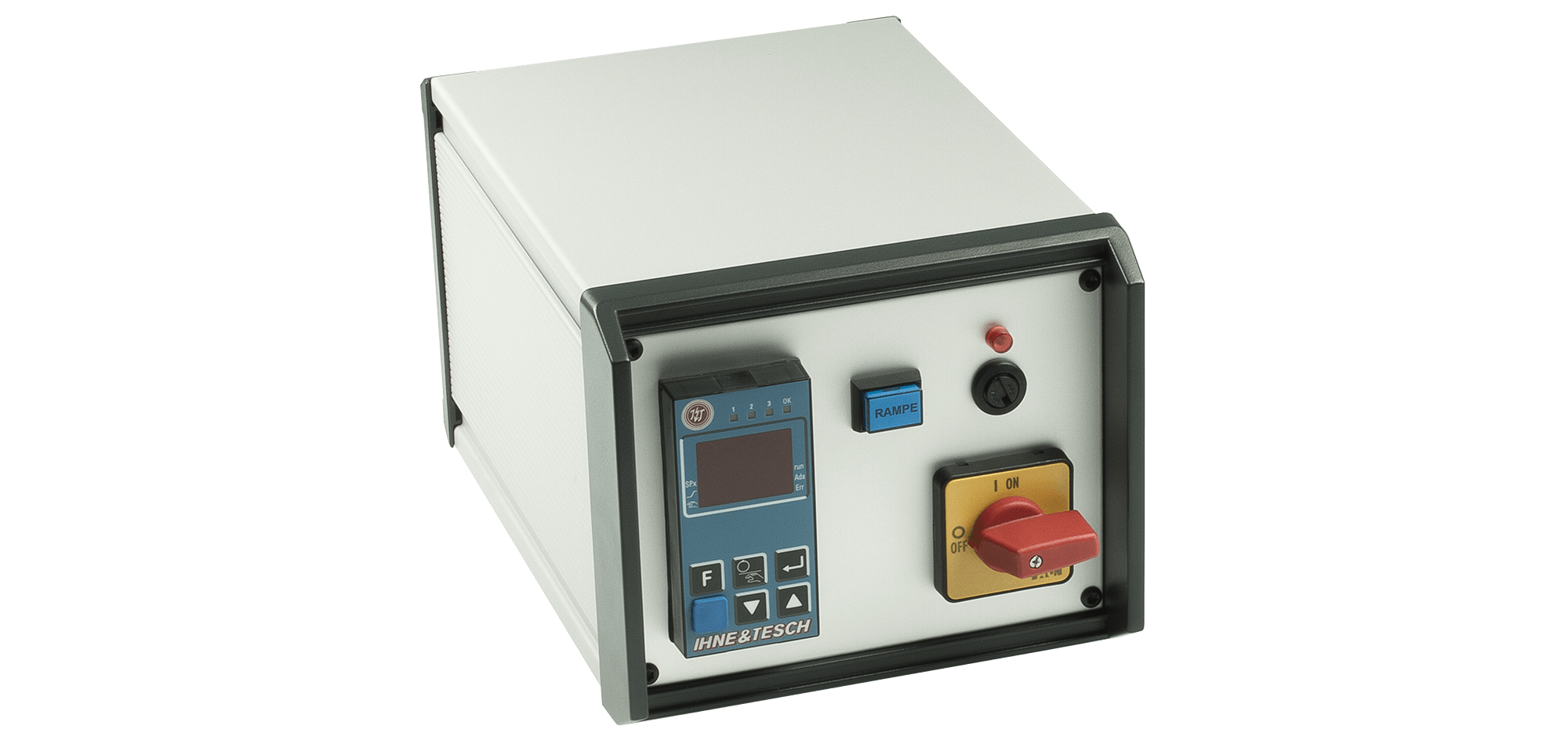

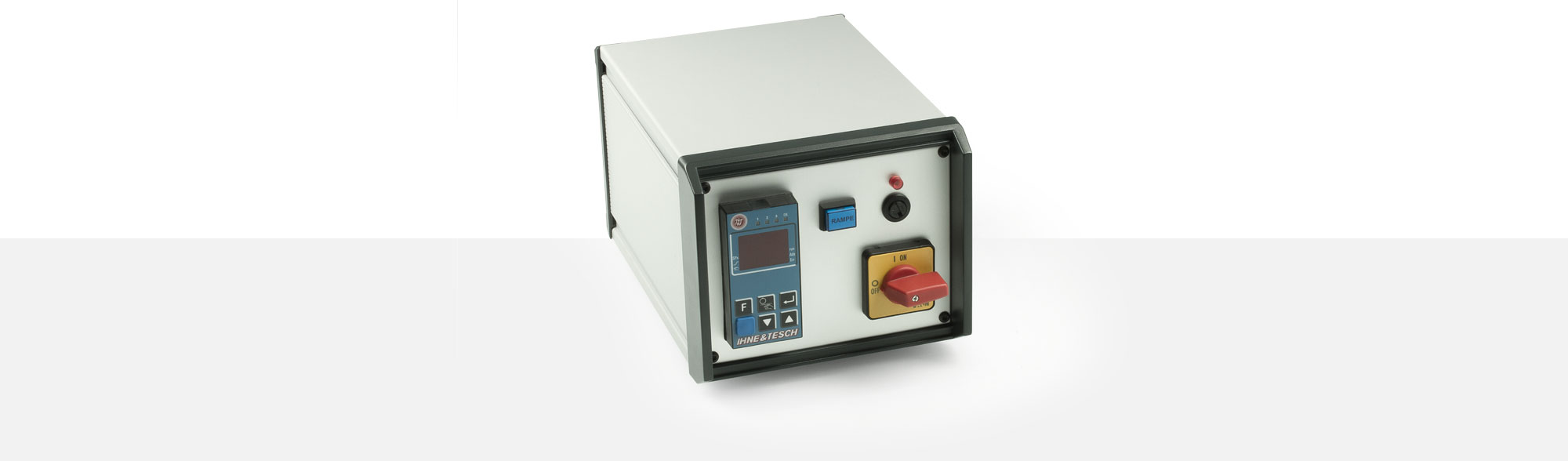

DTG Control Unit

Control Unit, temperature monitoring, hot runner system, plasics processing, packaging industry, food industry, heat load monitoring, temperature monitoring, start-up circuitiry ,alarm output, Low Cost variant
  DTG
operating voltage 230 Volt, 50/60Hz or 230/400 Volt with multi zone units
heat impulse display LED yellow
actual temperature display 4-digit LED display
normal temperature display 4-digit LED display
sensor L, J and K + PT100
thermocouple break monitoring error ist displayed
sensor polarity error ist displayed
control mode 2-point D-PID
control settings automatic adaption
heat load monitoring limit value
temperature monitoring relative or absolute limit value
start-up circuitiry ---
control temperature take over with temperature sensor loss ---
