CARTRIDGE HEATERS

PDH/PZH

APPLICATIONS

Cartridge Heaters find their usage especially in tool heaters, die slots, special machinery construction, screen changers and filter devices in the polymer processing industry and with packaging machinery.

Options

various dimensions (Ø/length)
voltage and wattage variations
various lengths and types of leads
capacity tolerance ± 5 % on request
with contact or cable fitting
with terminal box
with screw contacts
with customised capacity distribution or according to our standard distribution
with controllable zones
with integral Thermocouple from Ø10 mm
leads with various plugs

up to 750°C
operating temperature at cartridge surface
PDH
-0.02 bis -0.06 mm diameter tolerance
PZH
±0.02 mm diameter tolerance

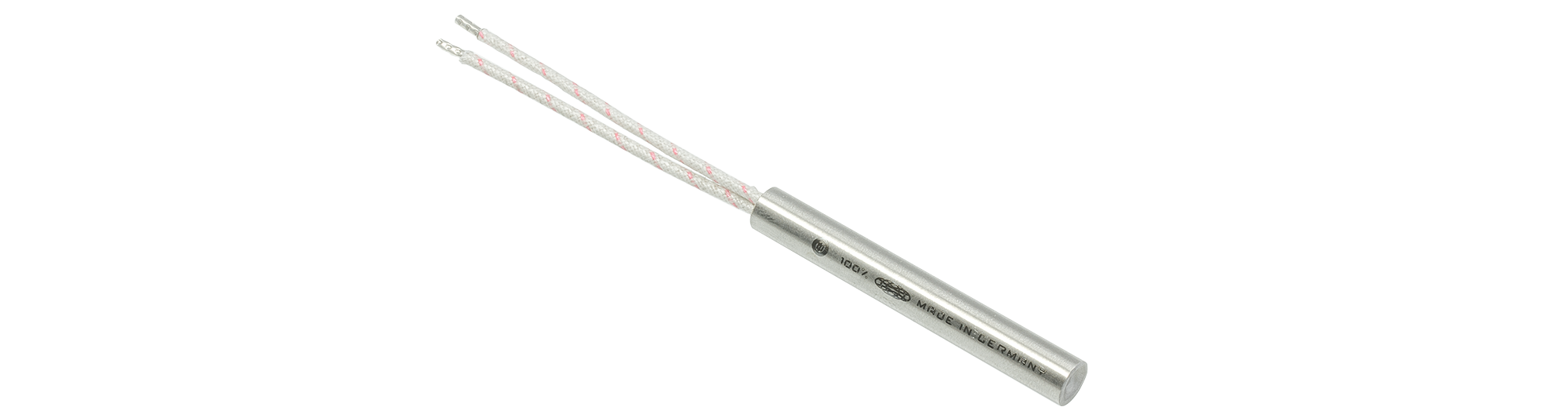

PDH/PZH Cartridge Heater

Connection options

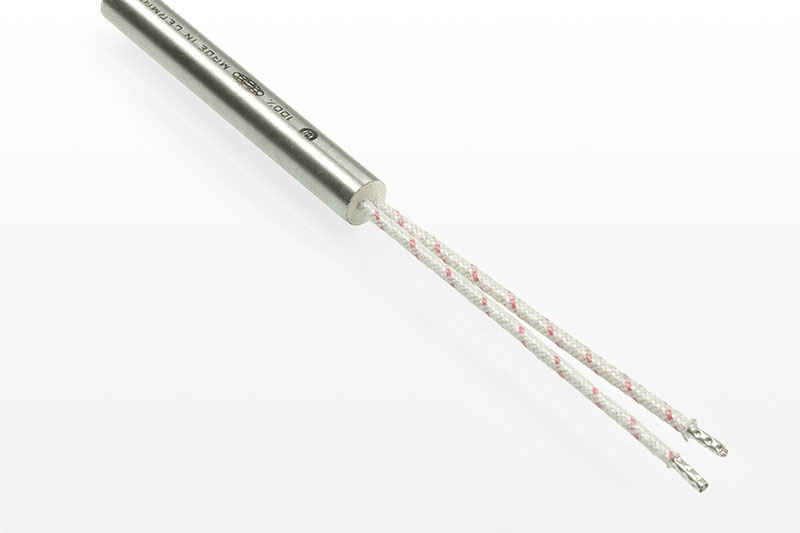

connection option A: fibreglass insulated nickle leads up to 250 °C (GLS 250), 400 °C (GLS 400) or 700 °C (GLS 700)

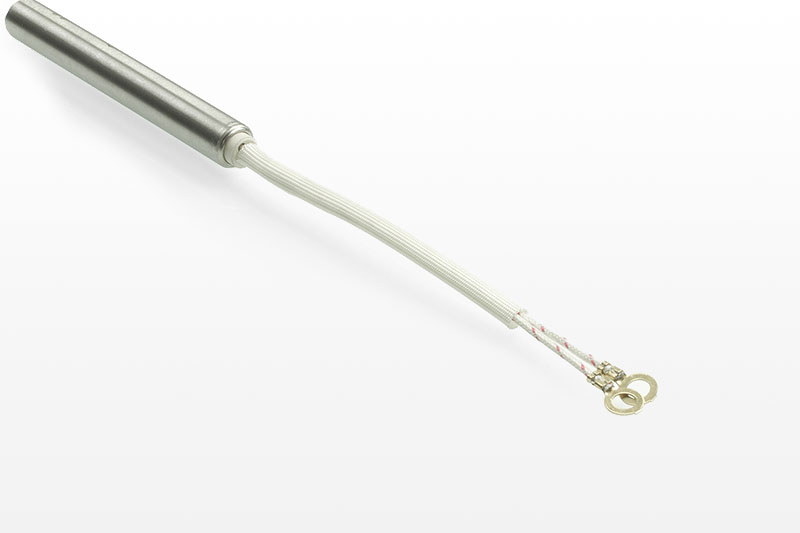

connection option B: additonal covered with fibre glas hose coated (250 °C) or uncoated (400 °C)

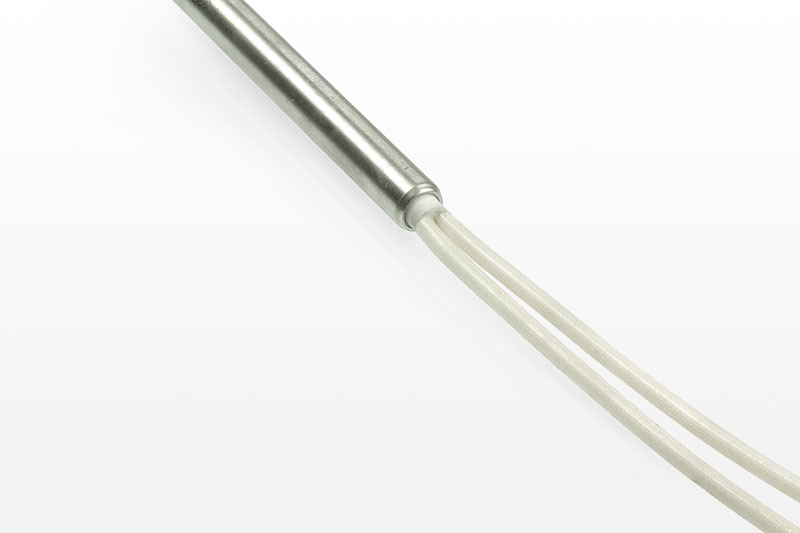

connection option C: single leads additionally covered with coated fibre glass hose (250 °C), uncoated (400 °C)

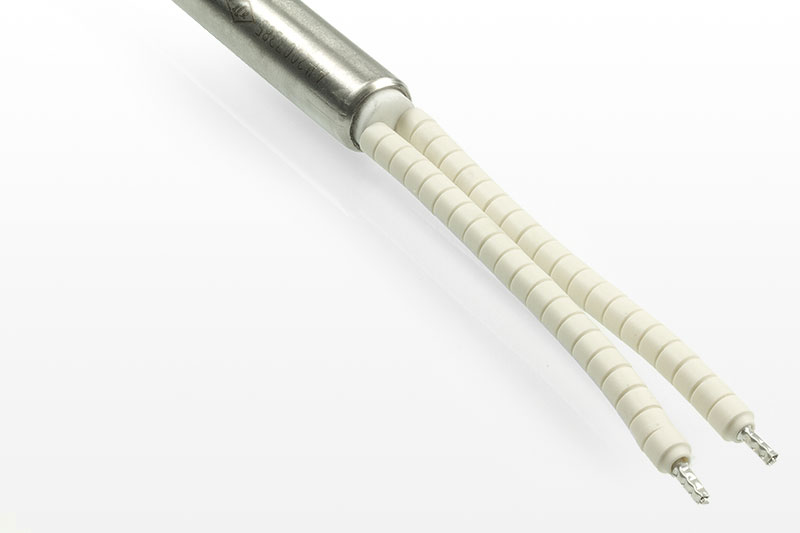

connection option E: high temperature stable leads with ceramic beads up to 600 °C

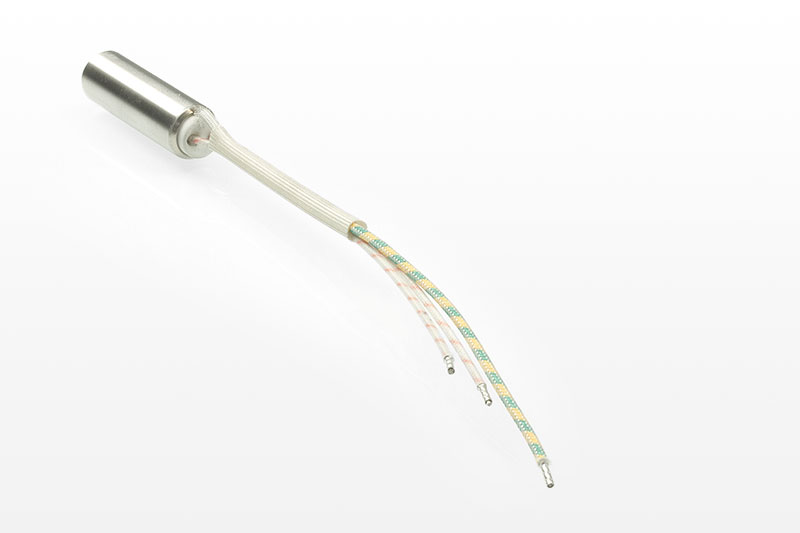

connection option F: with earth wire

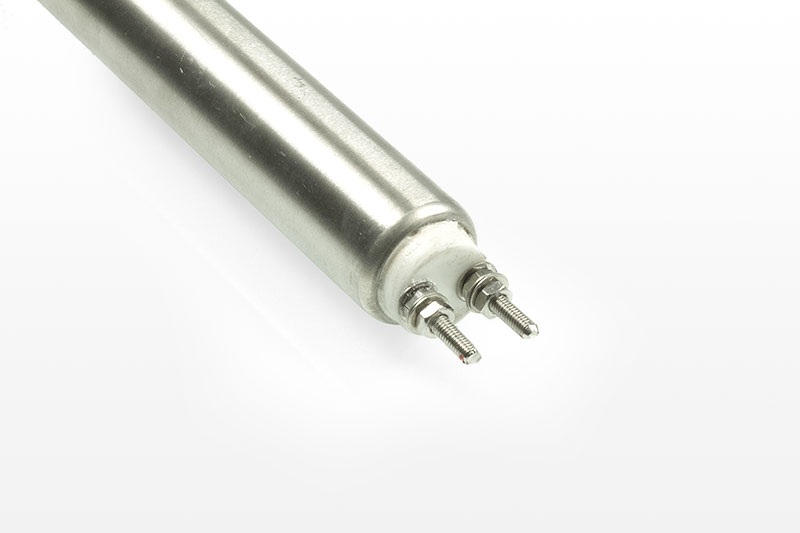

connection option G: with screw terminals

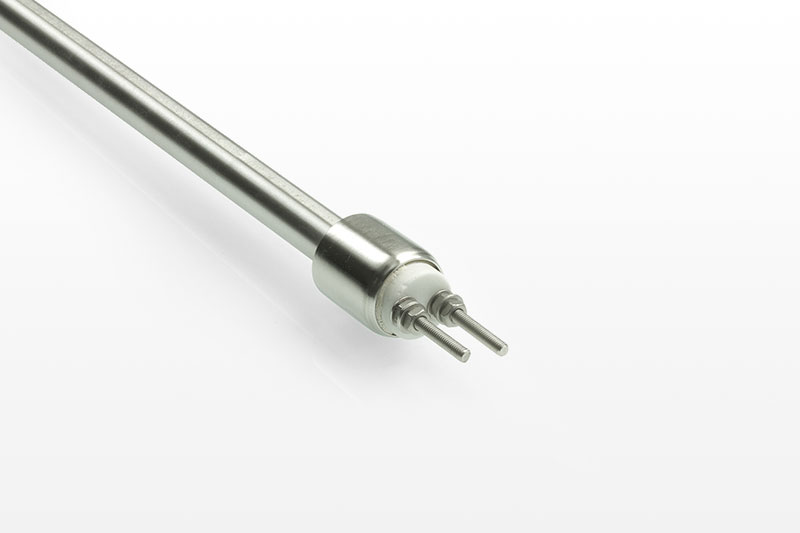

connection option H: screw terminals for smaler diameters

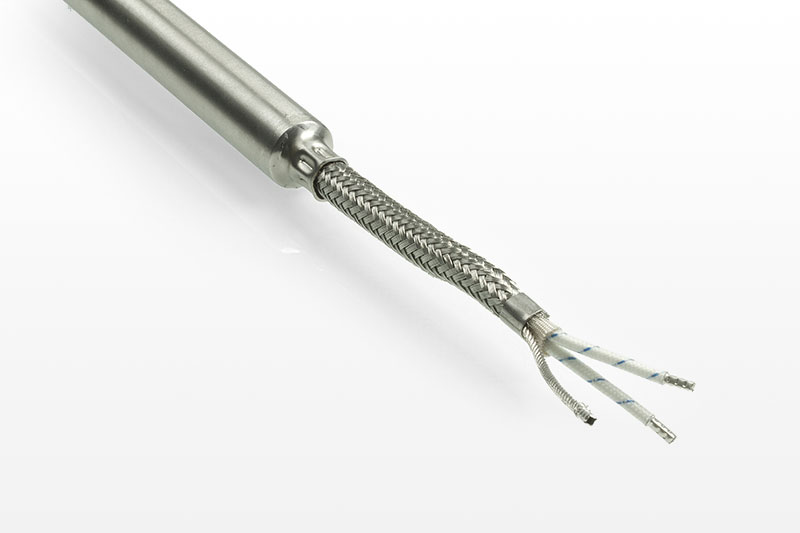

connection option I: 3-core cable and metal braided hose steel or stainless steel + earth wire up to 250 °C / 400 °C / 700 °C

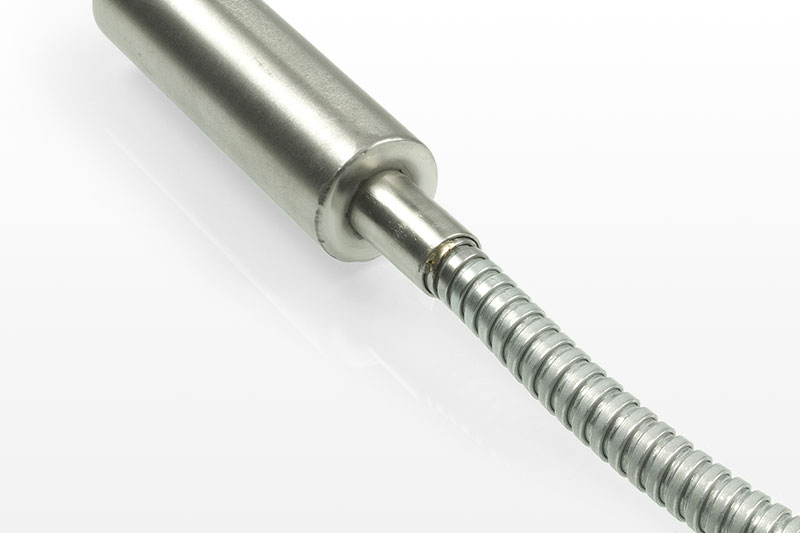

connection option K: 3-core cable and spiral hose steel or stainless steel + earth wire up to 250 °C / 400 °C / 700 °C

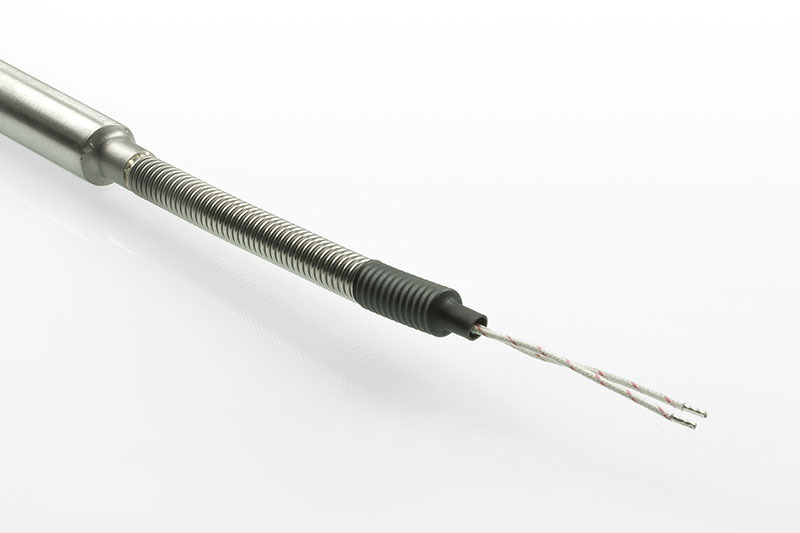

connection option K: additonally with corrugated hose + earth wire up to 250 °C / 400 °C / 720 °C
connection option L: moisture protection, head cast with silicone + silicone or PTFE leads up to 200 °C

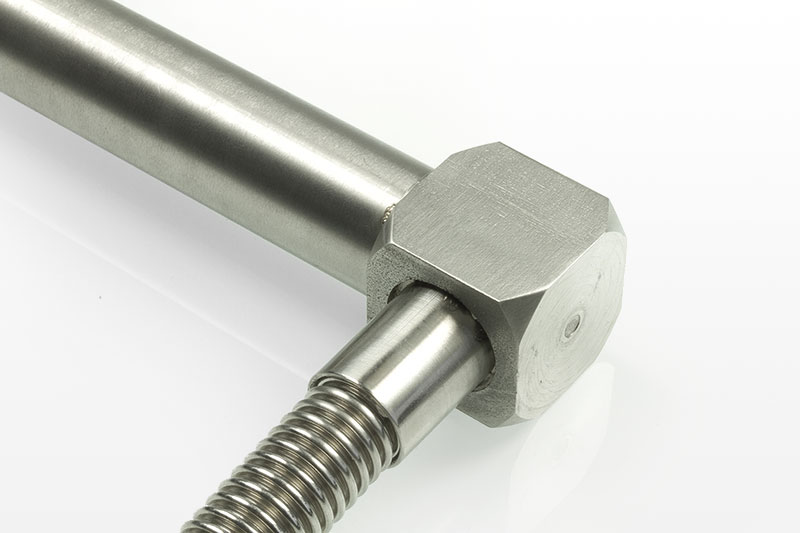

connection coption M: angular block with metal braided hose + earth wire

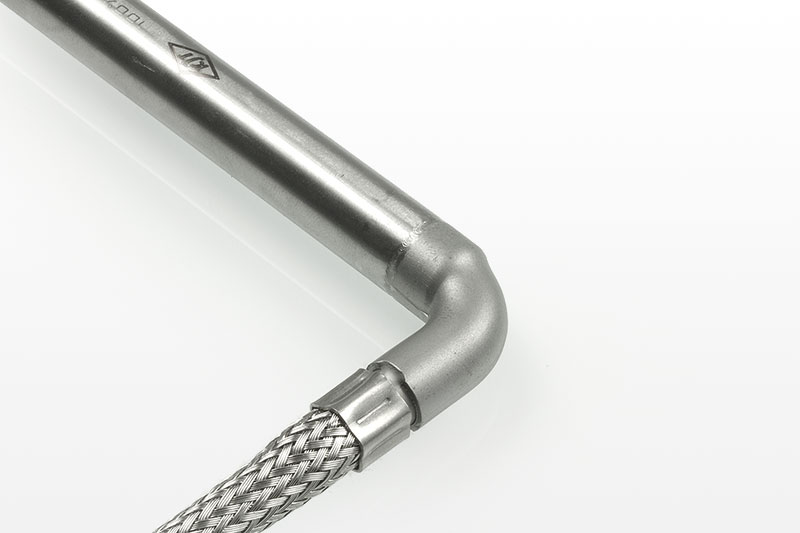

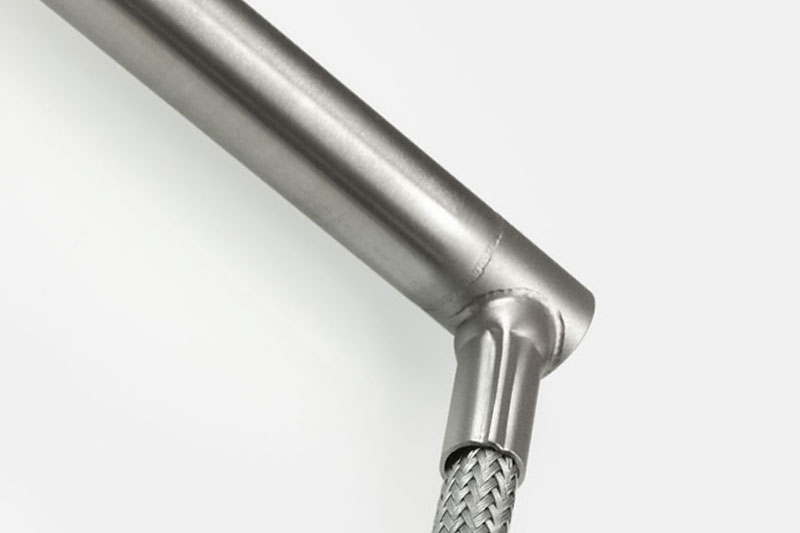

connection option N: angular tube with metal braided hose + earth wire
connection option NR: round block rectangulair with metal braided hose + earth wire for diameter 16 mm

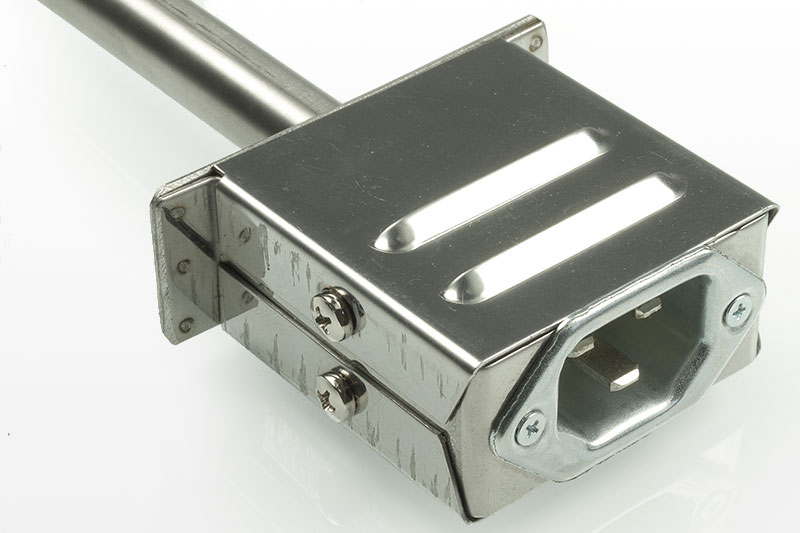

connection option O: + plug eg. KO 300 16A 250V

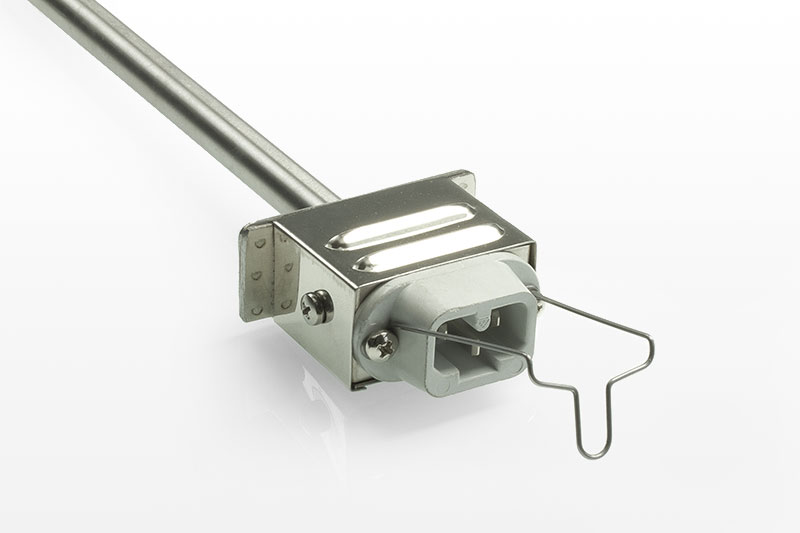

connection option Q: + socket eg. KO110/T200 10A/250V available as well with satety stirrup

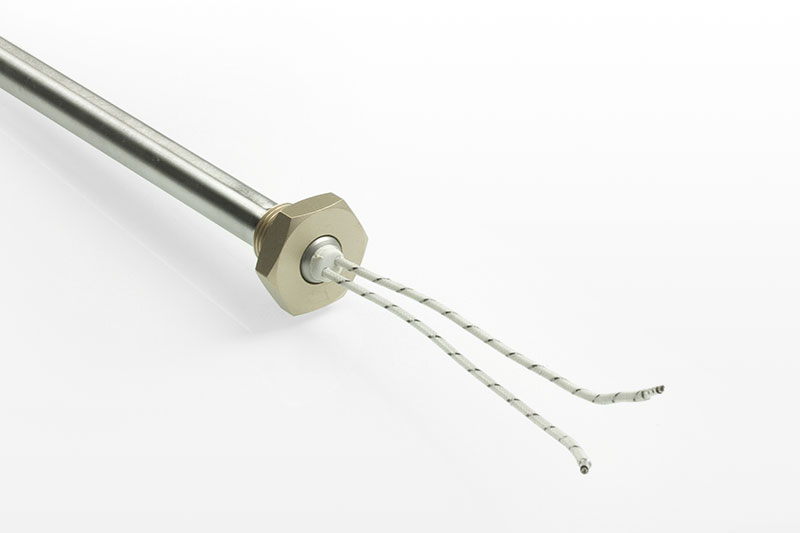

connection option S: with steel or brass screw in nipple for fastening or as disassembly kit

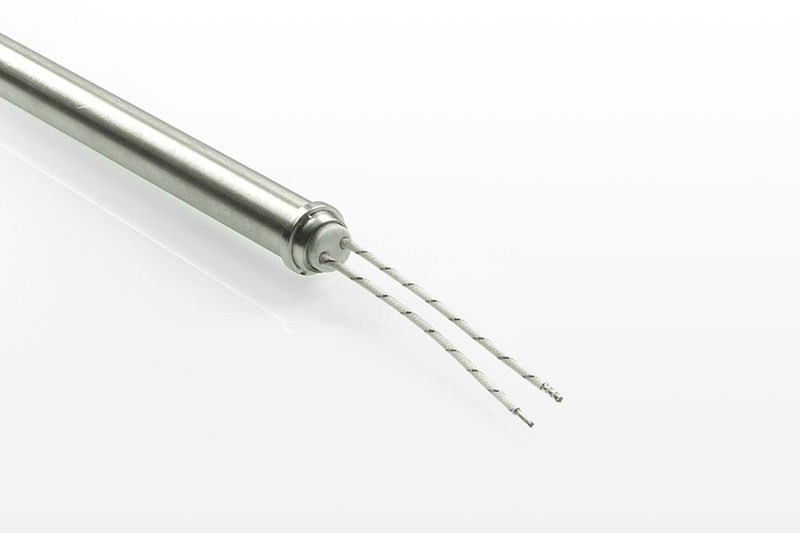

Cartridge Heater with stop ring

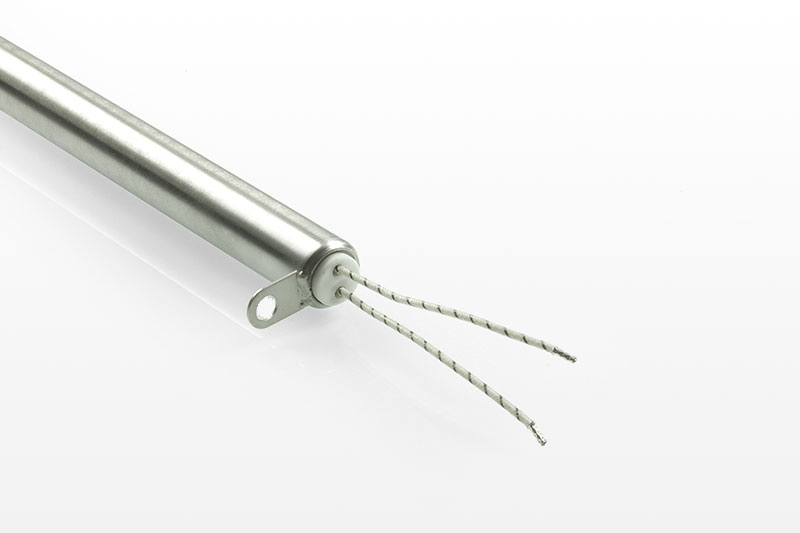

Cartridge Heater with PAF fastening clip

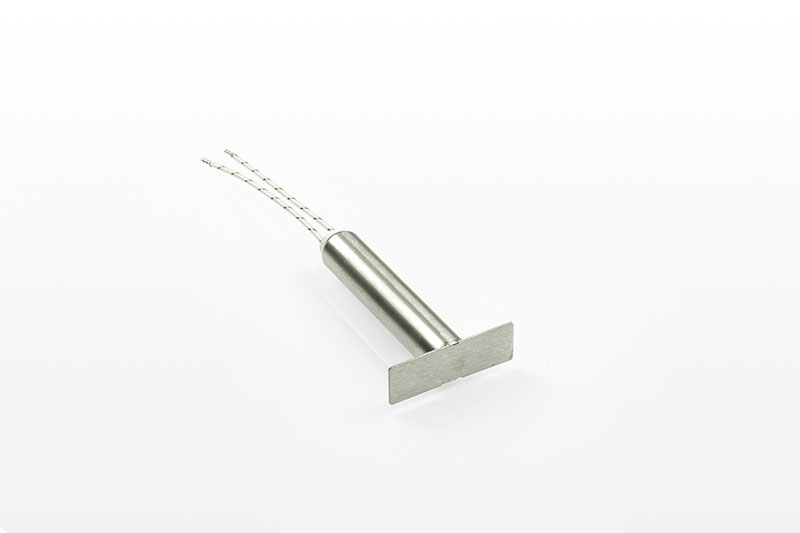

Cartridge Heater with base plate
Cartridge Heater with stuc

Ground

welded
