CARTRIDGE HEATERS

HPS/HPZ

APPLICATIONS

Cartridge Heaters find their usage especially in tool heaters, die slots, special machinery construction, screen changers and filter devices in the polymer processing industry, with packaging machinery and for air heating.

Options

various dimensions (Ø/length)
voltage and wattage variations
various lengths and types of leads
capacity tolerance ± 5 % on request
with contact or cable fitting

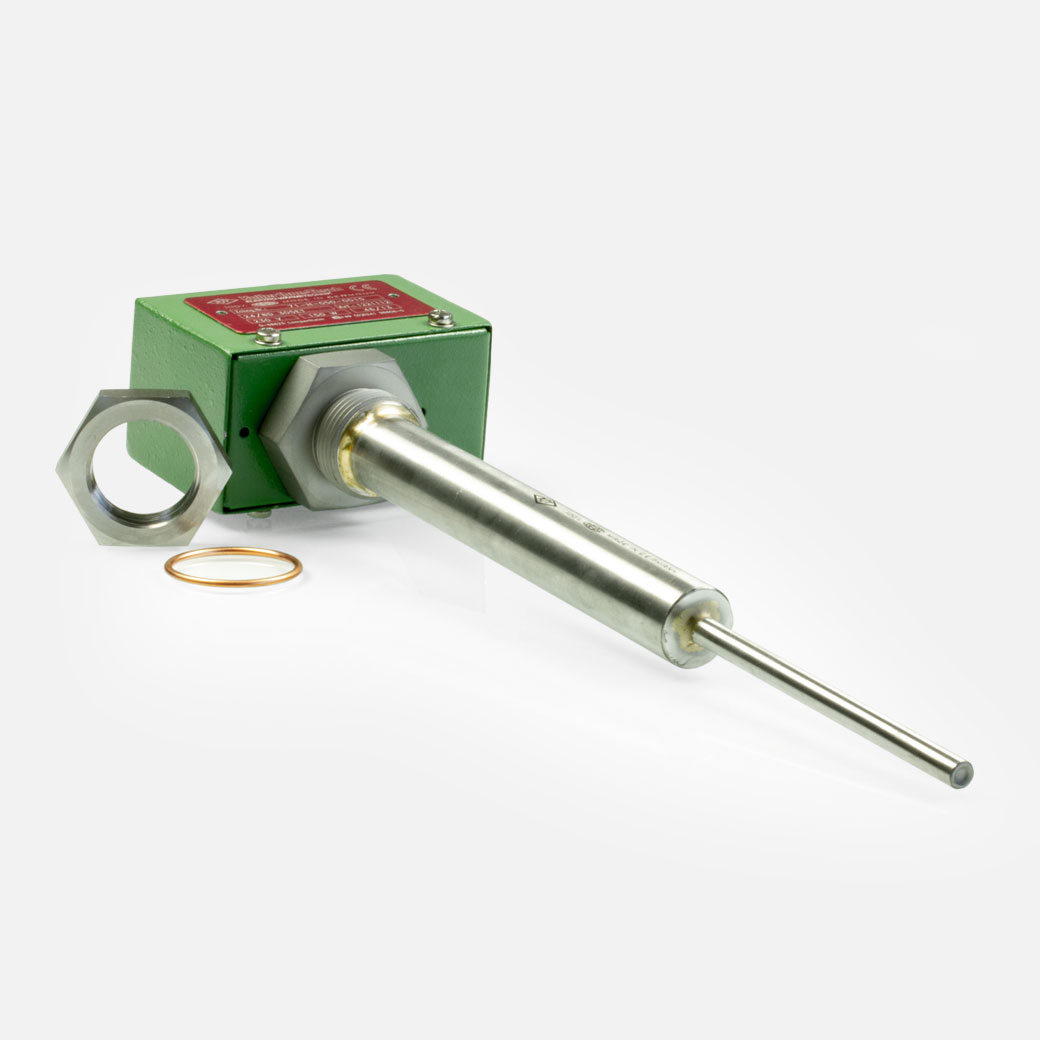

with terminal box
with screw contacts
with customised capacity distribution or according to our standard distribution
with controllable zones
with integral Thermocouple from Ø6.8 mm
leads with various plugs

up to 750°C
operating temperature at cartridge surface
H7
hole tolerance
from Ø6.8 mm
with integral thermocouple

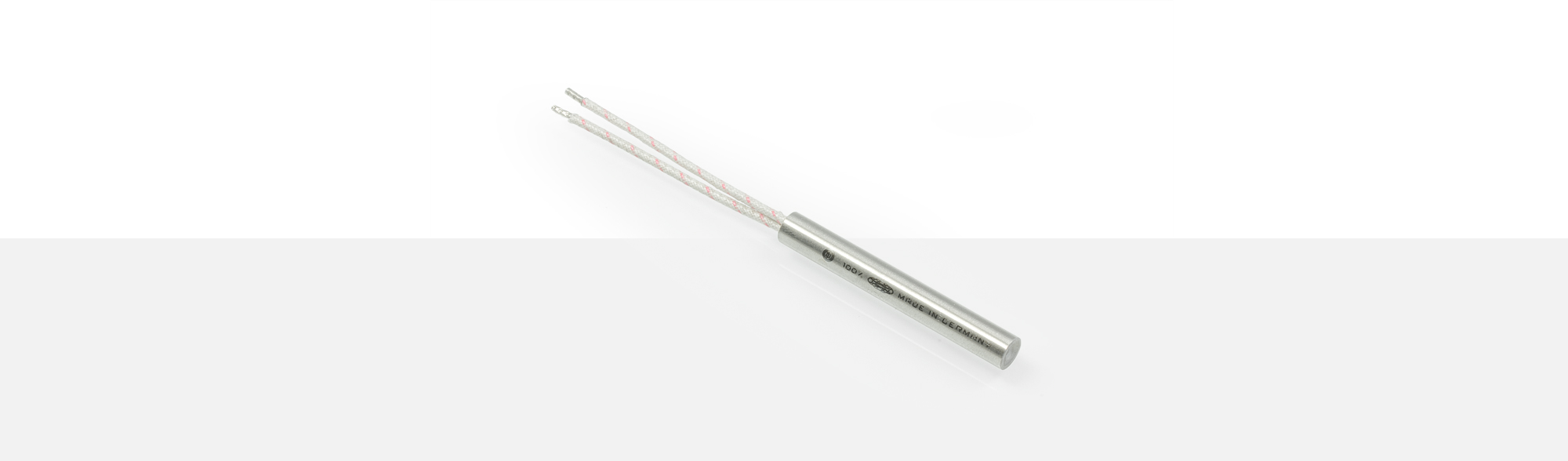

HPS/HPZ Cartridge Heater

Connection options

connection option A: fibreglass insulated nickle leads up to 250 °C (GLS 250), 400 °C (GLS 400) or 700 °C (GLS 700)
connection option B: additonal covered with fibre glas hose coated (250 °C) or uncoated (400 °C)
connection option C: single leads additionally covered with coated fibre glass hose (250 °C), uncoated (400 °C)
connection option E: high temperature stable leads with ceramic beads up to 600 °C
connection option F: with earth wire
connection option G: with screw terminals
connection option H: screw terminals for smaler diameters
connection option I: 3-core cable and metal braided hose steel or stainless steel + earth wire up to 250 °C / 400 °C / 700 °C
connection option K: 3-core cable and spiral hose steel or stainless steel + earth wire up to 250 °C / 400 °C / 700 °C
connection option K: additonally with corrugated hose + earth wire up to 250 °C / 400 °C / 720 °C
connection option L: moisture protection, head cast with silicone + silicone or PTFE leads up to 200 °C
connection coption M: angular block with metal braided hose + earth wire
connection option N: angular tube with metal braided hose + earth wire
connection option NR: round block rectangulair with metal braided hose + earth wire for diameter 16 mm
connection option O: + plug eg. KO 300 16A 250V
connection option Q: + socket eg. KO110/T200 10A/250V available as well with satety stirrup
connection option S: with steel or brass screw in nipple for fastening or as disassembly kit
Cartridge Heater with stop ring
Cartridge Heater with PAF fastening clip
Cartridge Heater with base plate
Cartridge Heater with stuc

Ground

welded
