ZAK aluminium compact Band Heaters

ZAK

Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

APPLICATIONS

ZAK aluminium compact Band Heaters are used with machinery and tools of the polymer processing industry as well as with other devices with uniform heat demand.

  • closed/melt dense construction
  • shape fulfilling contact with superior geometry
  • perfect heat transfer as well with several holes and cut outs
  • energy efficient

Options

  • various dimensions and connection versions
  • other voltage, single or multi-phase, star or delta connection
  • with holes and/or thermocouple bridges
  • additional cut outs
  • other clamp gap
  • multi part construction or segment heaters
  • as mandrel Heater (heating to the outside)
  • with warning sign – “Attention – hot surface”
  • with disc spring lock
  • up to 450°C
    operating temperature
  • about11mm
    wall thickness

ZAK Band Heater

Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

Connection

  • different connection options possible
    (cable connection axial, radial or tangential)

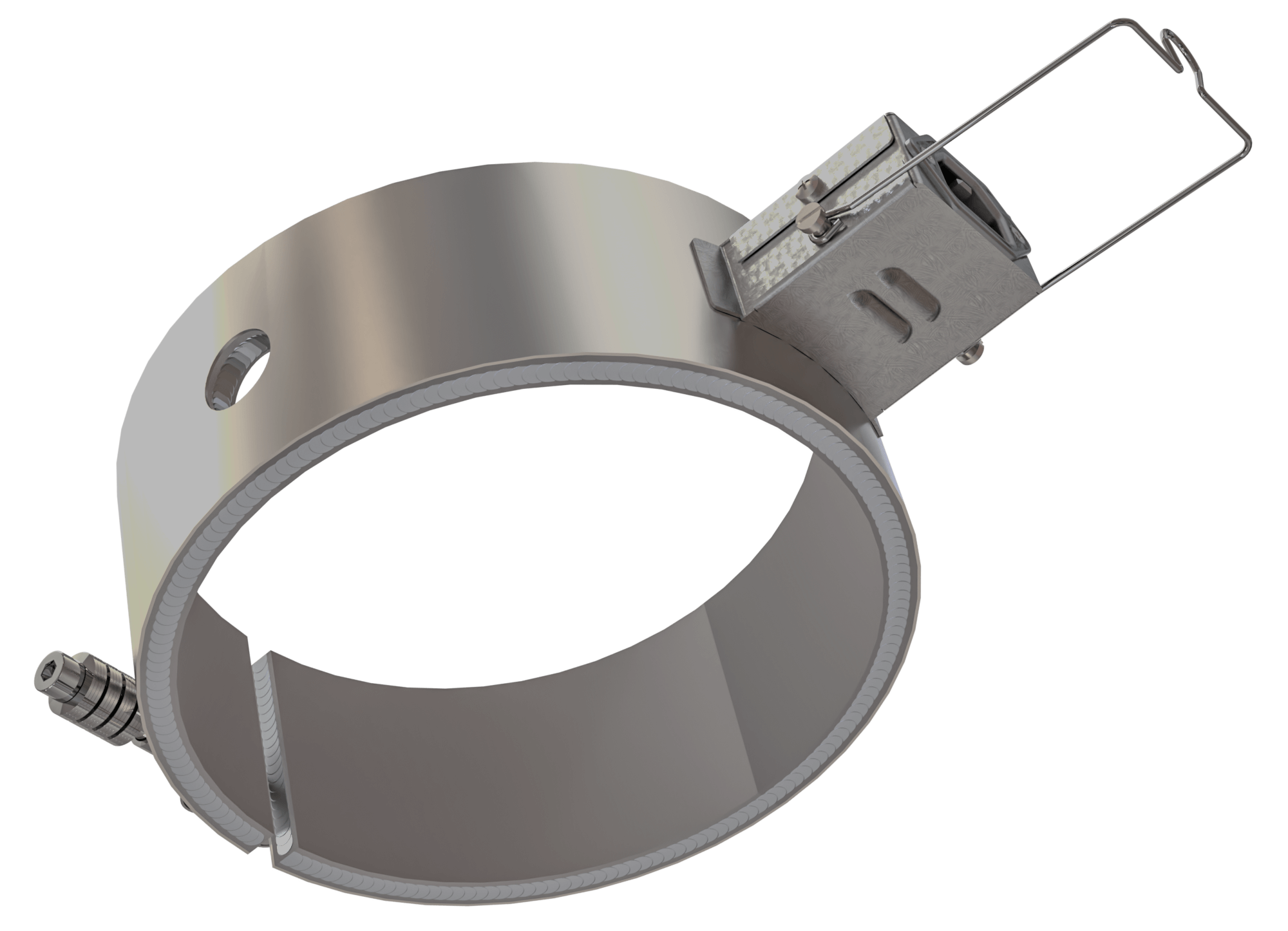

Holes and cut outs

  • with holes and/or thermocouple bridges
  • additional cut outs
  • with thermocouple (with/without potential) or resistance sensor
type minimum dimensions type maximum dimensions
  diameter length   diameter¹ length
ZAK 80mm 40mm ZAK 500mm 400mm
¹ larger diameters on request



Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

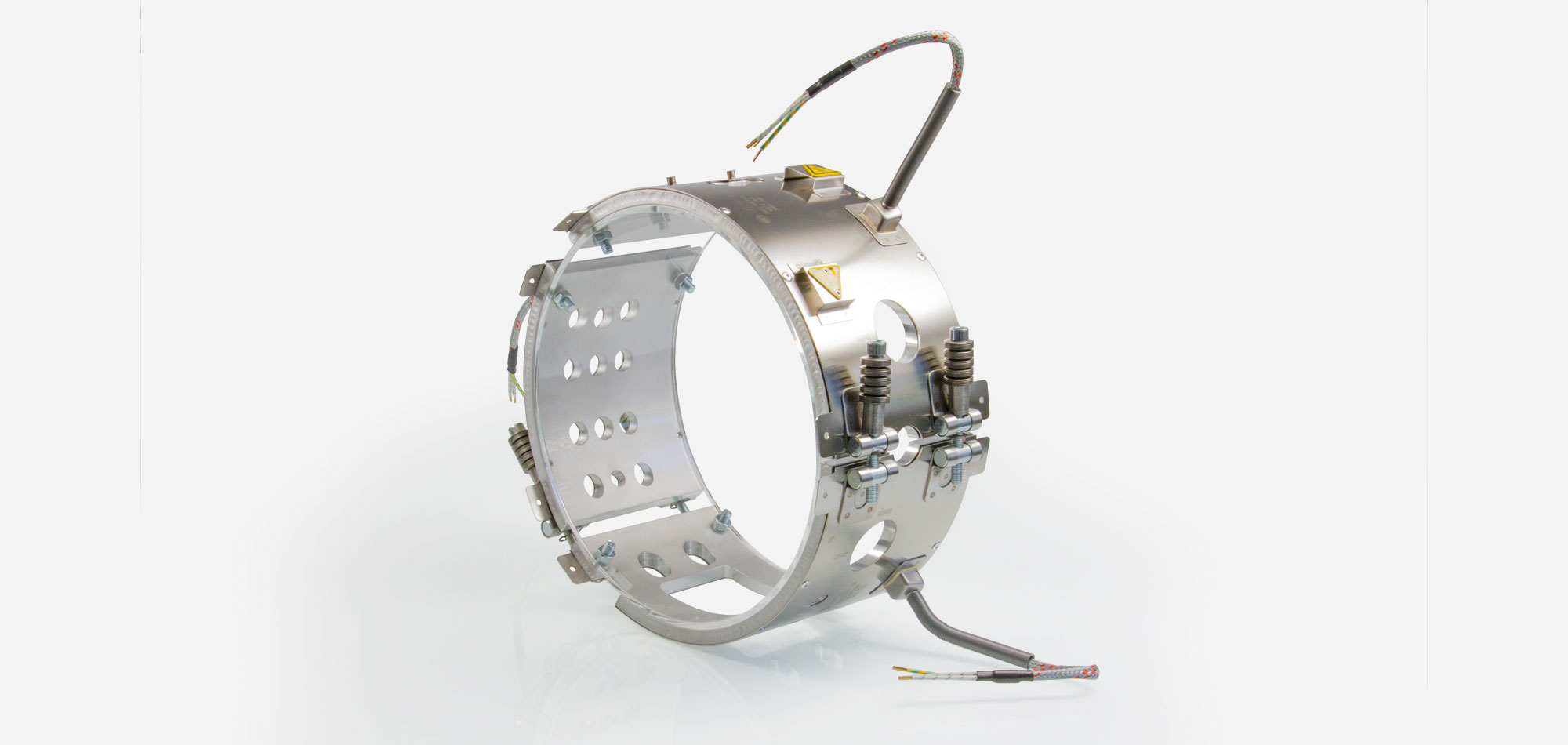

Mass filter heating (viscometer) with plane-parallel holes and cutouts
Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

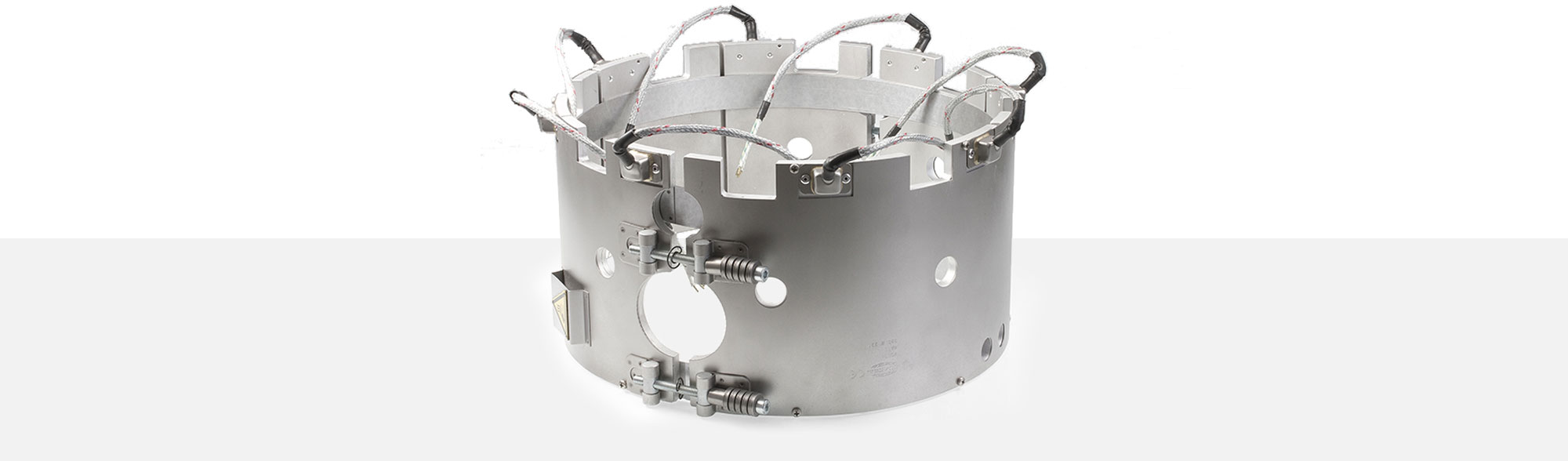

Mass filter heating (viscometer) with hinged segment area
Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

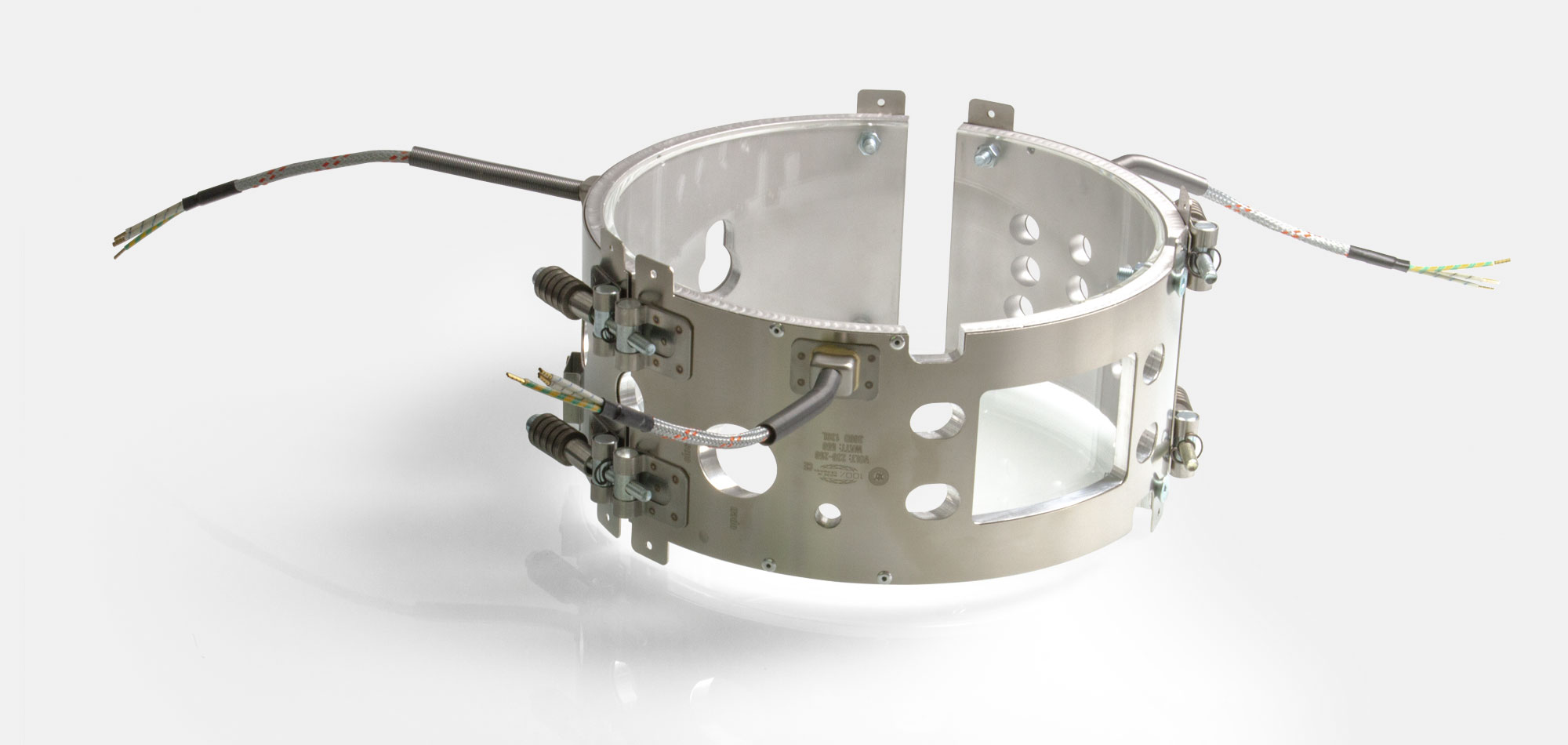

Aluminium compact Band Heater made of 2 halves with oval holes
Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

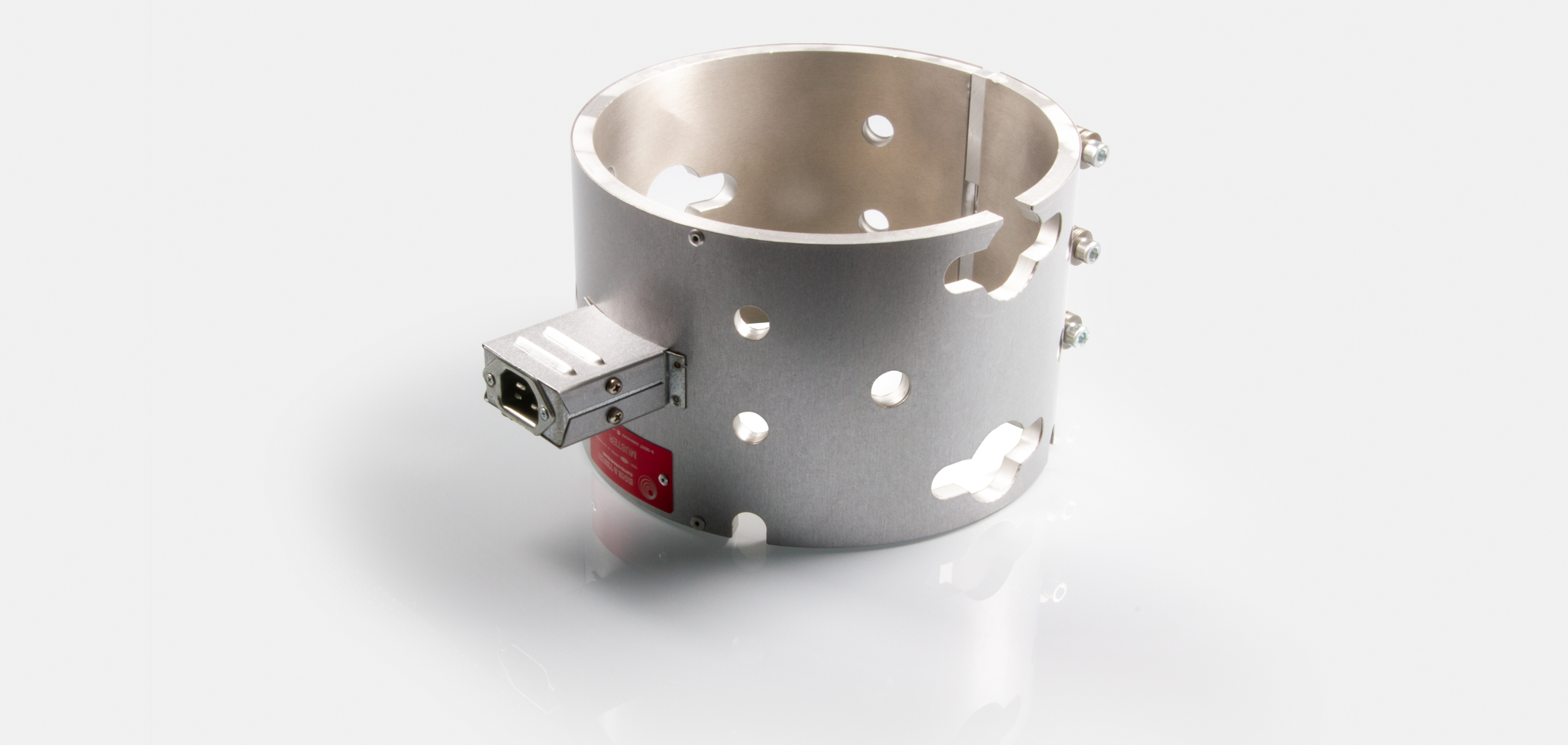

Aluminium compact Band Heater with profile holes and plug-in contact fitting
Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

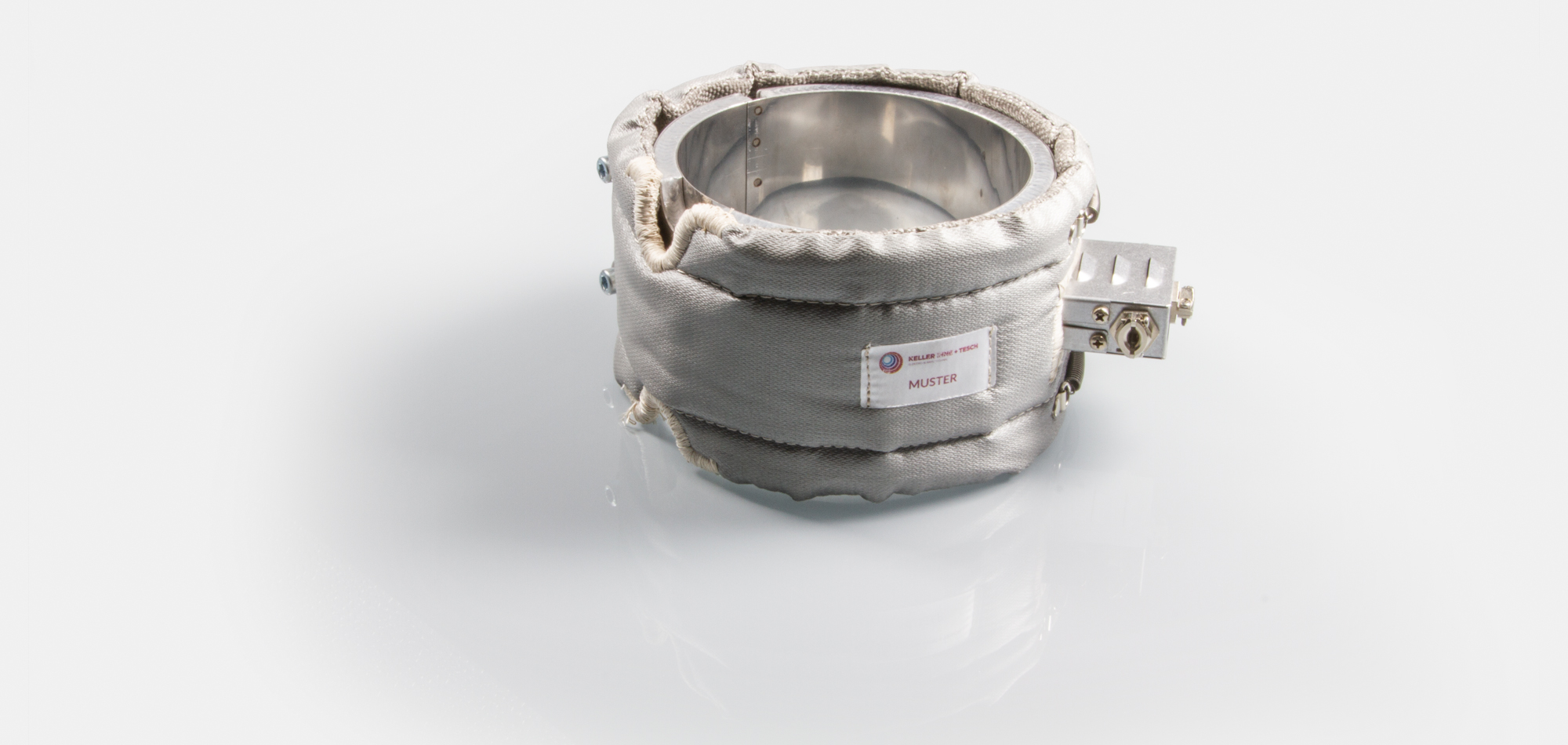

Aluminium compact Band Heater with thermal heat insulation jackets for external insulation
Band Heater , temperatures up to 450°C, injection molding, extrusion, energy-efficient design, homogeneous heat flow, holes, cutouts, integrated thermocouple, shape fulfilling contact

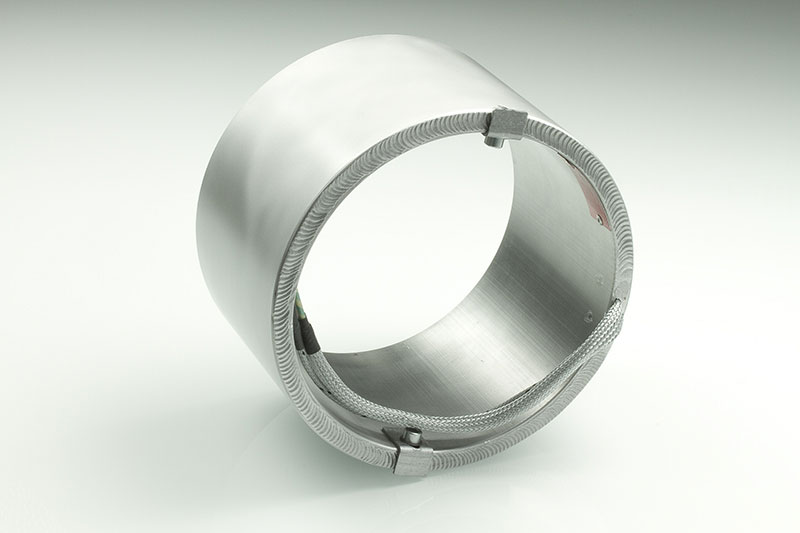

Mandrel Heater aluminum compact with front side connection for pipe extrusion
