BAND HEATERS

M/MC

High performance Band Heater , temperatures up to 450°C/550°C, injection molding, extrusion, holes, cutouts, integrated thermocouple, no storage effect, responsive, mineral insulated

APPLICATIONS

M/MC high performance Band Heaters are used at injection moulding and extrusion machinery as well as for other devices with superior polymer processing.

  • operating temperatures up to 550 °C
  • reaction fast with temperature modification
  • no storage effect

Options

  • various dimensions and connection versions
  • other voltage, single or multi-phase, star or delta connection
  • with holes and/or thermocouple bridges
  • additional cut outs
  • with integral Thermocouple (grounded or not grounded) or Resistance Sensor
  • other clamp gap
  • multi part construction or segment heaters
  • with warning sign – “Attention – hot surface”
  • with disc spring lock
  • up to 450°C
    operating temperature M
  • up to 550°C
    operating temperature MC
  • about 5-7mm
    wall thickness

M/MC Band Heater

High performance Band Heater , temperatures up to 450°C/550°C, injection molding, extrusion, holes, cutouts, integrated thermocouple, no storage effect, responsive, mineral insulated

Connection

  • different connection options possible
    (cable connection axial, radial or tangential)

Holes and cut outs

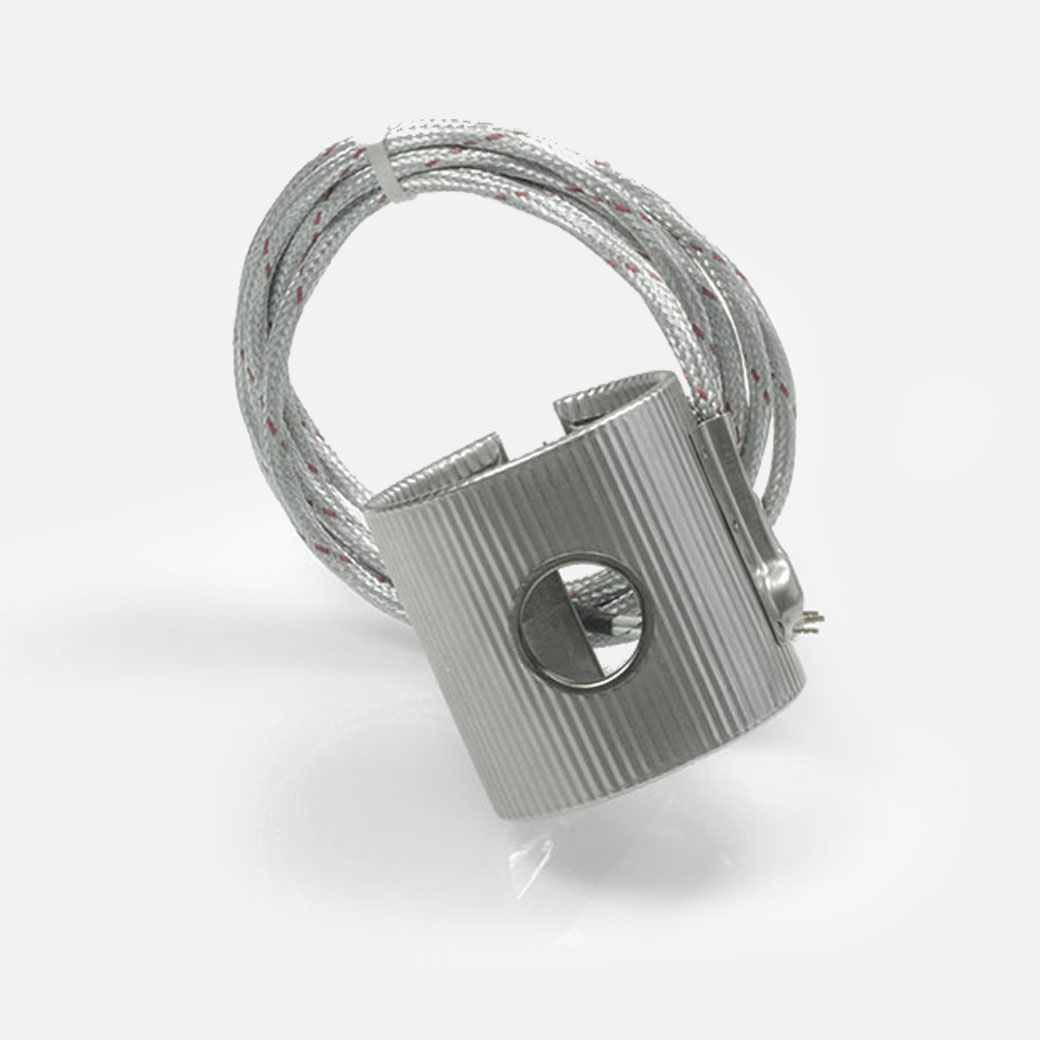

  • with holes and/or thermocouple bridges
  • additional cut outs
  • with thermocouple (with/without potential) or resistance sensor
type minimum dimensions type maximum dimensions
  diameter length   diameter¹ length
M 65mm 38mm M 400mm 250mm
MC 50mm 38mm MC 250mm 60mm
¹ larger diameters on request



High performance Band Heater , temperatures up to 450°C/550°C, injection molding, extrusion, holes, cutouts, integrated thermocouple, no storage effect, responsive, mineral insulated

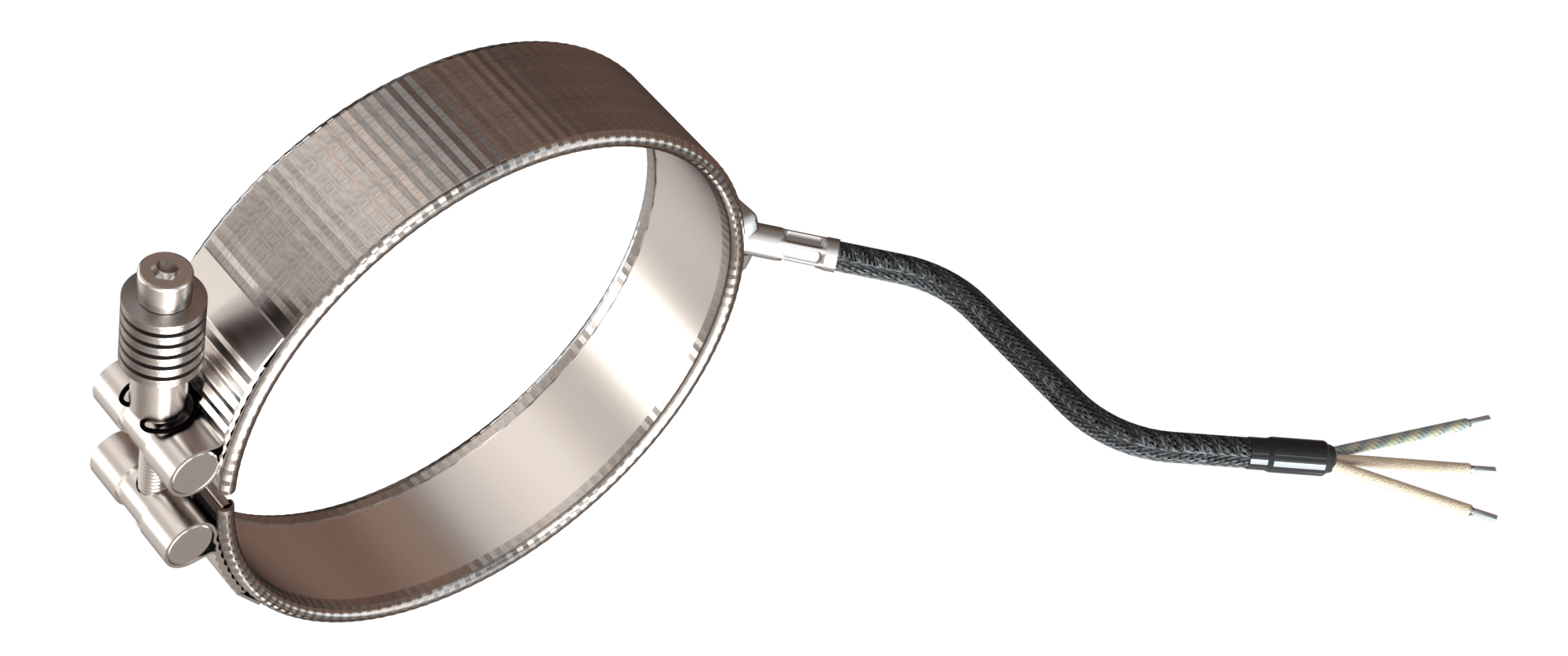

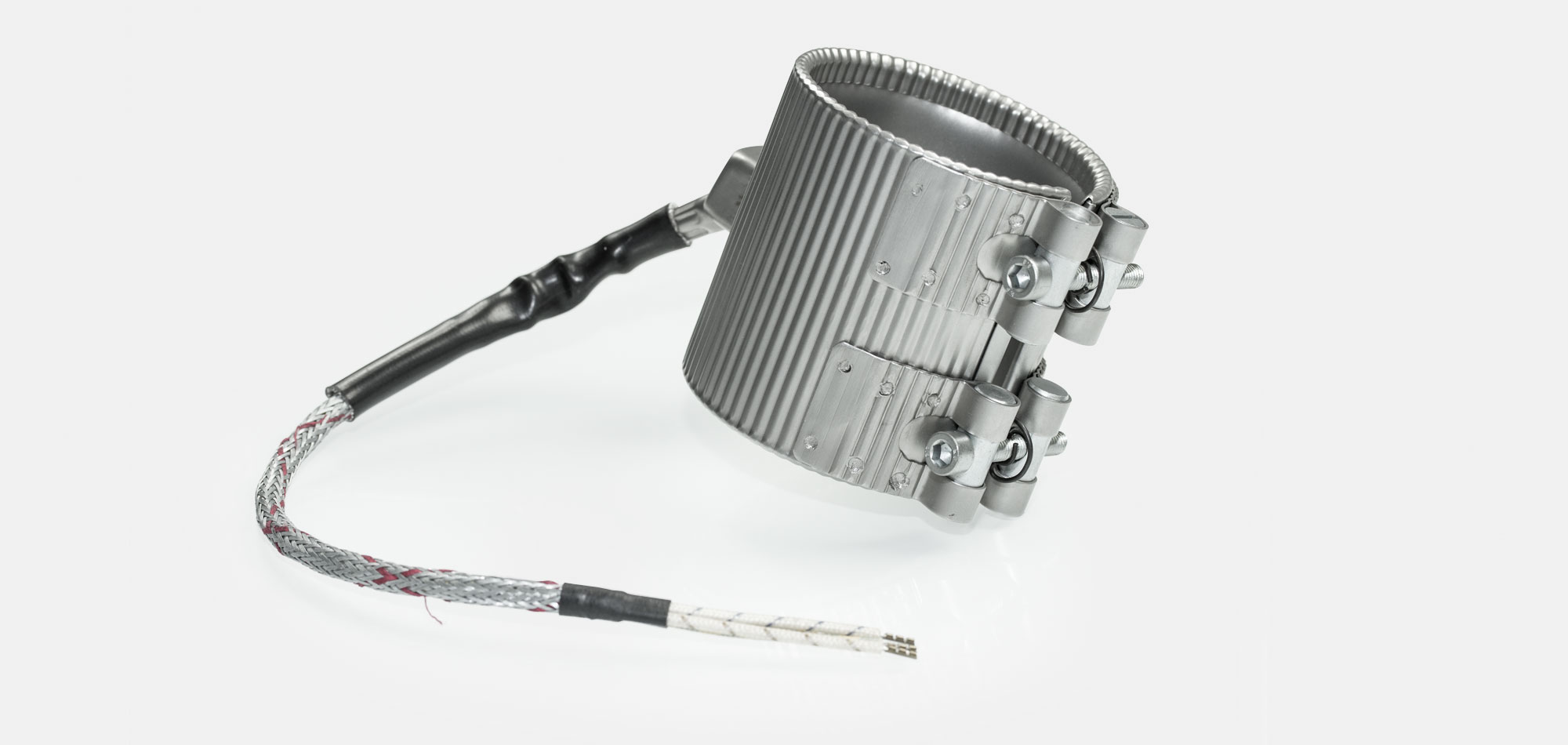

High performance Band Heater with pressure spring lock and clamp connection
High performance Band Heater , temperatures up to 450°C/550°C, injection molding, extrusion, holes, cutouts, integrated thermocouple, no storage effect, responsive, mineral insulated

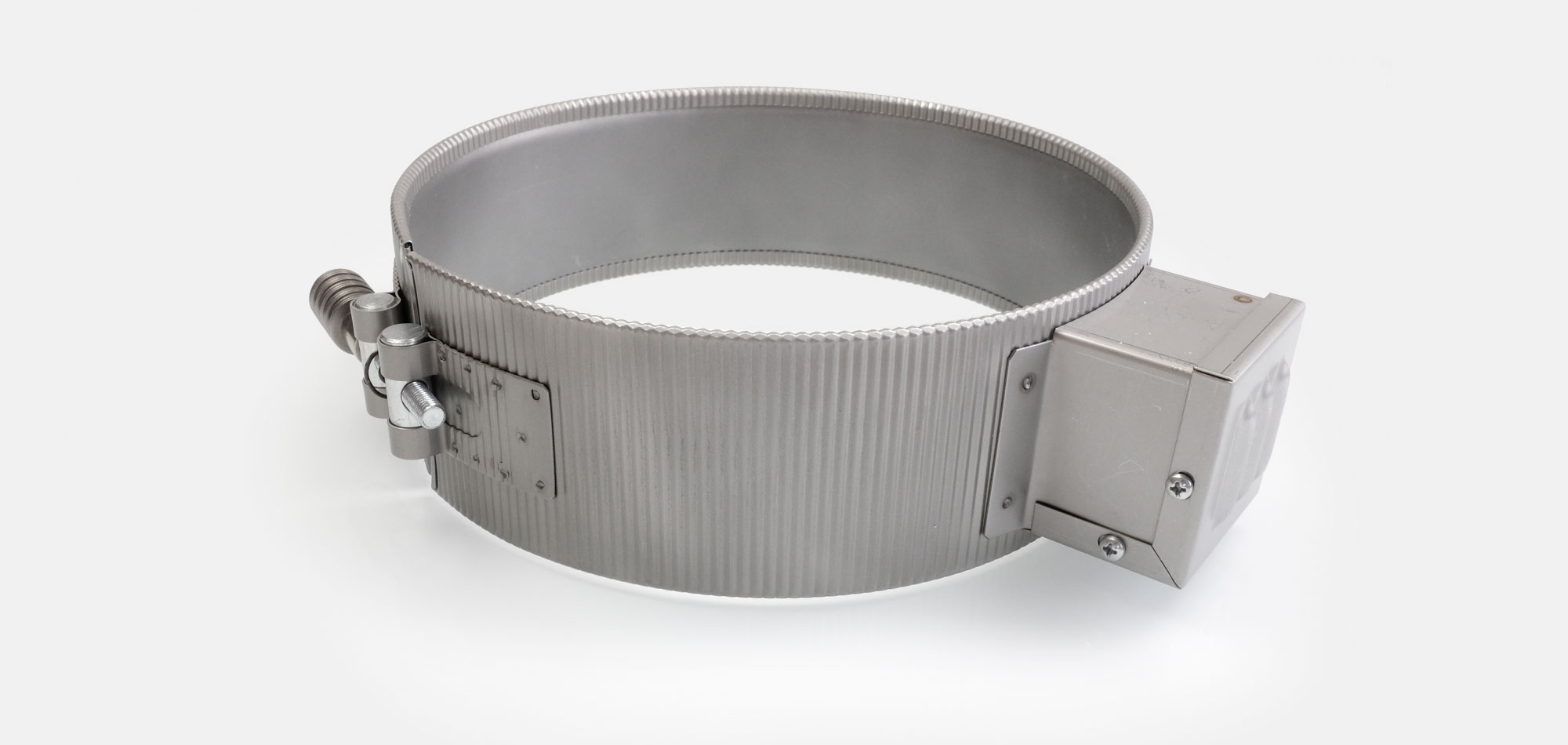

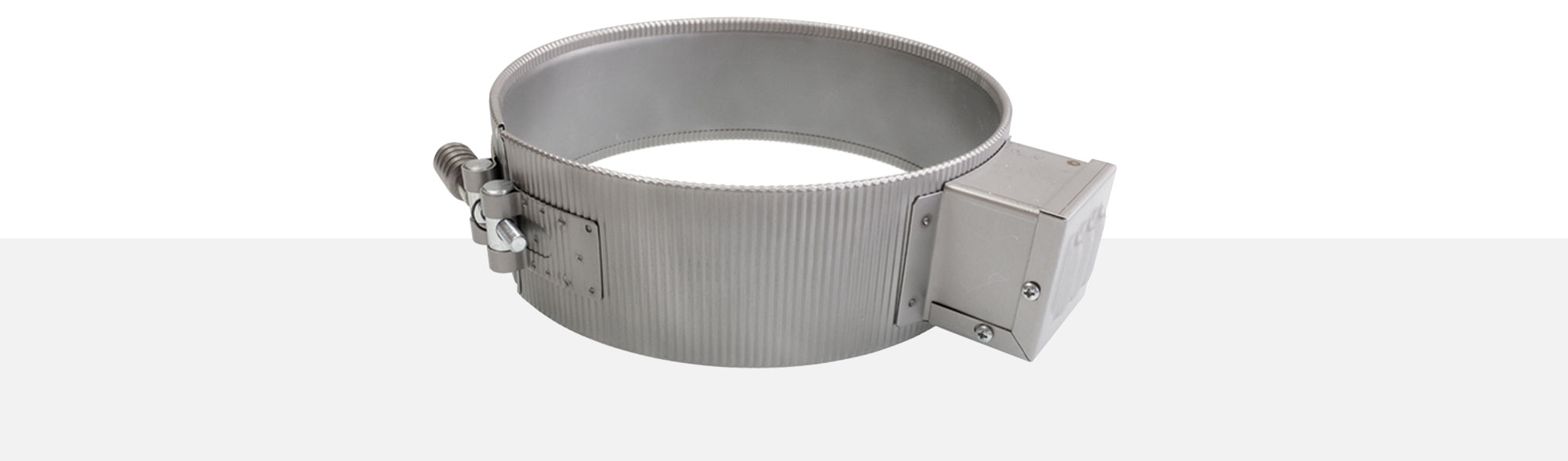

High performance Band Heater with direct connection
High performance Band Heater , temperatures up to 450°C/550°C, injection molding, extrusion, holes, cutouts, integrated thermocouple, no storage effect, responsive, mineral insulated

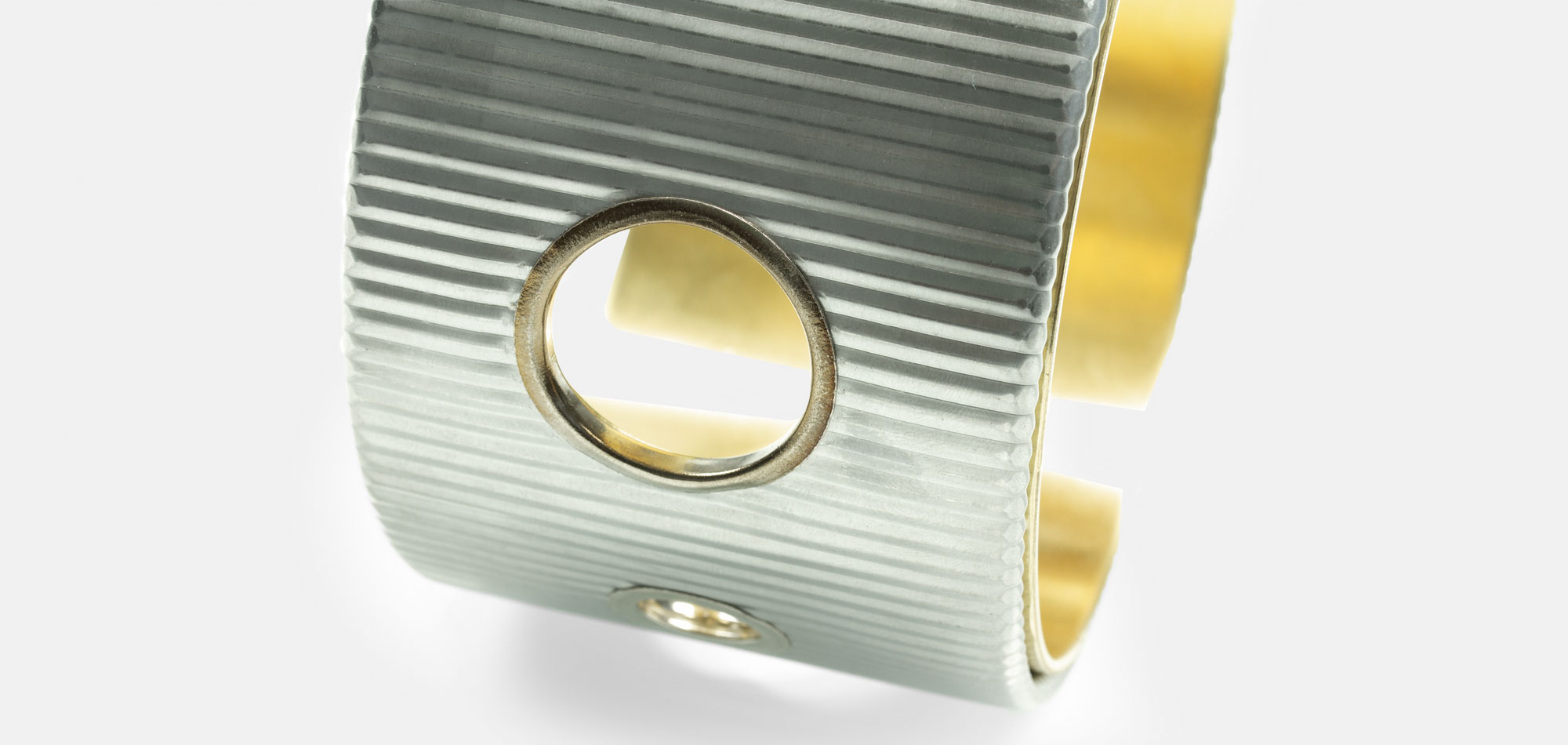

High performance Band Heater with hole and brass plate
